CONVERTER MODE APPLICATION
3-9
2. Using an in-house sound system (continued)
3. Operation
When Radio A1 transmits, or the IP phone in area B (Extension No.: 401) dials 32, the call is output through the
external audio device.
• All radios in the area must have the same settings.
[Making an announcement from Radio A1]
q
Area A
Radio A1's operator: While holding down [PTT],
say something (example: “Test, Test, Test”) into the
microphone at a normal voice level.
• The [TRX1] and [EXT1] ports are internally connected.
w
Area A
The BGM fades out and the announcement made by
Radio A1’s operator is output to the external AMP,
followed by the “Broadcast start sound.”
e
Area A
When the announcement is finished, or no audio
signal is detected for 5 seconds (default), the BGM
fades in, after the “Broadcast end sound.”
[Making an announcement from the IP phone]
q
Area B
Person on the IP telephone: Take the handset off
the hook, dial “32.”
w
Area A
The call from the IP phone is received by the IP line
whose number is “32.”
e
Area A
The external audio device which is connected to
[EXT1] fades out the BGM, and the announce-
ment is output to the external AMP, followed by the
“Broadcast start sound”.
e
Area A/B
Person on the IP telephone: When putting the
handset on, or no audio signal is detected for 5 sec-
onds (default), the BGM fades in, after the “Broad-
cast end sound” and preset time period.
Area AArea B

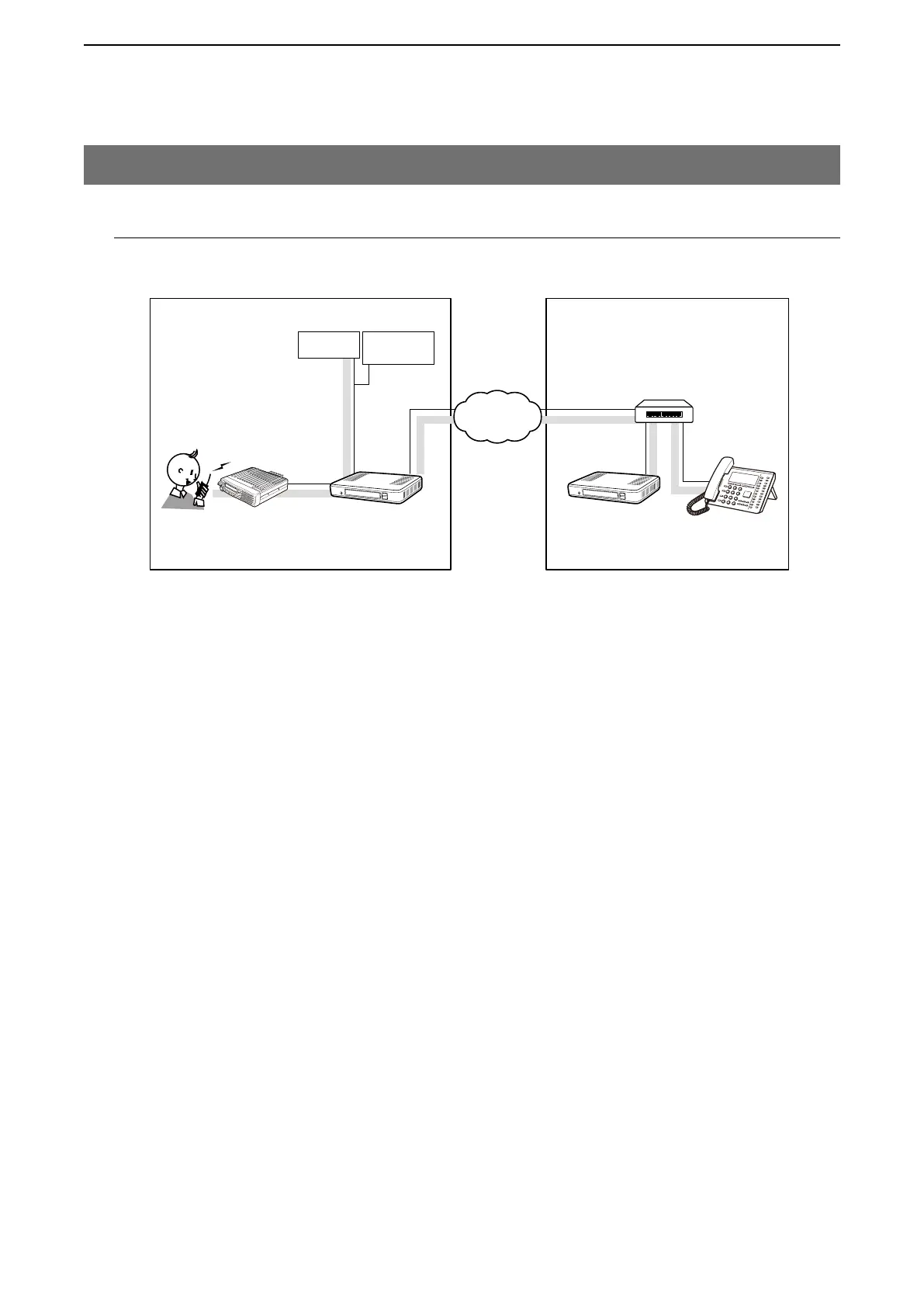

An example of an in-house audiosystem
