Icom VE-PG3 - Operating in the NXDN Conventional Mode

2
BRIDGE MODE APPLICATION
2-11
4. Operating in the NXDN Conventional mode
The IC-FR5000 series can be connected with the VE-PG3 via Ethernet cable (IP network) using the UC-FR5000
network board.
• In the instruction, the example of the communication as illustrated below, is used.
• The optional CT-24 digital voice converter is required.
1. UC-FR5000 configuration
Access the UC-FR5000 setting screen, and set the items as shown below.
P
0
P
1
P
2
P
3
P
4
P
0
P
1
P
2
P
3
P
4
Radio B1
Radio B2
VE-PG3
(192.168.0.2)
[D-TRX1] [D-TRX2]
[LAN]
[TRX1]
ID 1 ID 2
Radio C1 Radio C2
ID 3 ID 4
CT-24
[USB]
HUB
IC-FR5000
(192.168.0.3)
IC-FR5000
(192.168.0.4)
Repeater C
Repeater B
Radio A
Radio A1
Radio A2

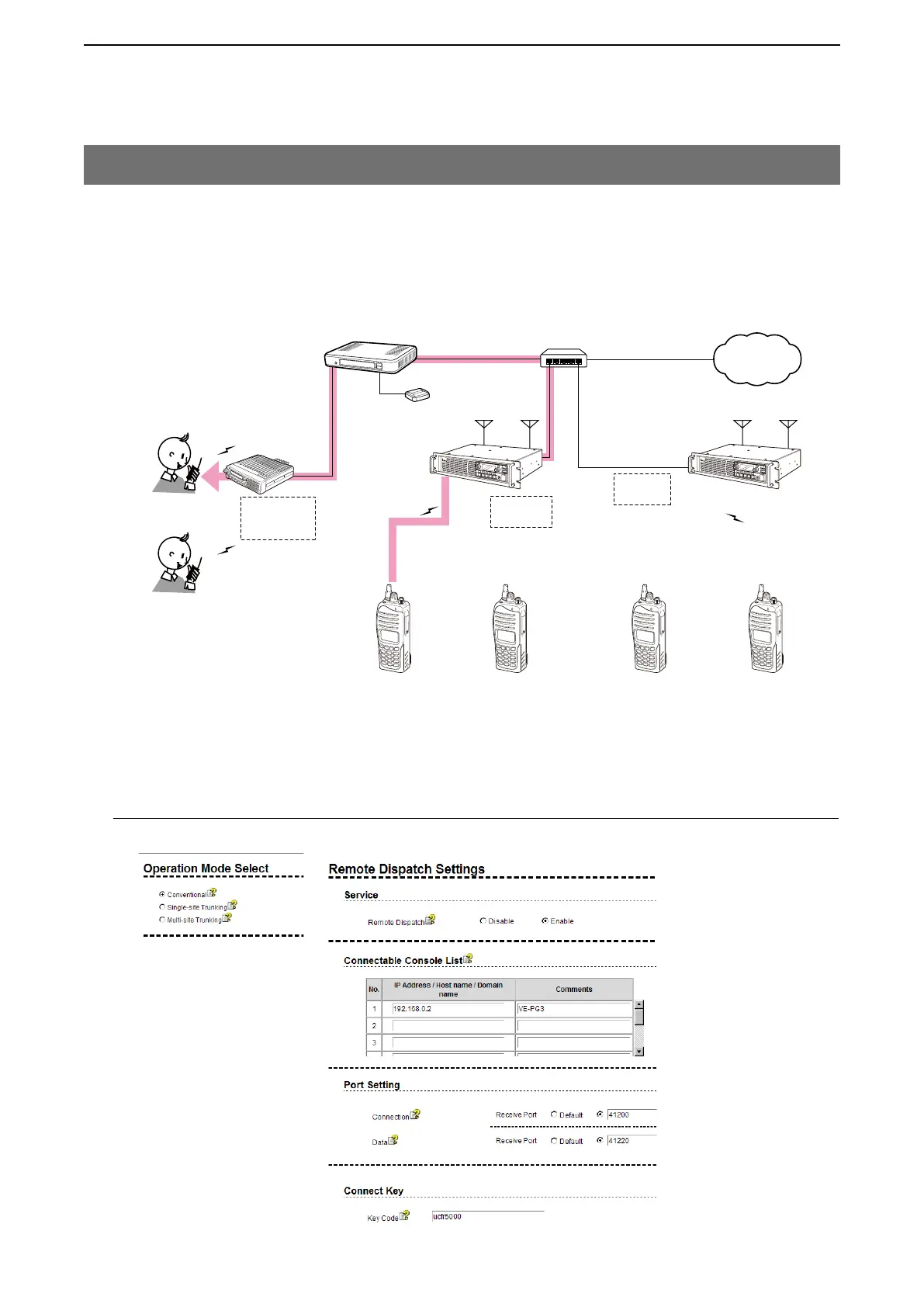

An example of digital transceiver communication in the Conventional mode
IP
Network
Port No.:
21504
Port No.:
21506
ID: 8
Port No.:
21500
Destination
port No.
21502
