6.Operating in the NXDN Trunking mode (continued)
2. VE-PG3 configuration

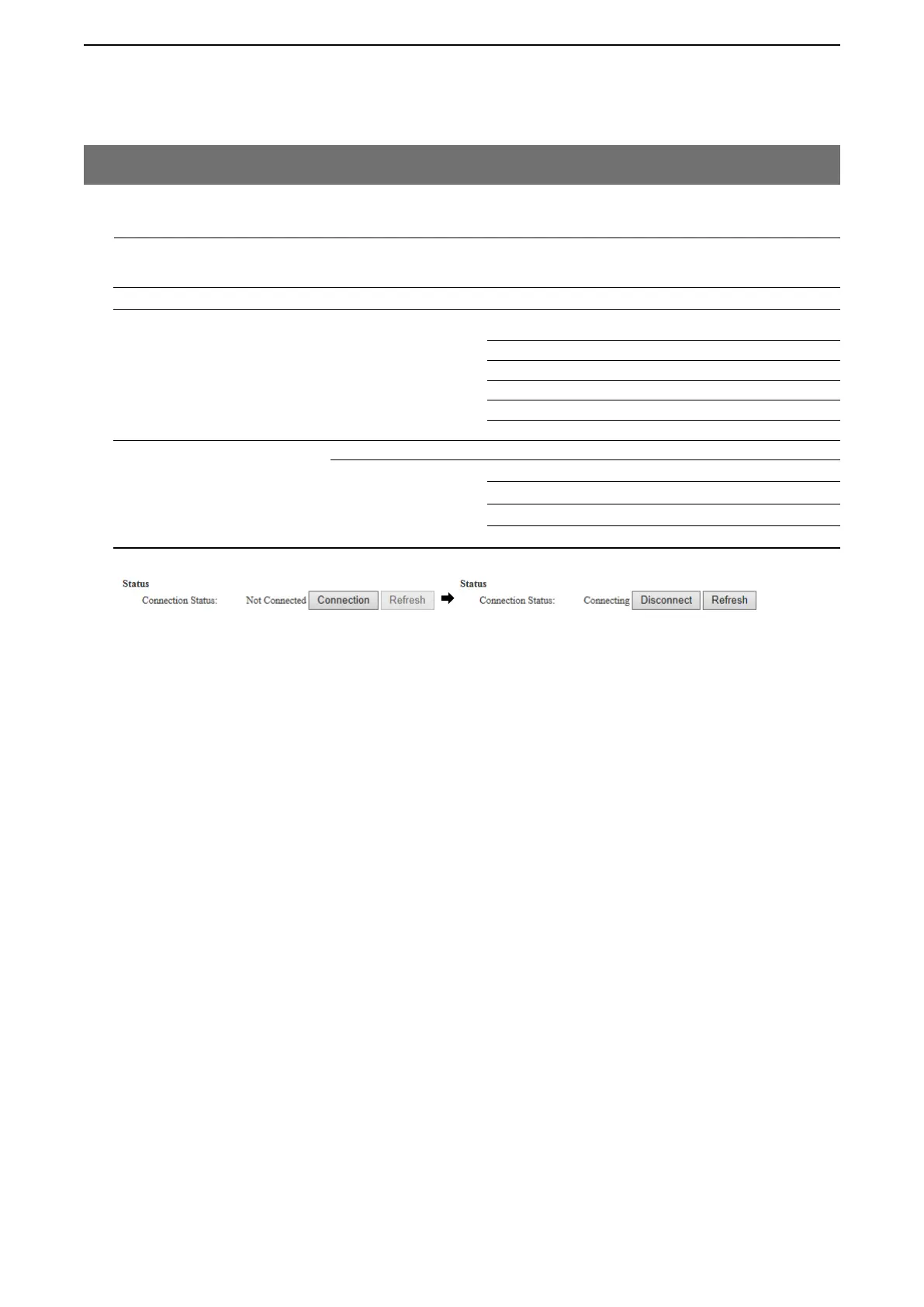

Access the VE-PG3 setting screen, and set the items as shown below.
Menu Item Setting Screen Setting Item Item Name Value
Extension
Connect
Extension Connect Extension Extension Number 201
Port Type Digital Transceiver 1 (D-TRX1)
Extension Number 401
Port Type SIP Phone (KX-UT Series)
Password (Enter a password)
MAC Address
(MAC address of the KX-UT series IP phone)
Port Settings
Digital Transceiver 1 (D-TRX1)
Transceiver Model Mode NXDN Trunking
Digital Transceiver Connection Repeater Address UC-FR5000’s IP address
Connect Key UR-FR5000’s key code
Prefix ID 1
Unit ID 200
• After the configuration, click [Connection] to connect to the network.
