6
CONVERTER MODE SETTING SCREEN
6-5

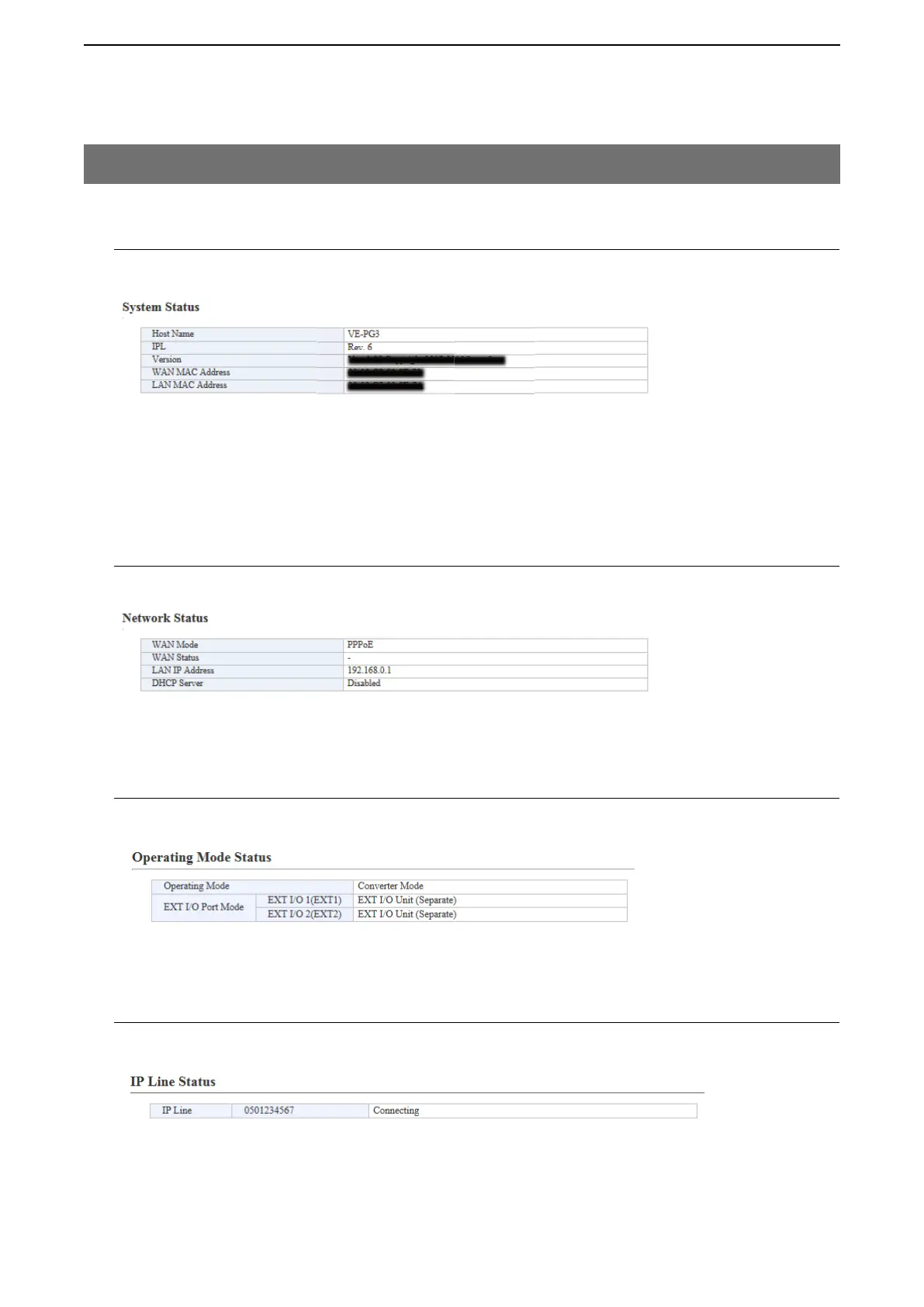

M System Status
Displays the VE-PG3’s version information and WAN MAC and LAN MAC addresses.
M Network Status
Displays the VE-PG3’s network information.
M Operating Mode Status
Displays the operating mode status of the [EXT1] and [EXT2] ports.
• The WAN MAC address is a unique 12 digit number and is printed on the serial number label on the VE-PG3’s
bottom panel.
2. [TOP] Menu
[TOP]
M IP Line Status
Displays the communication status with a VoIP router.
• When [SIP Server] is configured on the [IP Line] screen in the [V/RoIP] menu, the IP phone number and status
are displayed.
(This is an example.)
To Next Page
