ANALOG TELEPHONE APPLICATION
4-2
Telephone function
The VE-PG3 has two PSTN line connectors and an analog telephone set connector. Radio user can call an analog
telephone, and radio user from an analog telephone.
•
In the instruction, the example of the communication as illustrated below, is used.
1. Configuration
Access the VE-PG3 setting screen, and set the items as shown below.
Menu item Setting screen Setting item Item name Value
Operating Mode Operating Mode Operating Mode Operating Mode Converter
Port Settings Transceiver 1 (TRX1) Transceiver Model Transceiver Model IC-F5060/F6060
DTMF Call Setting Use DTMF Call Enable
V/RoIP LINE1 PSTN Contract Line Number (Ex. 2345-6789)
Extension Connect Extension Connect Extension Extension Number (Ex. 101)
Port Type Transceiver 1 (TRX1)
Outgoing Line Priority LINE
Outgoing Line (LINE) (Ex. 2345-6789)
Special Number Special Number OFF-hook Sending “ * ” (DTMF tone)
VE-PG3
[LINE1/2][TRX1]
Analog Telephone
Analog Telephone
PSTN
(Tel. No.: 1234-5678)
(Extension No.: 101)
Tel.No.2345-6789
[PHONE]
Transceiver A
DTMF Tone
Transceiver A1

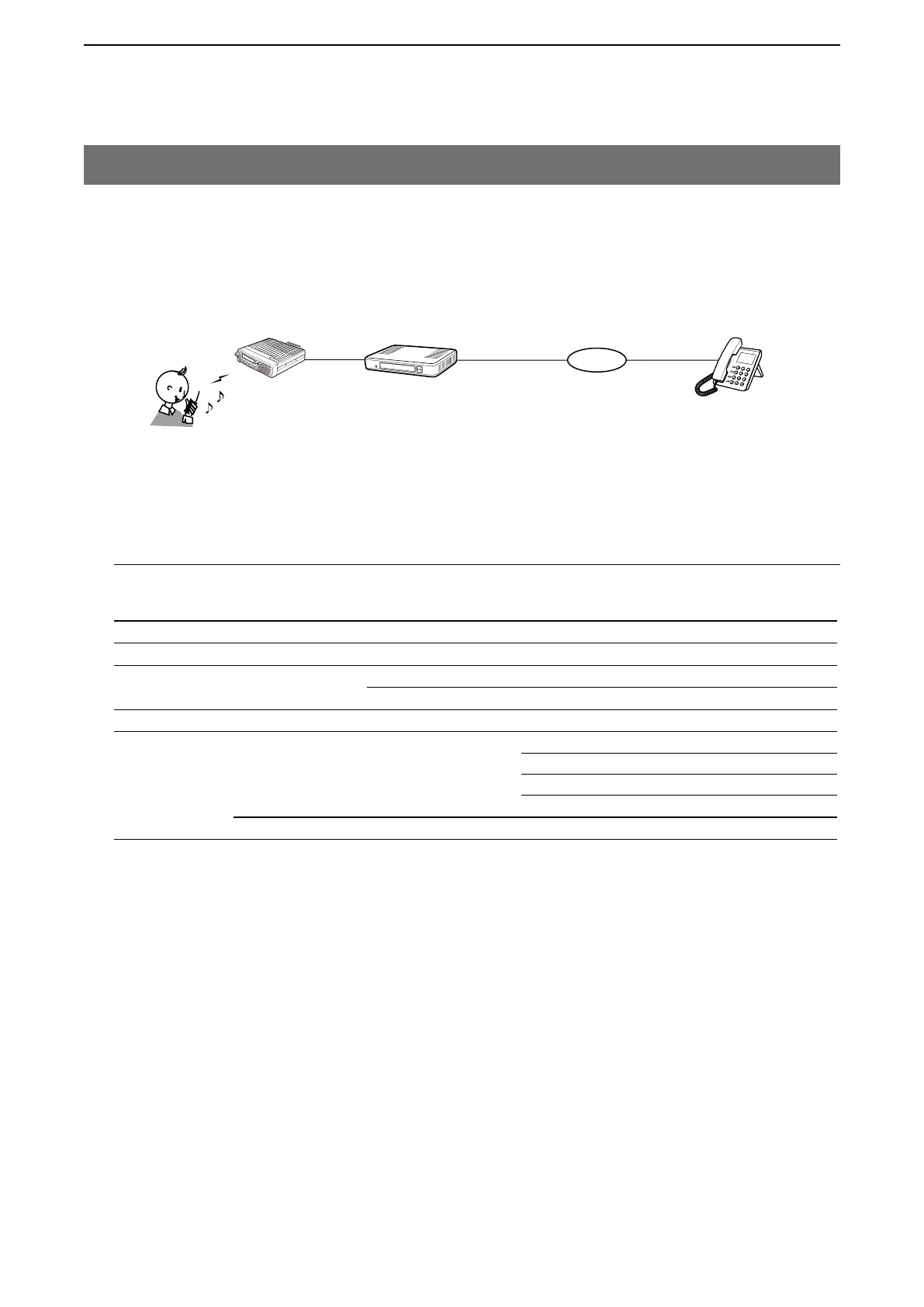

An example of a telephone communication
