BRIDGE MODE SETTING SCREEN
5-18
5. [Router] Menu

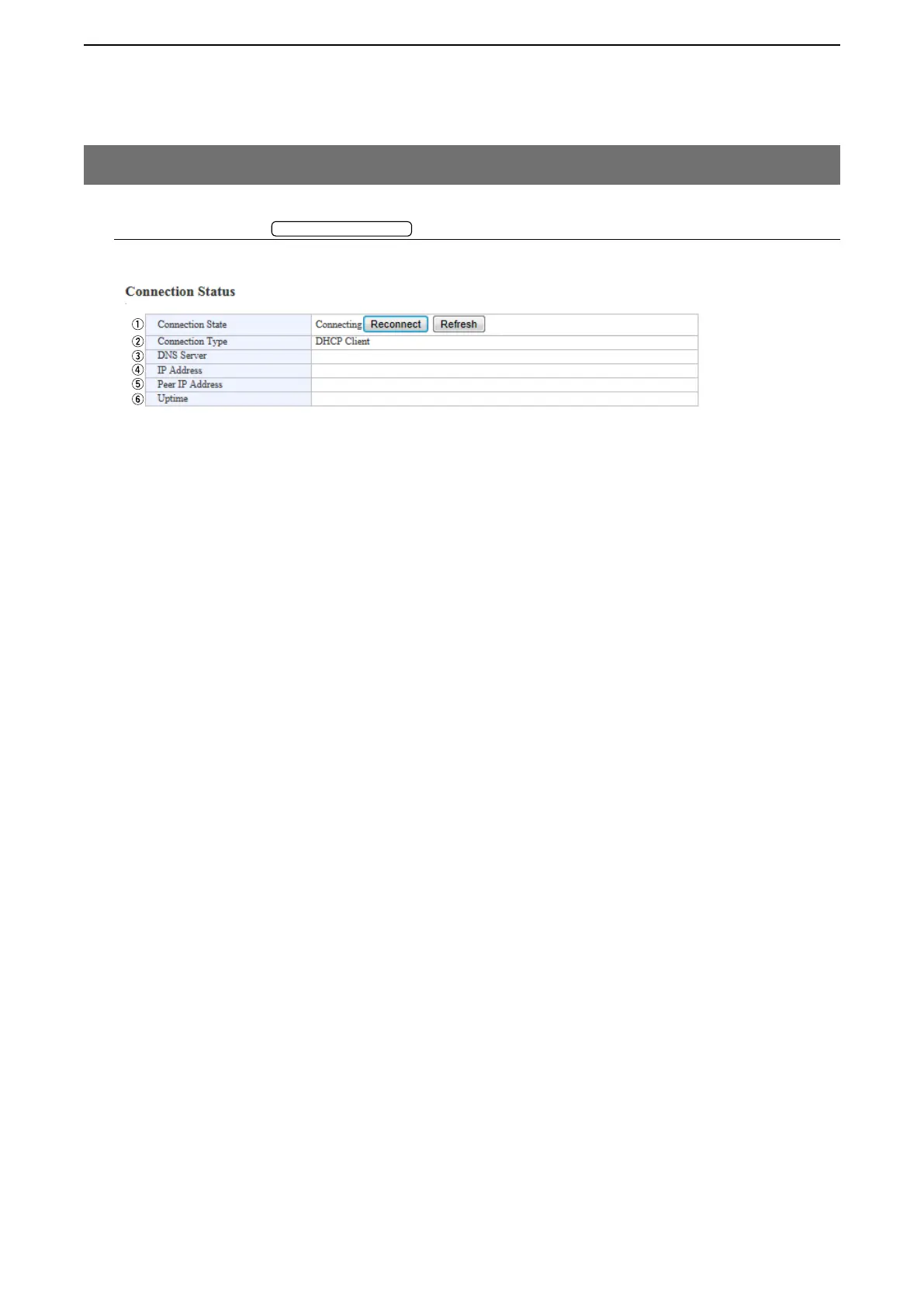

M Connection Status
DHCP client
Displays the WAN connection status.
q Connection State ………… Displays the WAN connection status.
Reconnect: Click to re-obtain the IP address and reconnect to the net-
work.
Refresh: Click to refresh the screen.
Status:
"Unplugged": Linkdown. Cable not connected.
"Connecting": Attempting to connect. DHCP IP is not obtained yet.
"Connected": Connection established. DHCP IP has been obtained.
w Connection Type …………
Displays the WAN connection type.
e DNS Server ……………… Displays the DNS server's IP address.
r IP Address …………………
Displays the VE-PG3's WAN IP address
obtained by the DHCP
.
t Peer IP Address ………… Displays the gateway IP address obtained by the DHCP.
y Uptime …………………… Displays the elapsed time the VE-PG3 has been connected to the network.
• Click Refresh to reload.
[Router]–[WAN]
