1. Communication in the Peer to Peer mode
The VE-PG3 can communicate with an IP phone in the Peer to Peer mode.
• Refer to the illustration shown below.
Area AArea B

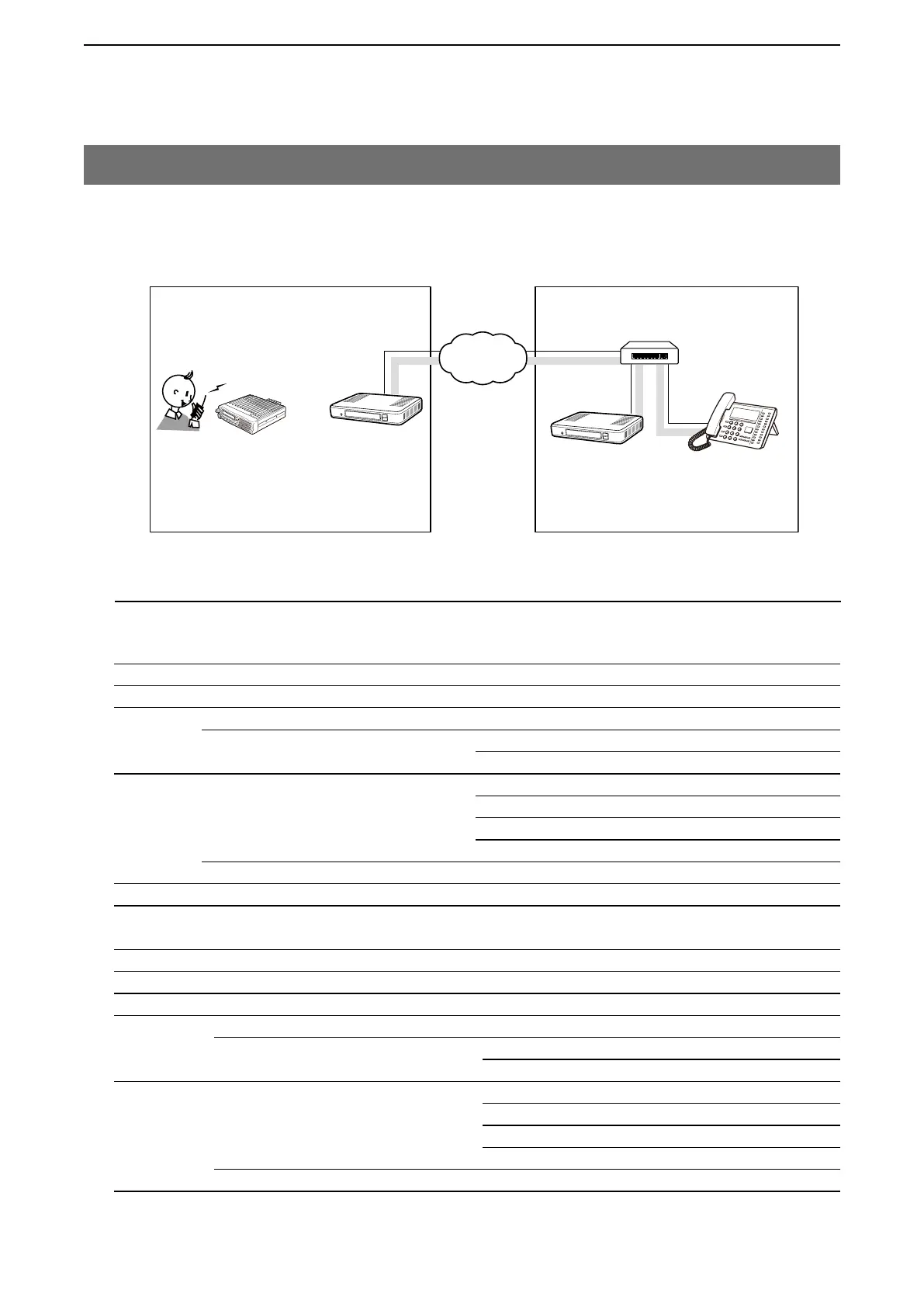

An example of a Peer to Peer connection
Radio A
Radio A1
VE-PG3
(192.168.0.3)
VE-PG3
(192.168.0.2)
[TRX1]
[LAN]
Extension No.
201
SIP URI
sip:A01_vepg3@192.168.0.2
(A01_vepg3)
SIP URI
sip:B01_vepg3@192.168.0.3
(B01_vepg3)
Extension No.
401
HUB
IP
Network
IP telephone
(KX-UT Series)
VE-PG3 (Area A)
VE-PG3 (Area B)
Menu Item Setting Screen Setting Item Item Name Value
Operating Mode Operating Mode Operating Mode Operating Mode Converter
V/RoIP Peer to Peer Peer to Peer SIP URI A01_vepg3@192.168.0.2
VoIP Phone Book List of VoIP Phone Book Entries Phone No. 401
SIP URI B01_vepg3@192.168.0.3
Extension
Connect
Extension Connect Extension Extension Number 201
Port Type Transceiver 1 (TRX1)
Outgoing Line (Peer to Peer) A01_vepg3
Default Call Destination Number 401 (From Radio A1 to IP Phone)
Incoming Call V/RoIP Incoming Call Setting Receive Port 201(TRX1)
Port Settings Transceiver 1 (TRX1) Transceiver Model Transceiver Model IC-F5060/F6060
Menu Item Setting Screen Setting Item Item Name Value
Operating Mode Operating Mode Operating Mode Operating Mode Converter
Network DHCP Server DHCP Server DHCP Server: Enable
V/RoIP Peer to Peer Peer to Peer SIP URI B01_vepg3@192.168.0.3
VoIP Phone Book List of VoIP Phone Book Entries Phone No. 201
SIP URI A01_vepg3@192.168.0.2
Extension
Connect
Extension Connect Extension Extension Number 401
Port Type: SIP Phone (KX-UT Series)
Password: (Any)
Outgoing Line (Peer to Peer) B01_vepg3
Incoming Call V/RoIP Incoming Call Setting Receive Port 401 (Incoming Call of B01_vepg3)
1. Configuration
Access the VE-PG3 setting screen, and set the items as shown below.
