6
CONVERTER MODE SETTING SCREEN
6-28
7. [V/RoIP] Menu (continued)
[V/RoIP]–[IP Line]

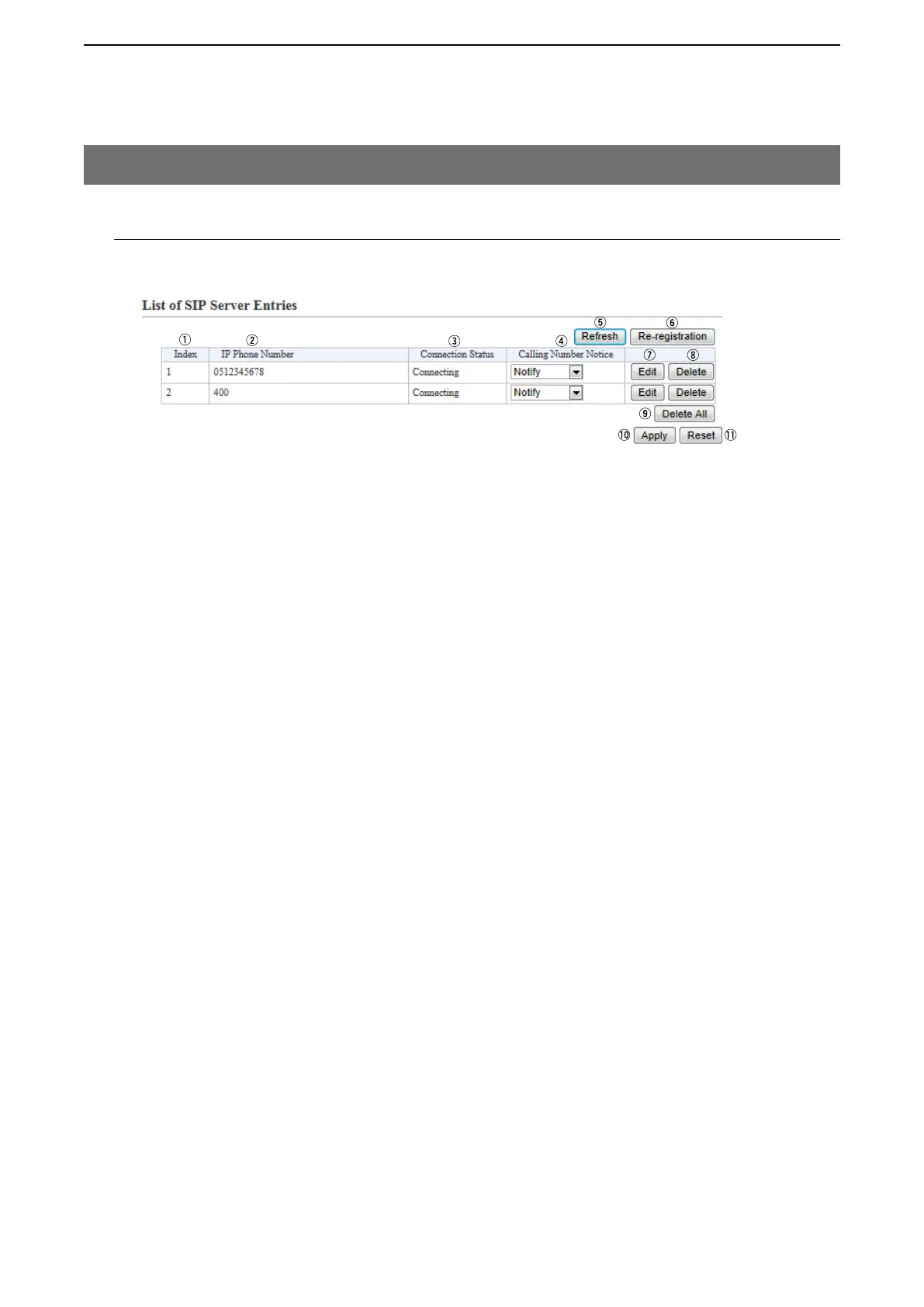

M List of SIP Server Entries
You can edit the SIP server settings on the list.
q Index ……………………… Displays the value set in [SIP Server].
w IP Phone Number ……… Displays the value set in [SIP Server].
e Connection Status ……… The connection status ([Connecting]/[Connection successful]/
[Connection failure]) of the SIP server.
• When "Connecting" doesn't appear, check the registered settings.
r Calling Number Notice … Select "Not Notified" to not notify your IP phone number. (Default: Notify)
t <Refresh> ………………… Click to refresh the screen.
• When "Connectinon successful" doesn't appear, check the registered
settings.
• This is an example.
To Next Page
