Icom VE-PG3 - M DTMF Call

6
CONVERTER MODE SETTING SCREEN
6-89
9. [Port Settings] Menu
!0 PTT-ON Tone …………… Select the DTMF signal (0 to 9, #, *) to control the radio from the SIP phone.
(Default: 0)
• Dialing the callee extension number, and then push the set button to control
the callee radio to transmit.
!1 PTT-OFF Tone …………… Select the DTMF signal (0 to 9, #, *) to control the radio from the SIP phone.
(Default: 0)
• While communicating with a radio, push the set button to control the callee
radio to receive.
q Use DTMF Call …………… Select “Enable” to use the DTMF signaling (0 to 9, # and *). (Default: Disable)
Numbering Timer
w Blank Time Between Digits Select the time period to detect that the last digit has been input. (Default: 5)
• Range: “1” to “10” (seconds)
e OFF-hook Detect Timer … Select the time period to detect the OFF-hook control signal. (Default: 400)
• Range: “0” to “2000” (milliseconds)
r ON-hook Detect Timer … Select the time period to detect the ON-hook control signal. (Default: 400)
• Range: “0” to “2000” (milliseconds)

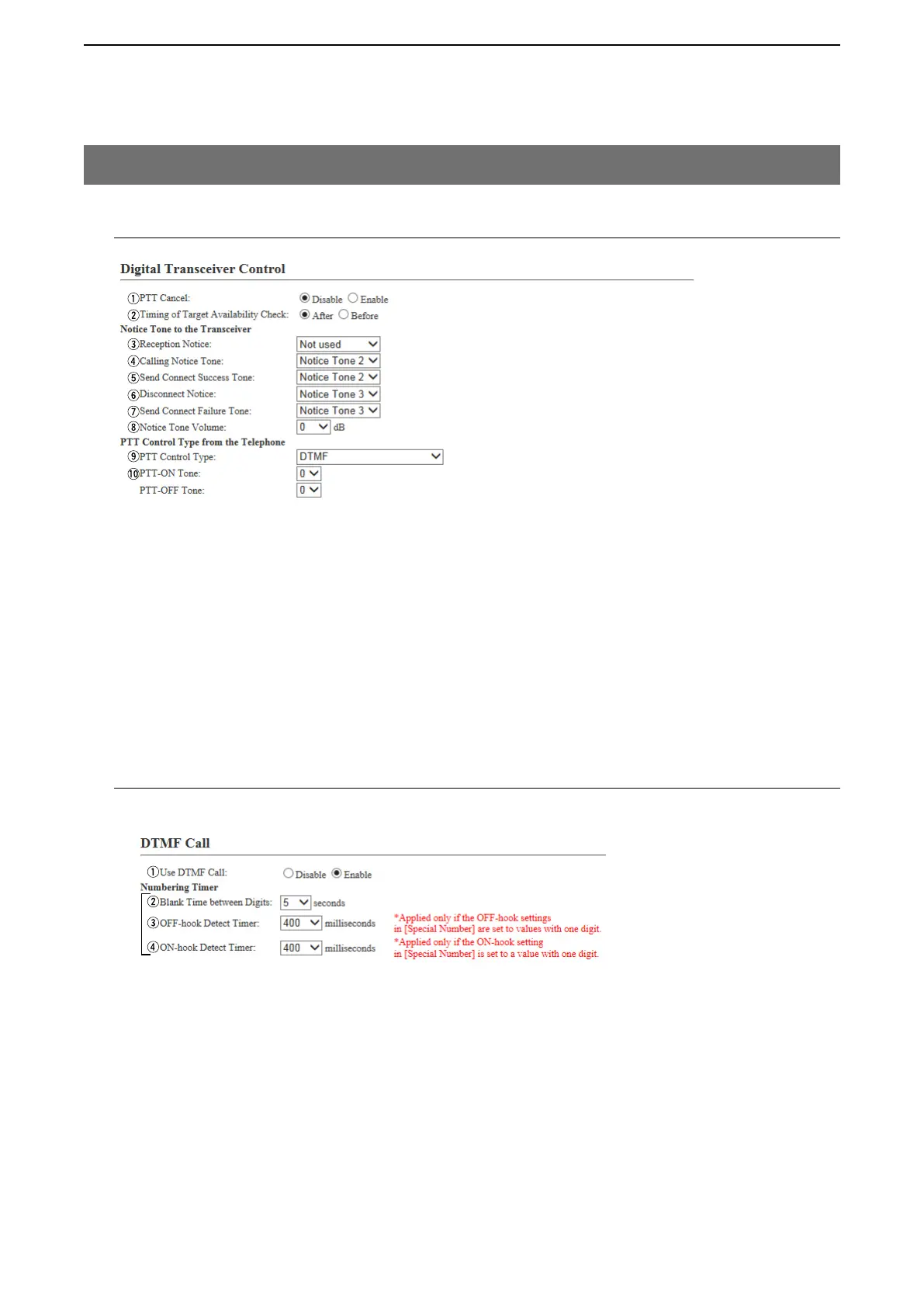

[Port Settings]–[Digital Transceiver1 (D-TRX1)–Digital Transceiver4 (D-TRX4)]
M Digital Transceiver Control (continued)
M DTMF Call
Configure the DTMF call setting.
*: Appears when “Enable” is selected in the [Use DTMF Call] item.
*
!1
