6
CONVERTER MODE SETTING SCREEN
6-88
9. [Port Settings] Menu

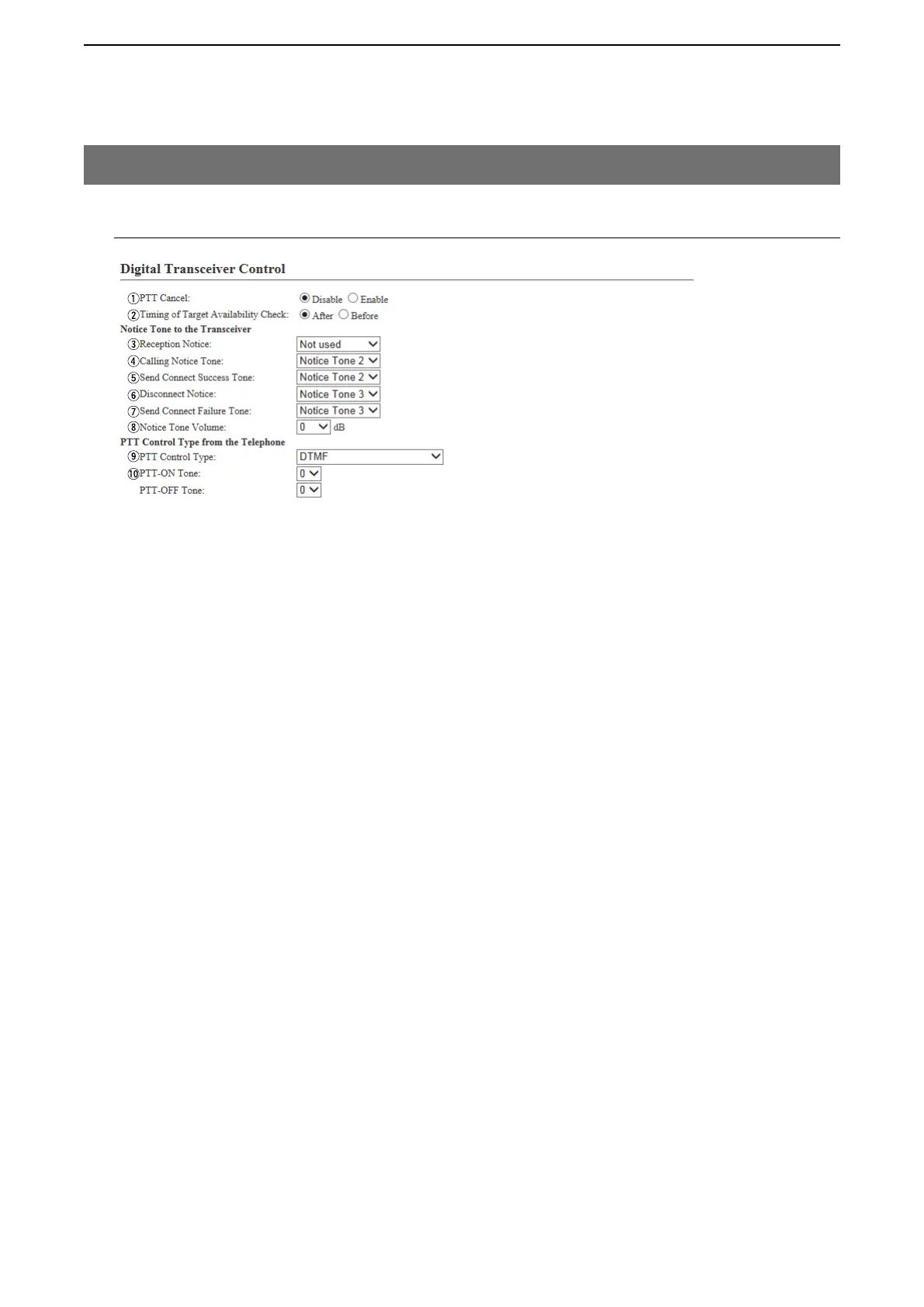

M Digital Transceiver Control (continued)
u Send Connect Failure Tone
Select “Tone 1” to “Tone 3” to notify that the calling IP phone is unavailable.
(Default: Notice Tone 3)
i Notice Tone Volume ……… Select the tone level for above items. (Default: 0)
Range: “+6” to “–12” (dB)
PTT Control Type from the Telephone
o PTT Control Type ………… Select the signal type to control TX. (Default: VOX)
• VOX: The communication route is connected when
an audio input is detected.
• If [VOX] is selected, the communication route is
connected when an audio input is detected.
• DTMF: The communication route is connected when
a DTMF tone is detected.
• Always Send during Talking: The VE-PG3 keeps sending the PTT control
signal, once the communication route has
been established.
[Port Settings]–[Digital Transceiver1 (D-TRX1)–Digital Transceiver4 (D-TRX4)]
!1
