Icom VE-PG3 - M Connection Status Static IP

5
BRIDGE MODE SETTING SCREEN
5-19
5. [Router] Menu (continued)

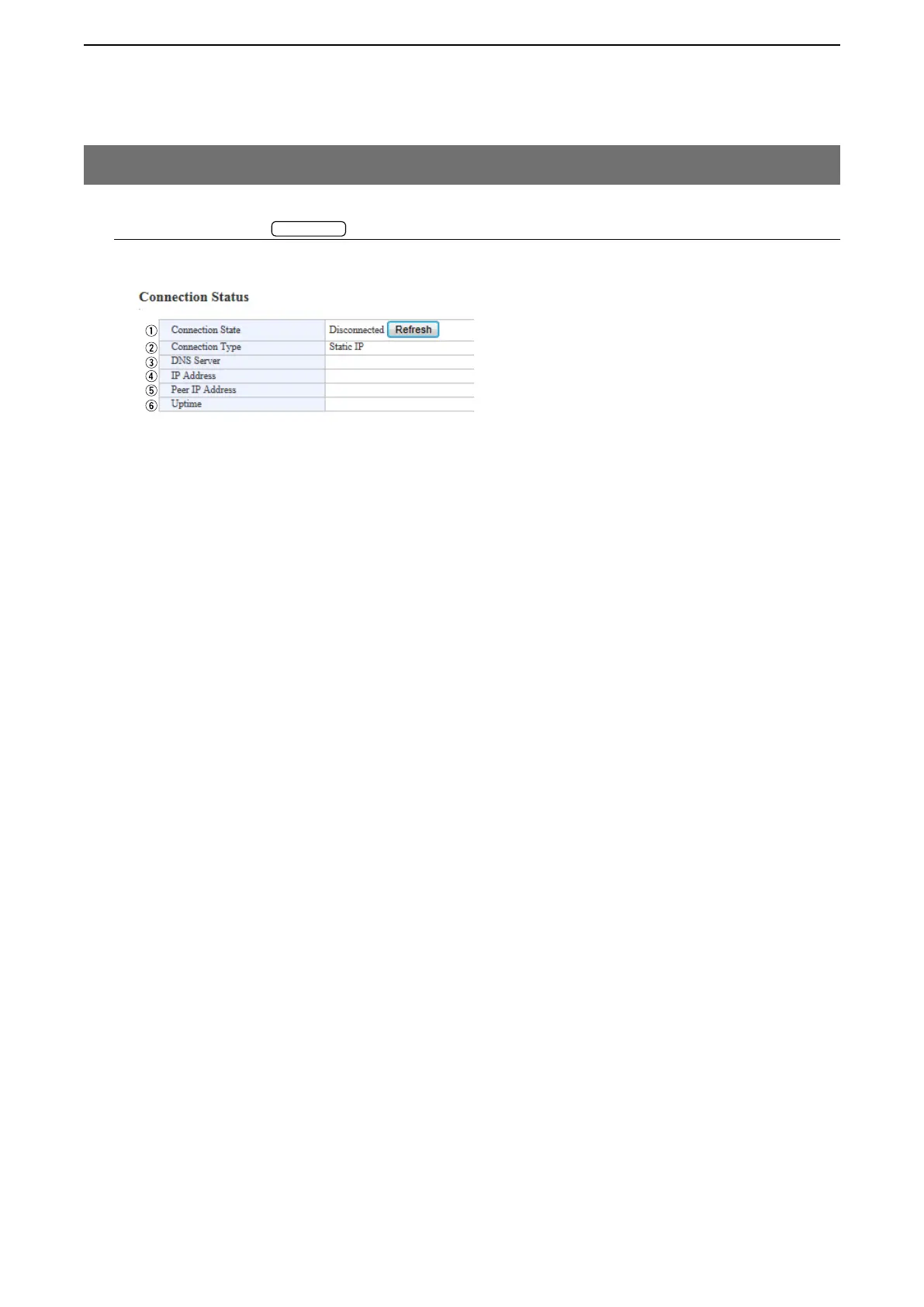

M Connection Status
Static IP
Displays the WAN connection status.
q Connection State ………… Displays the WAN connection status.
Refresh: Click to refresh the screen.
Status:
"Unplugged": Linkdown. Cable not connected.
"Disconnected": Linkup. Static IP is not specified.
"Connected": Linkup. Static IP specified.
w Connection Type …………
Displays the WAN connection type.
e DNS Server ……………… Displays the DNS server's IP address which is manually set.
r IP Address …………………
The VE-PG3's WAN IP address
which is manually set
.
t Peer IP Address ………… Displays the gateway IP address which is manually set.
y Uptime …………………… Displays the elapsed time the VE-PG3 has been connected to the network.
Click Refresh to refresh the screen.
[Router]–[WAN]
