Icom VE-PG3 - M Static DHCP; M Static DHCP Table

6
CONVERTER MODE SETTING SCREEN
6-13

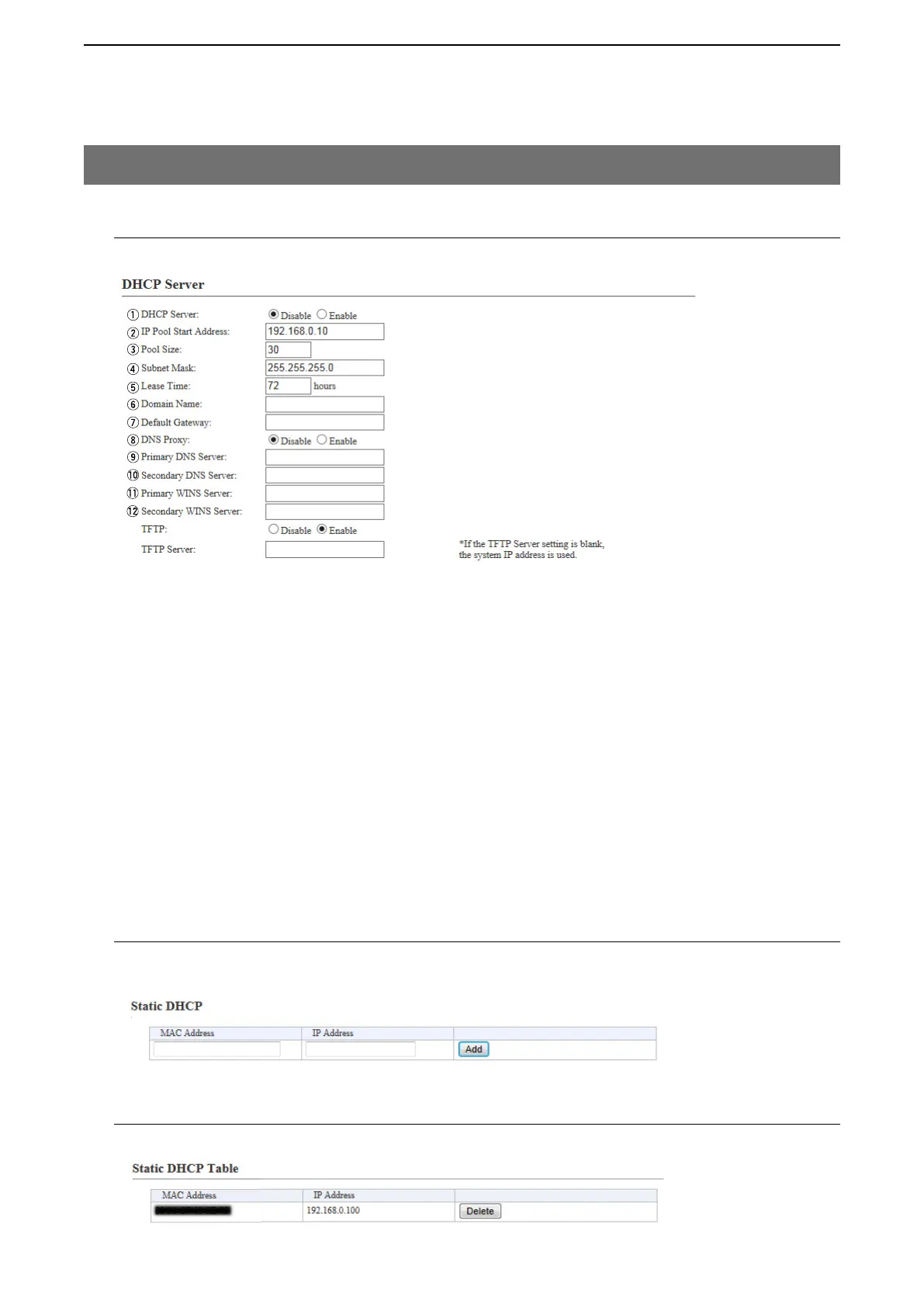

4. [Network] Menu
M DHCP Server (continued)
o Primary WINS Server …… Enter the WINS server’s primary address.
!0 Secondary WINS Server … Enter the WINS server’s secondary address.
!1 TFTP ……………………… Select “Enable” to use TFTP server, which is used for provisioning.
(Default: Enable)
If you use “KX-UT series” IP phone, select “Enable.”
!2 TFTP Server ……………… Enter the TFTP server address.
If the address is not specified, the VE-PG3’s IP address is notified.
If you use the separated SIP server, enter the server’s address.
[Network]–[DHCP Server]
M Static DHCP
Enter MAC and static IP addresses to the DHCP server.
• You can enter up to 32 entries.
M Static DHCP Table
Displays the static DHCP entries.
!3
!4
*
*
*Appears only when “Disable” is selected in [DNS Proxy].
