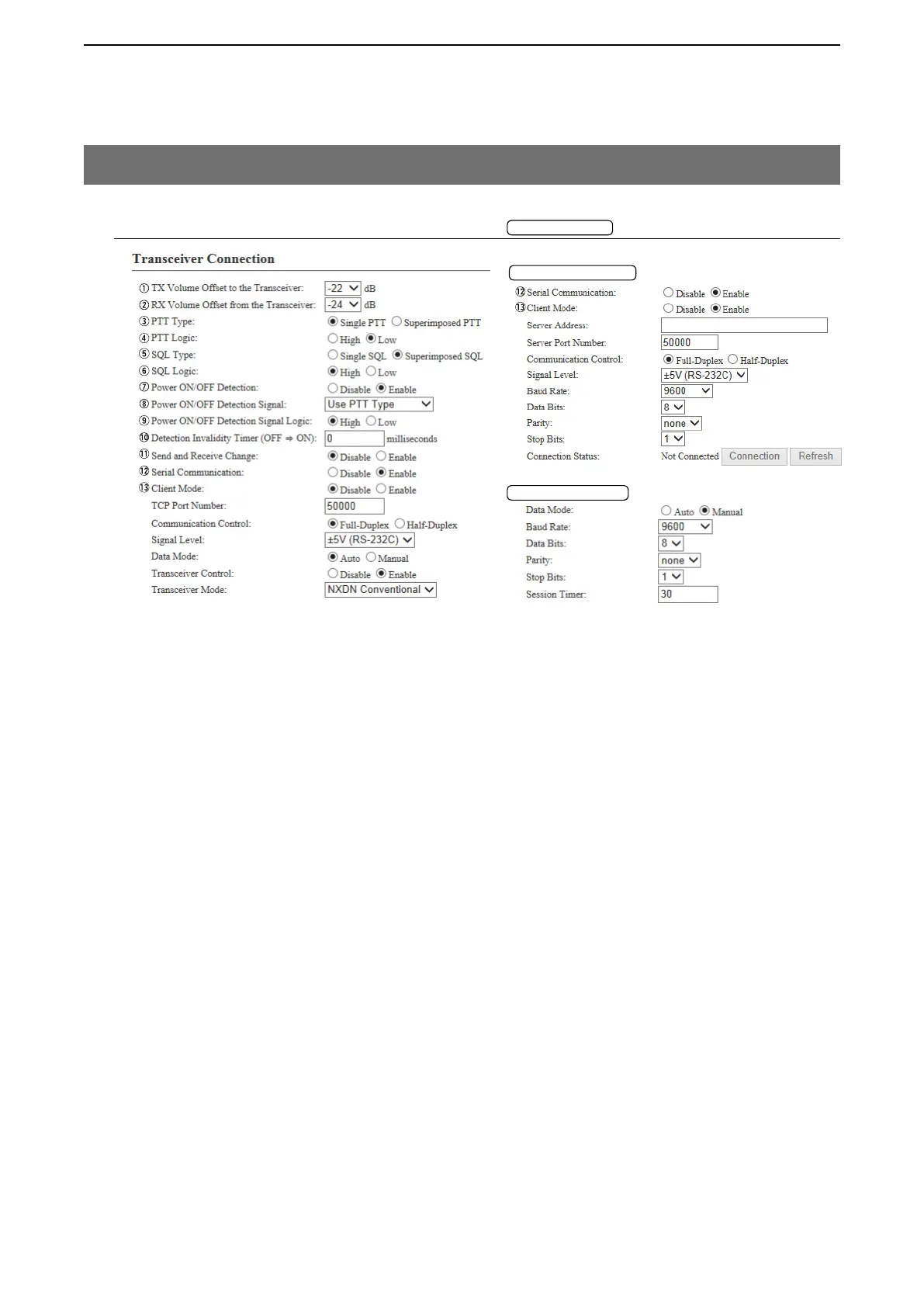

BRIDGE MODE SETTING SCREEN
5-69
!7 Data Mode ………………… [Data Mode] selects the communication method for the Serial Communication
between a device and the VE-PG3. (Default: Auto)
• Auto: Automatically starts the serial communication from a Virtual Serial
Port installed on your PC.
• Manual: Manually sets a serial communication method for a device.
* [Baud Rate] (@2) – [Session Timer] (@7) are displayed when
“Manual” is selected.
!8 Transceiver Control
Select “Enable” to control the transceiver using the serial communication.
(Default: Disable)
!9 Transceiver Mode
Select the operating mode from NXDN Conventional, NXDN Trunking or dPMR.
(Default: NXDN Conventional)
@0 Server Address
Enter the destination VE-PG3’s IP address.
@1 Server Port Number
Enter the destination VE-PG3’s port number.
(Default: TRX1=50000, TRX2=50001
)
Range: “1024” to “65535”
@2 Baud Rate ………………… Select a serial communication speed between a device and the VE-PG3.
(Default: 9600)
