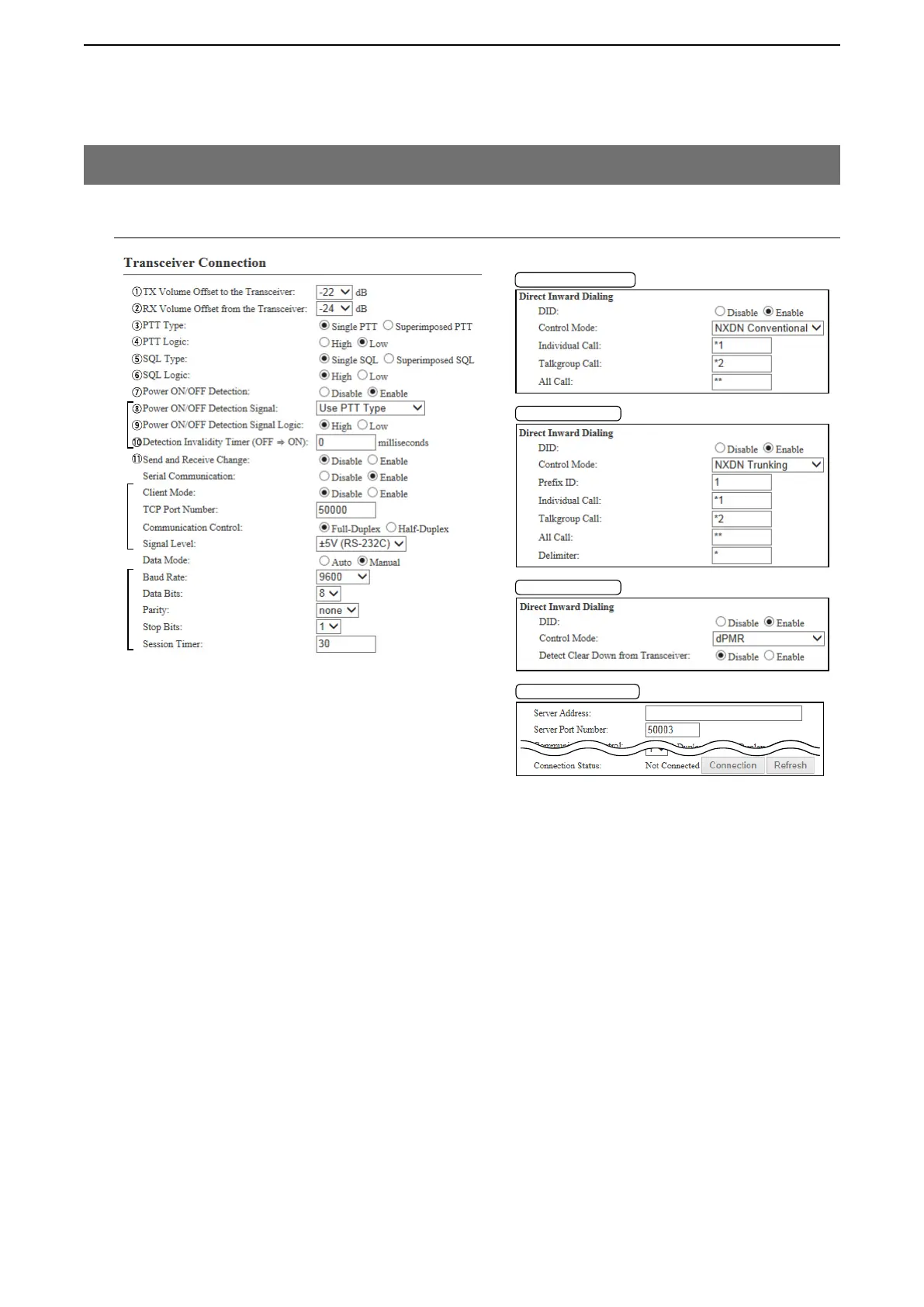

9. [Port Settings] Menu (continued)
M Transceiver 1 (TRX1)/Transceiver 2 (TRX2)
[Port Settings]–[Transceiver 1 (TRX1)/[Transceiver 2 (TRX2)]
e PTT Type ………………… Select the PTT circuit type. (Default: Single PTT)
• Single PTT: The speaker line and PTT input line are separated.
• Superimposed PTT: The PTT input line is superimposed on the MIC input
(A1 terminal).
r PTT Logic ………………… Select the PTT logic. (Default: Low)
• High: PTT line becomes “High” when [PTT] is pushed. (Active High)
• Low: PTT line becomes “Low” when [PTT] is pushed. (Active Low)
t SQL Type ………………… Select the squelch signal type. (Default: Single SQL)
• Single SQL: The squelch signal is separately input.
• Superimposed SQL: The squelch signal is superimposed on the speaker
input line (A3 terminal).
y SQL Logic ………………… Select the squelch detection type. (Default: High)
• High:
The squelch line becomes “High” while receiving signal. (Active High)
• Low:
The squelch line becomes “Low” while receiving signal. (Active Low)
*
