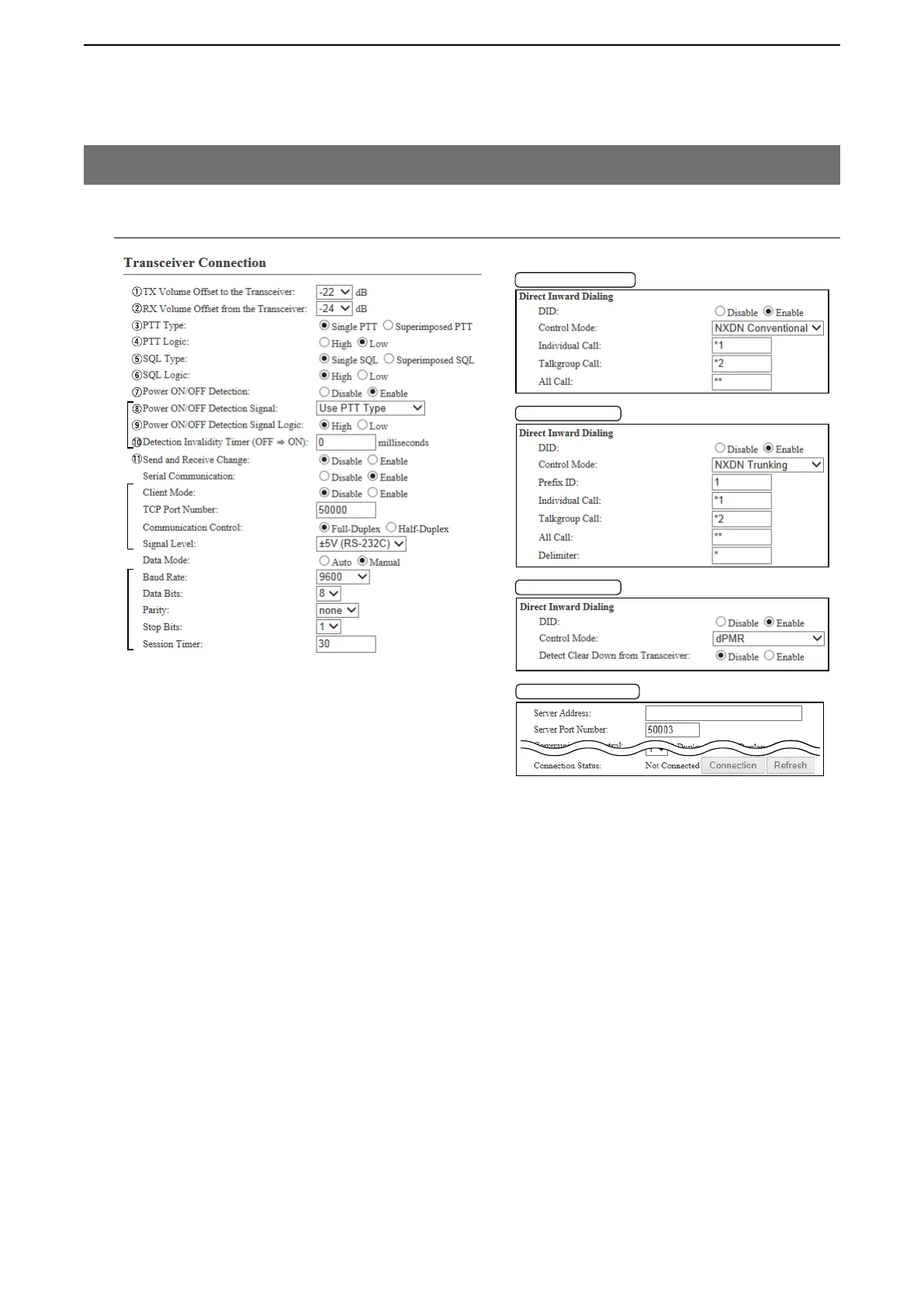

9. [Port Settings] Menu (continued)
M Transceiver 1 (TRX1)/Transceiver 2 (TRX2)
[Port Settings]–[Transceiver 1 (TRX1)/[Transceiver 2 (TRX2)]
u Power ON/OFF Detection Select “Enable” to detect the power status (ON/OFF) of the radio.
(Default: Disable)
i Power ON/OFF Detection
Signal ……………………… Select the PTT type to detect the power status (ON/OFF) of the radio.
(Default: Use PTT Type)
• Single PTT: The microphone line and PTT input line are separated.
• Superimposed PTT: The PTT input line is superimposed on the MIC input
(A1 terminal).
• Use PTT Type: The PTT type selected in [PTT Type] (e) is used.
o Power ON/OFF Detection
Signal Logic ……………… Select the logic level to detect the power status (ON/OFF). (Default: High)
High: Outputs “High” while the power is ON.
Low: Outputs “Low” while the power is ON.
!0 Detection Invalidity Timer
(OFF => ON): …………… Enter the power ON/OFF detection delay time in millisecond. (Default: 0)
Range: 0 to 10000 milliseconds
The detection delay is the amount of time the VE-PG3 detects the power sta-
tus before the VE-PG3 recognizes the power status.
*
1
Appears only when “Enable” is selected in [Power Detection].
*
2
Appears only when “Enable” is selected in [Serial Communication].
*
3
Appears only when “Manual” is selected in [Data Mode].
*
