CONVERTER MODE SETTING SCREEN
6-99
e Event OFF Time ………… Select the delay time until the port B3/B4 terminal (General control input) is
deactivated. (Default: 1)
Range: [0.1], [0.3], [0.5], [1], [1.5], [2], [3] (second)
r EXT Input Disconnect Timer Enter the delay time until the [EXT1]/[EXT2] port is ready for the next call.
(Default: 0)
When the callee telephone’s handset is taken off its hook, the VE-PG3 auto-
matically clears the [EXT1]/[EXT2] port for the next call, after the delay time
has passed.
Range: 0–60 (seconds)
Note: Enter “0” to not to automatically clear the port.
t Control Input Detection … Select the port input state of B3/B4 terminal (General control input).
(Default: Short circuit (LOW))
When the input port is pulled up:
• Short circuit (LOW) : Active when the B3/B4 terminal (General control
input) is connected to the GND (LOW).
• Open circuit (HIGH) : Active when the B3/B4 terminal (General control
input) is open (HIGH).
When the input port is NOT pulled up:
• Short circuit (LOW) : Active when no voltage is applied to the B3/B4
terminal (General control input).
• Open circuit (HIGH) : Active when a voltage is applied to the B3/B4 ter-
minal (General control input).
y Control Input Pull-up Setting Select “Enable” to internally pull up the B3/B4 terminal (General control
input). (Default: Enable)
9. [Port Settings] Menu
M EXT Control Terminal (continued)

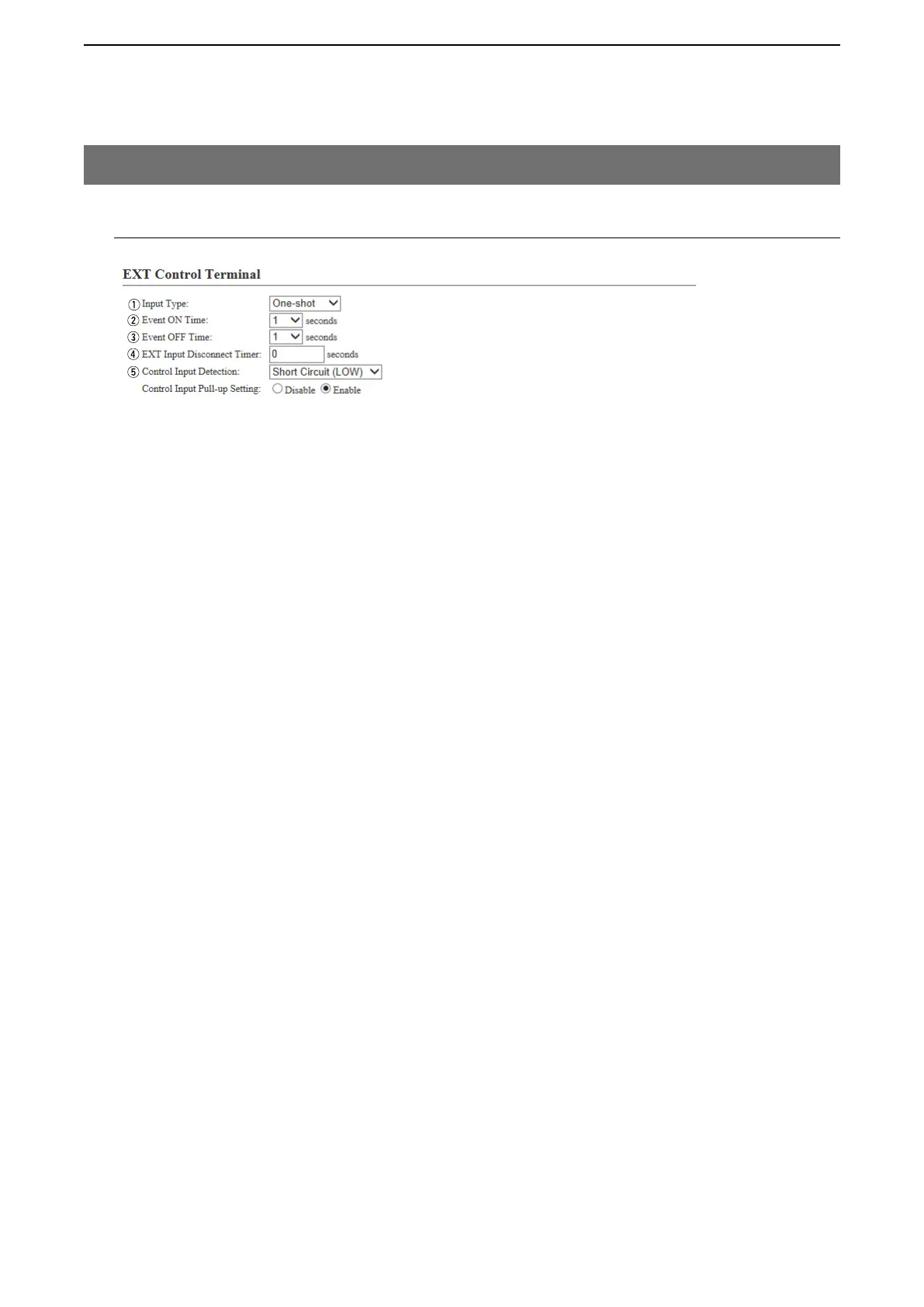

[Port Settings]–[EXT Input 1 (EXT1)/EXT Input 2 (EXT2)]
*Appears only when “One-shot” is selected in [Input Type].
