8. [Port Settings] Menu (continued)

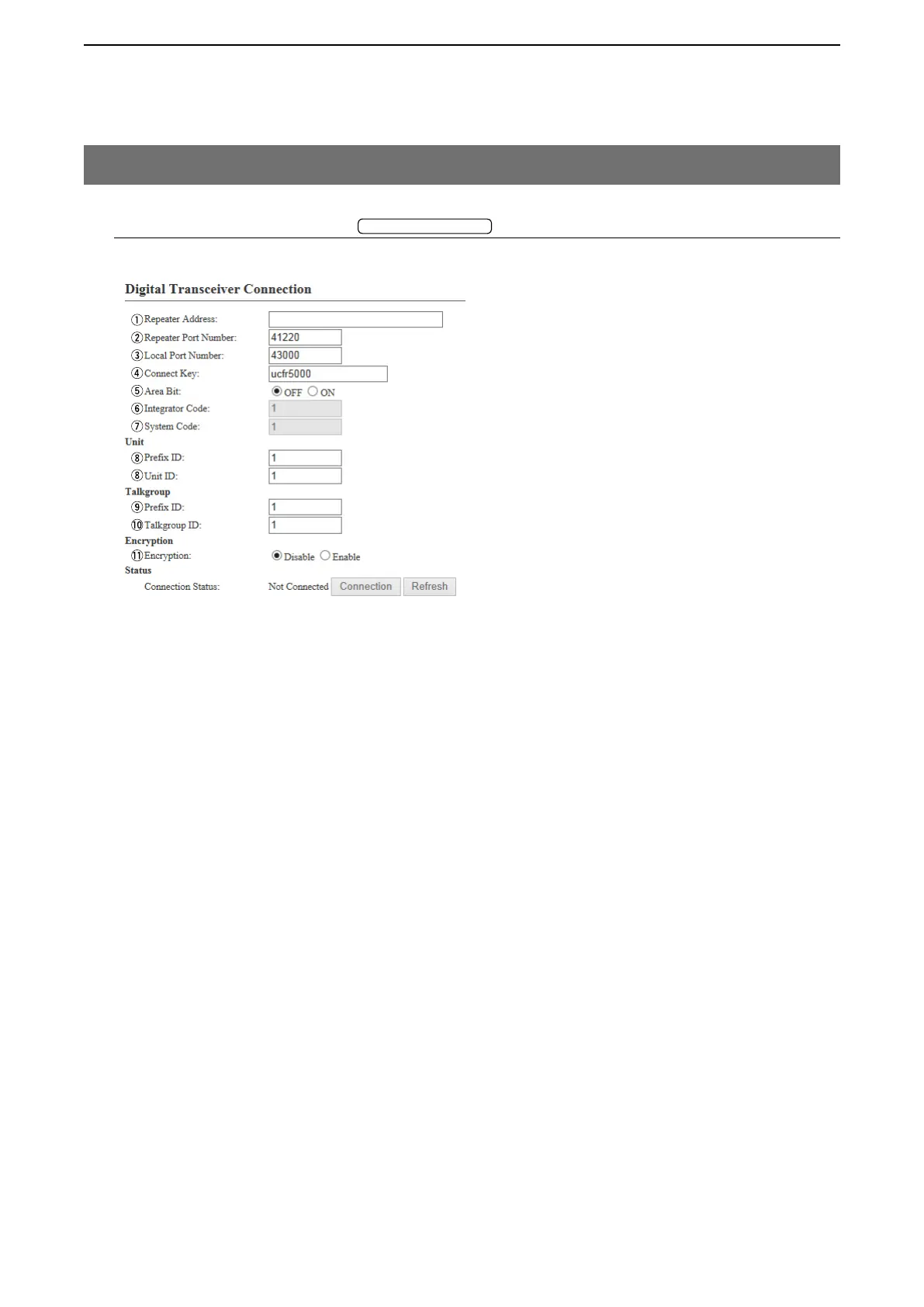

M Digital Transceiver Connection
Mode: NXDN Trunking
Set the details to connect to the UC-FR5000 Network Controller.
q Repeater Address ……… Enter the UC-FR5000's IP address.
w Repeater Port Number … Enter the Connection Receive Port number which is set in the UC-FR5000.
e Local Port Number ……… Enter the Data Receive Port number which is set in the UC-FR5000.
r Connect Key ……………… Enter the Key Code which is set in the UC-FR5000.
t Area Bit …………………… Turn the Area Bit ON or OFF. (Default: OFF)
y Integrator Code ………… Displays the Integrator Code which is set in the UC-FR5000.
u System Code …………… Displays the System Code which is set in the UC-FR5000.
Unit
i Prefix ID/Unit ID ………… Enter the Prefix ID (for NXDN Trunking) and Unit ID which are set in the
UC-FR5000. (Default: 1)
Talkgroup
o Prefix ID …………………… Enter the Prefix ID (for NXDN Trunking) which is set in the UC-FR5000.
(Default: 1)
!0Talkgroup ID ……………… Enter the Talkgroup ID. (Default: 1)
[Port Settings]–[Digital Transceiver 1 (D-TRX1)]–
[Digital Transceiver 4 (D-TRX4)]
