5

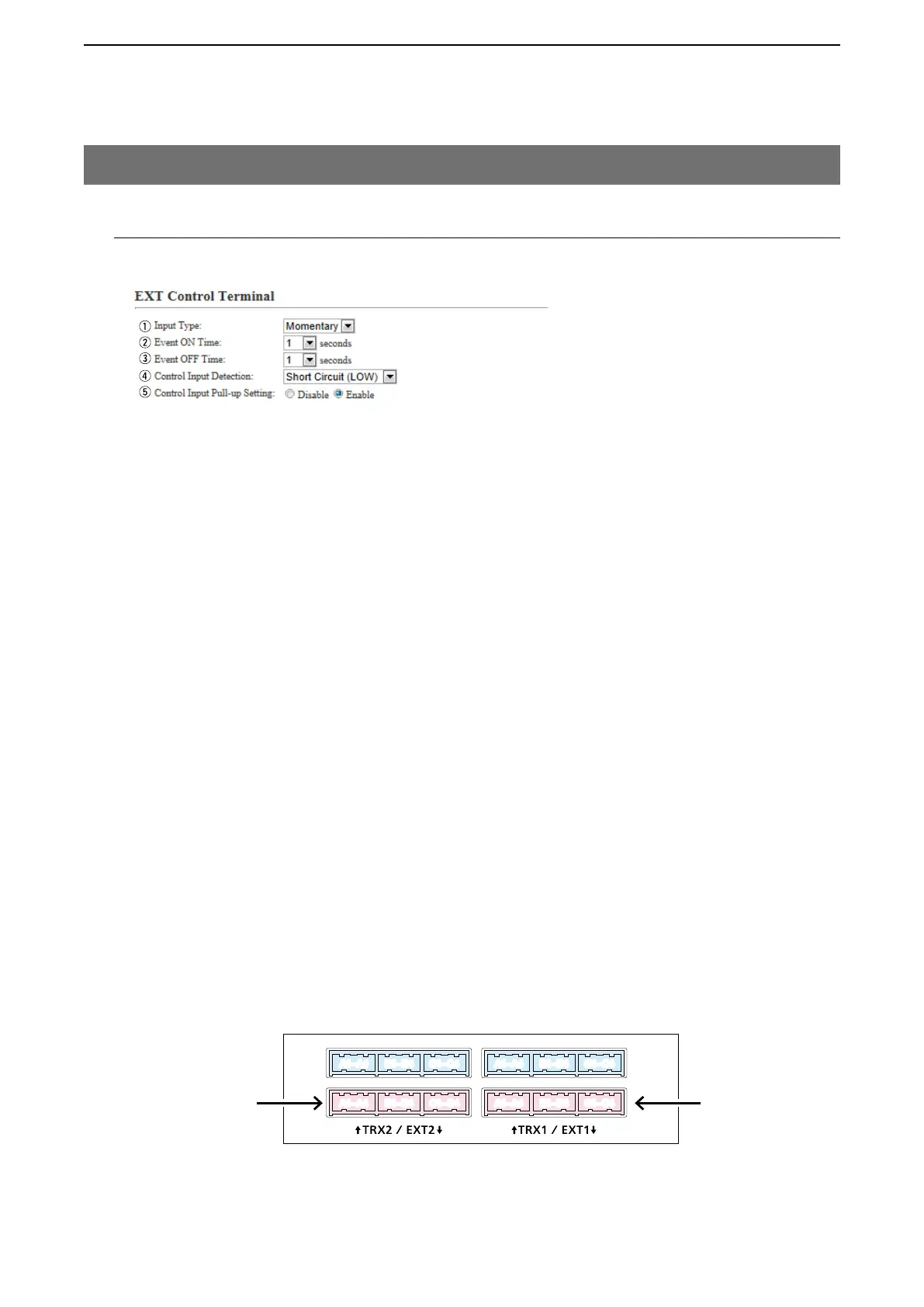

BRIDGE MODE SETTING SCREEN
5-95
e Event OFF Time ………… Select the delay time until the port (B3/B4 terminal (General control input)) is
deactivated. (Default: 1)
Range: [0.1], [0.3], [0.5], [1], [1.5], [2], [3] (second)
r Control Input Detection … Select the port input state of B3/B4 terminal (General control input).
(Default: Short Circuit (LOW))
When the input port is pulled up:
• Short Circuit (LOW): B3/B4 terminal (General control input) is connected
to the GND.
• Open Circuit (HIGH): B3/B4 terminal (General control input) is open.
When the input port is NOT pulled up:
• Short Circuit (LOW): No voltage is applied to the B3/B4 terminal (General
control input).
• Open Circuit (HIGH): A voltage is applied to the B3/B4 terminal (General
control input).
t Control Input Pull-up Setting Select “Enable” to internally pull up the B3/B4 terminal (General control
input). (Default: Enable)
8. [Port Settings] Menu
M EXT Control Terminal (continued)
VE-PG3 (Rear view)
• See Section 8 for port details.
A1~A4A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
[EXT1] port[EXT2] port
[Port Settings]–[EXT Input 1 (EXT1)/EXT Input 2 (EXT2)]
