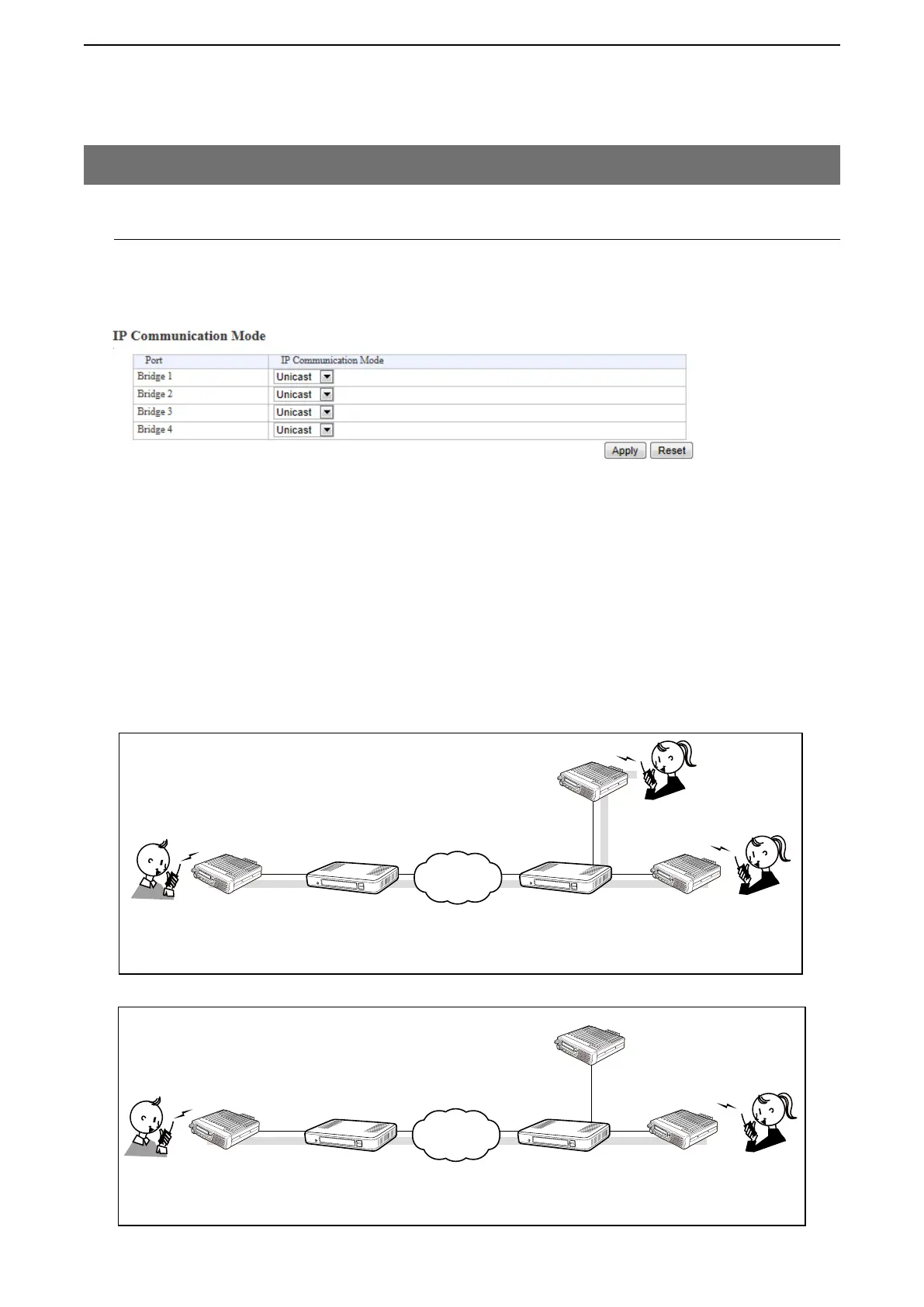

CONVERTER MODE SETTING SCREEN
6-20
6. [Operating Mode] Menu (continued)
[Operating Mode]
M IP Communication Mode
Select the IP communication mode (Multicast mode or Unicast mode) when the Bridge-connected devices sends
an audio signal through the virtual port.
• Some settings return to their default, when the IP communication mode is changed.
IP Communication Mode … … Select the mode to communicate between Bridge-connected devices, through
the virtual port. (Default: Unicast)
• Multicast
Communicates between two and more interfaces (Multi points).
The Bridge communication is available through the matched destination
IP address (Multicast) and port number.
• Unicast
Communicates between two interfaces (Point-to-point).
The Bridge communication is available by exchanging two VE-PG3s IP
address and port number.
Radio C
Radio A
Radio A1
Radio B1
Radio C1
VE-PG3
(192.168.0.3)
VE-PG3
(192.168.0.2)
[TRX1]
[TRX2]
Radio B
[TRX1]
Example of the communicaiton in the Multicast mode
IP
Network
Example of the communicaiton in the Unicast mode
Radio C
Radio A
Radio A1 Radio B1
VE-PG3
（192.168.0.3）
VE-PG3
(192.168.0.2)
[TRX1]
Radio B
[TRX1]
[TRX2]
Port number
21500
Port number
21500
Port number
21502
IP
Network
