6
CONVERTER MODE SETTING SCREEN
6-37

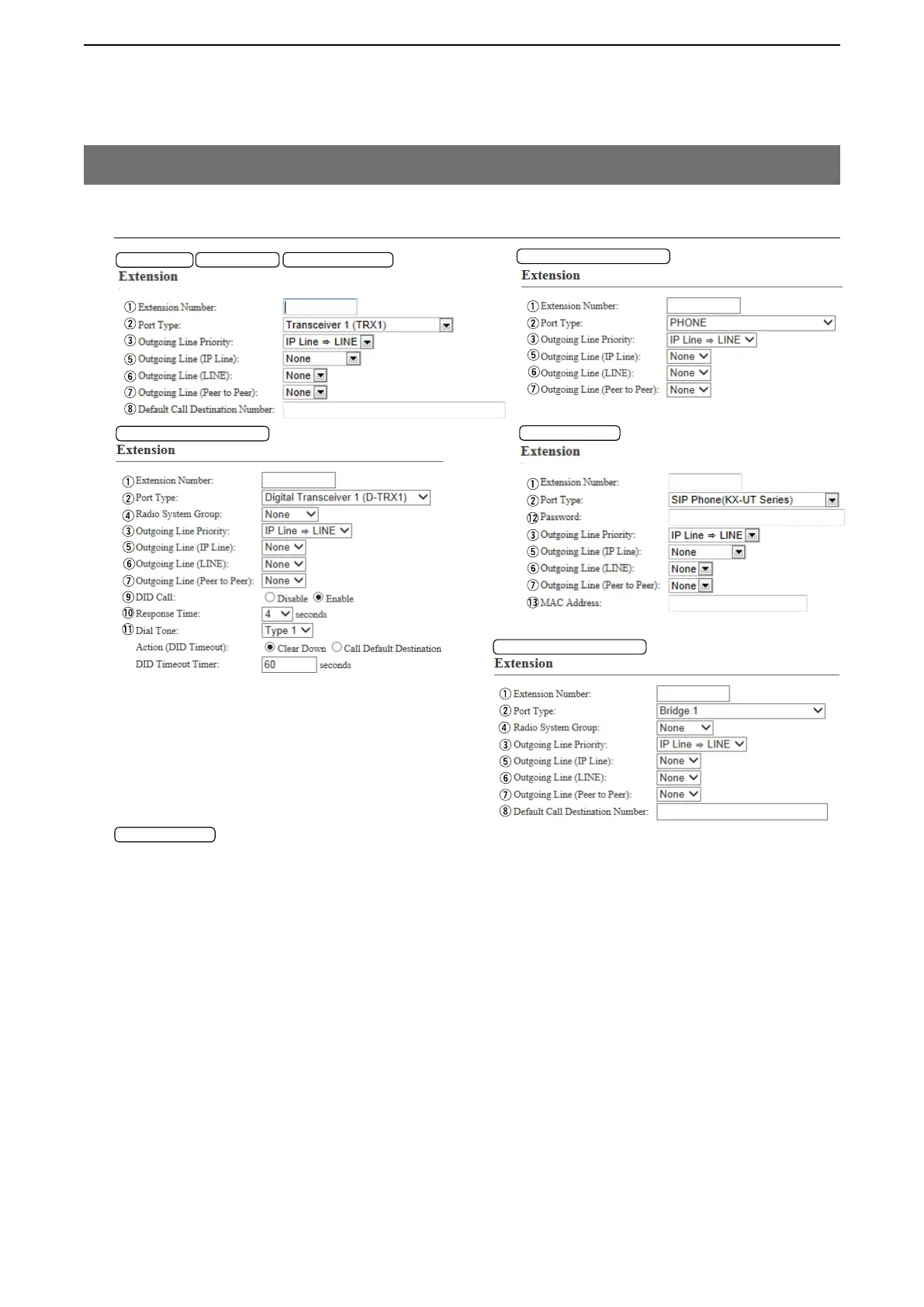

8. [Extension Connect] Menu
M Extension (continued)
[Extension Connect]–[Extension Connect]
SIP Phone
!3 MAC Address …………… Enter the IP phone’s MAC address, if you use the KX-UT Series IP phone.
Note: This item appears when “SIP Phone (KX-UT Series)” or “SIP Phone
(Automatic Detection)” is selected in [Port Type].
!4 Action (DID Timeout) …… Select the action when the VE-PG3 does not receive any DTMF signals for a
preset time period of time. (Default: Clear Down)
* When DTMF signals are received within the preset period, the DID Timeout
does not occur.
• Clear Down: The VE-PG3 disconnects a call after a preset period of time.
• Call Default Destination: When the VE-PG3 is connected to the Digital
Transceiver system, it makes a call to the pro-
grammed target transceiver or group.
Setting item: [Port Setting] – [Digital Transceiver (1–4)] – [Digital Transceiver
Connection] – [Default Callee ID]
When the VE-PG3 is connected to other devices in the Bridge mode,
it makes a call to the programmed target transceiver or group.
Setting item: [Port Setting] – [Bridge (1–4)] – [Bridge Communication] –
[Default Callee ID]
Transceiver
EXT Input 1/2
Emergency Notice
Digital Transceiver
SIP Phone
Phone
*Appears when “Enable” is selected in [DID Call].
*
*
*
*
!4
!5
Bridge
To Next Page
