Datasheet 343

Electrical Characteristics

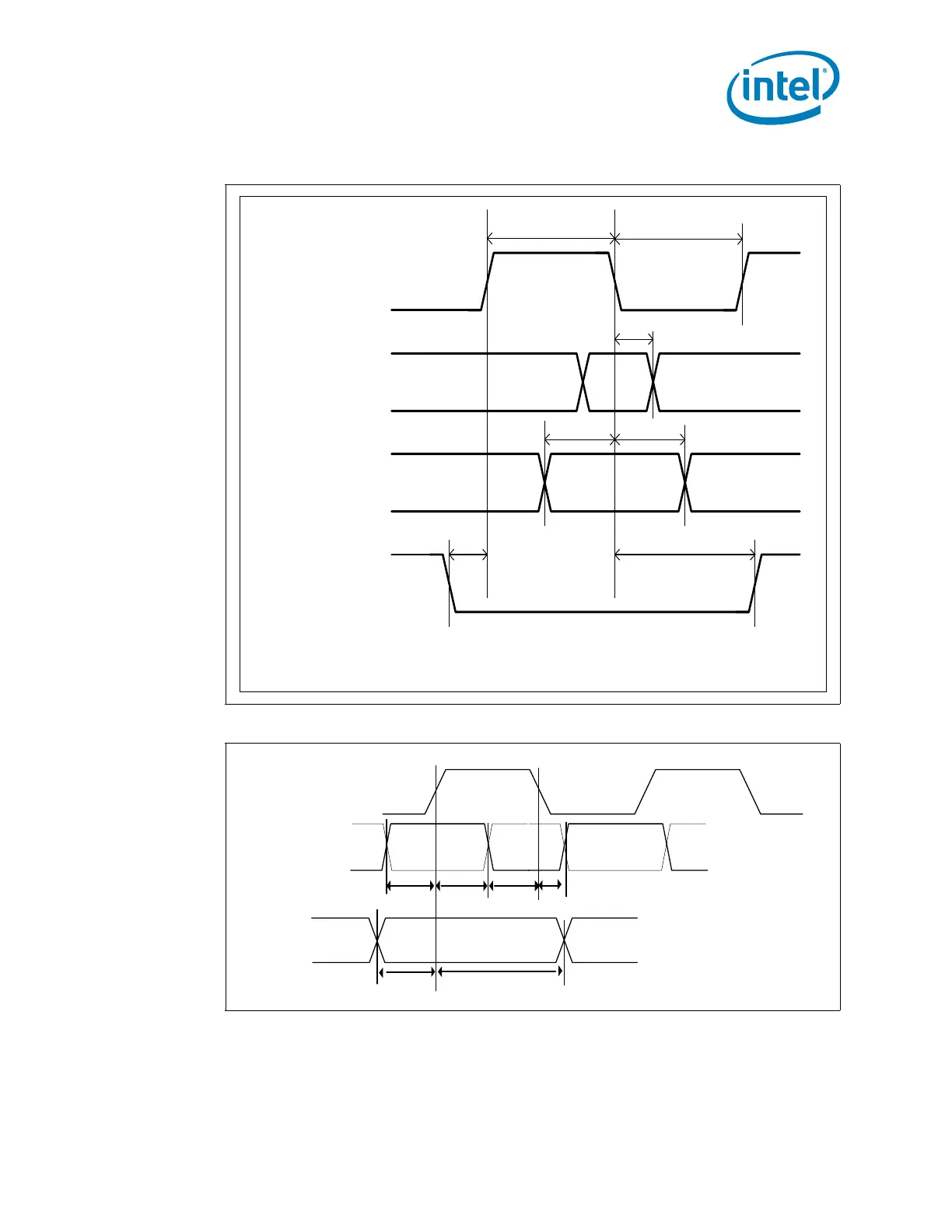

Figure 8-22. SPI Timings

Figure 8-23. Intel

®

High Definition Audio Input and Output Timings

SPI_CLK

SPI_MOSI

SPI_MISO

SPI_CS#

t186 t187

t184 t185

t183

t189t188

HDA_SDOUT

HDA_SDIN[3:0]

HDA_BIT_CLK

t143

t144

t145

t146
