Datasheet 345

Electrical Characteristics

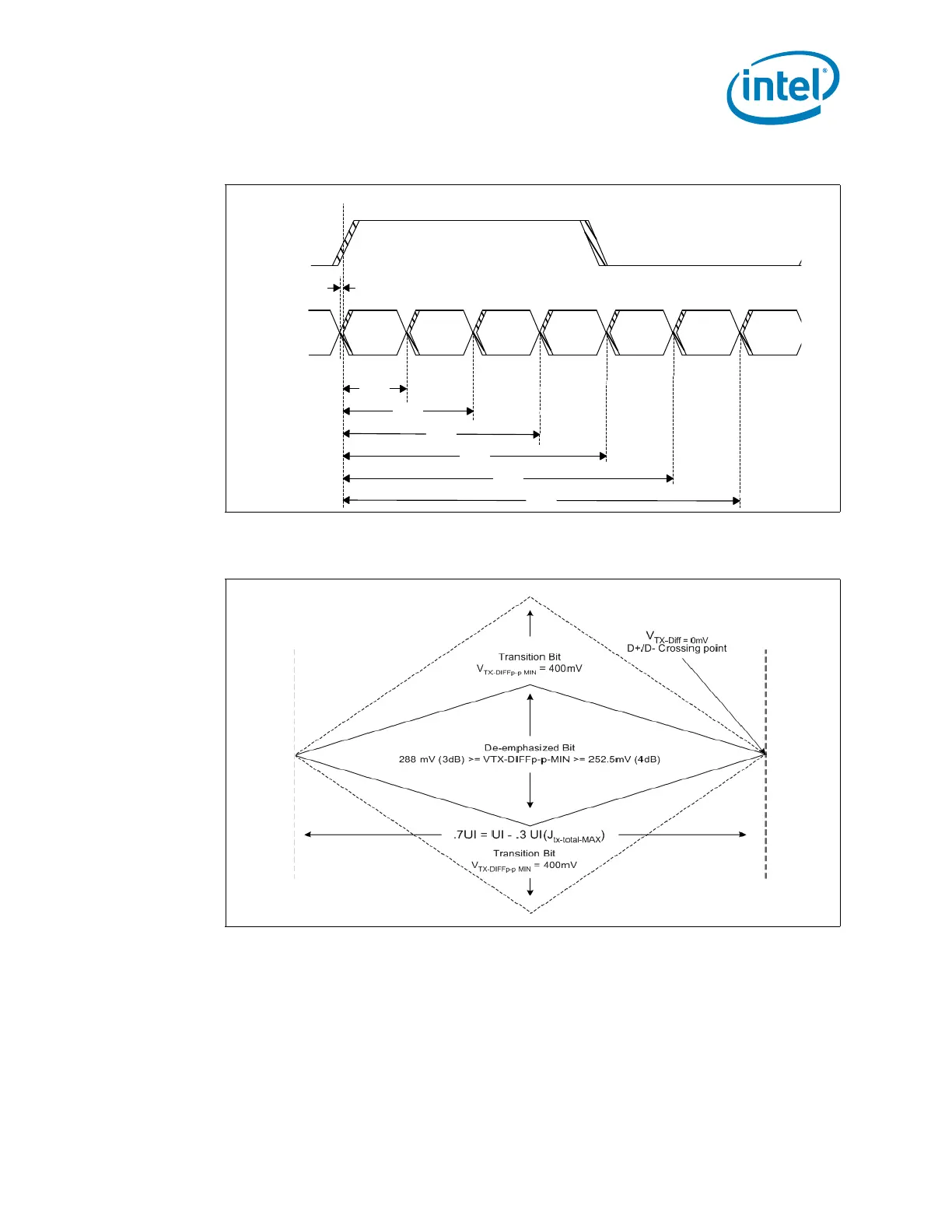

Figure 8-27. Transmitting Position (Data to Strobe)

CLKA/

CLKB

YA/YB

Tppos1

Tppos2

Tppos3

Tppos4

Tppos5

Tppos6

Tppos0

Figure 8-28. PCI Express Transmitter Eye
