Intel 6 SERIES CHIPSET - DATASHEET 01-2011 - PCH Test Load; Controller Link Receive Timings; Controller Link Receive Slew Rate

Electrical Characteristics
348 Datasheet
§ §

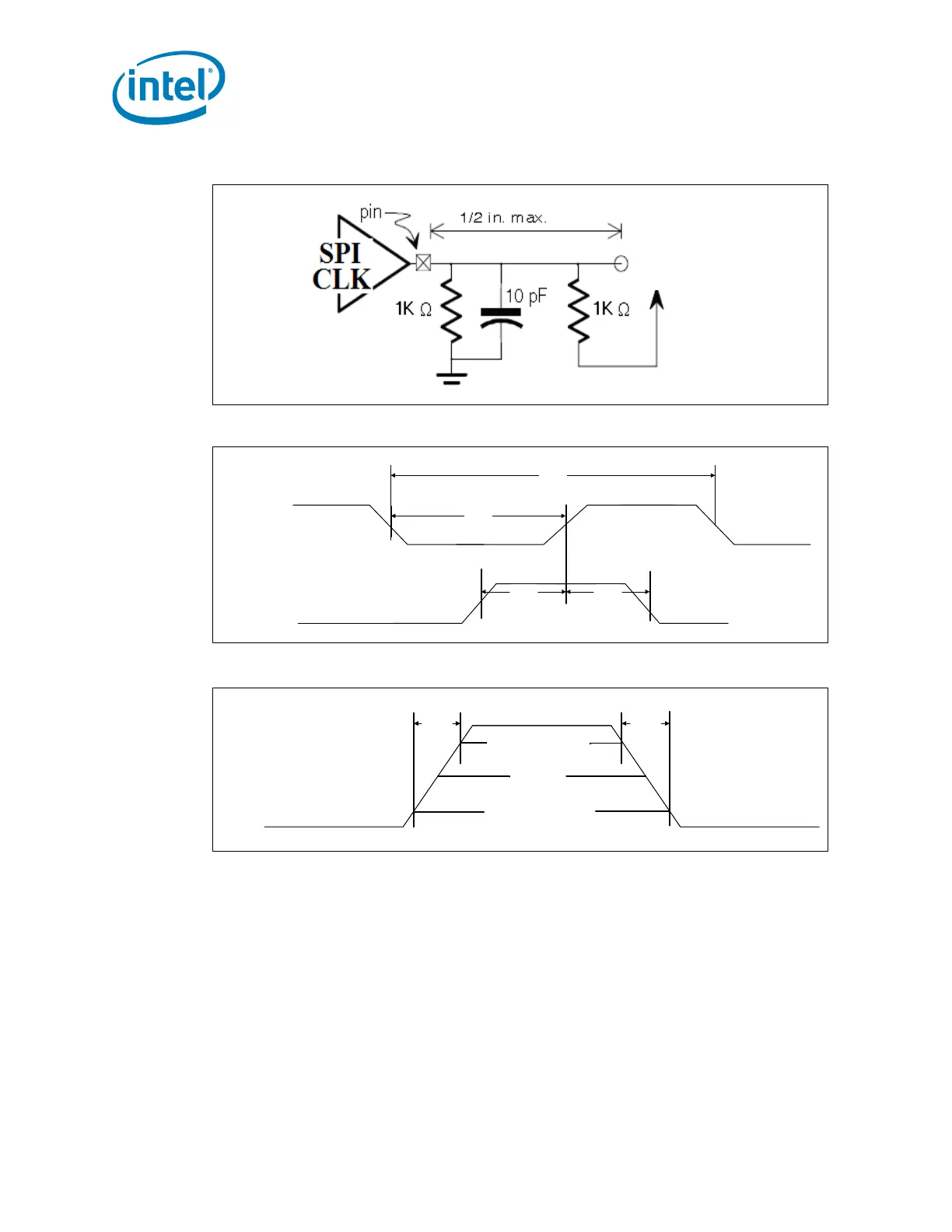

Figure 8-31. PCH Test Load
VccASW3_3
Figure 8-32. Controller Link Receive Timings
t190
CL_CLK1
CL_DATA1
t191
t193 t194
Figure 8-33. Controller Link Receive Slew Rate
t192
CL_Vref – 50mV
CL_Vref + 50mV
t192
CL_Vref
CL_CLK1 / CL_DATA1
