DMTA-10045-01EN, Rev. E, August 2016
Chapter 6 124

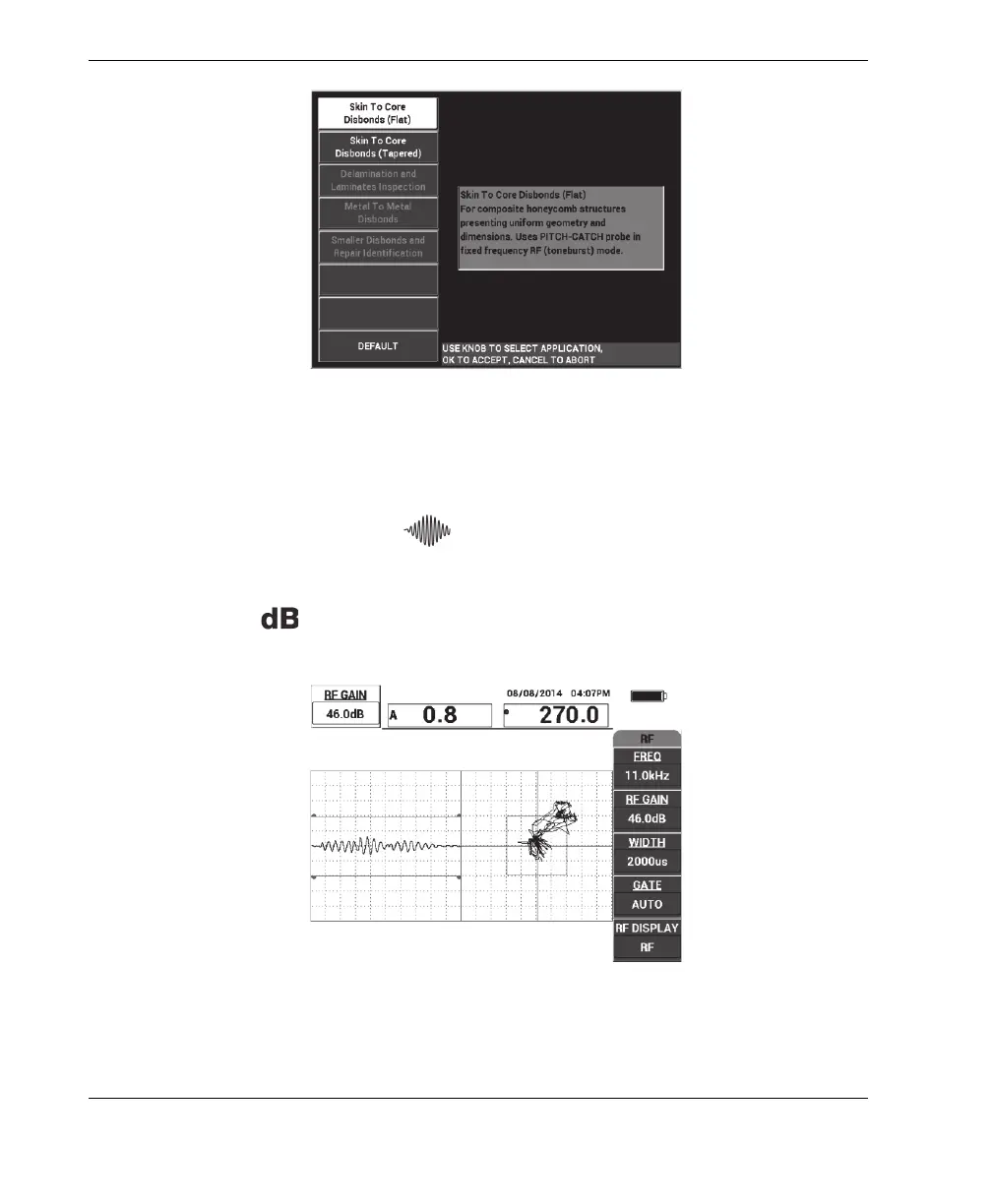

Figure 6‑2 The Skin To Core Disbonds (Flat) application
To calibrate the signals
1. Press the MAIN menu key ( ) once, and set the FREQ (A key) to 11 kHz
using the knob.
2. Set the probe tips over a good area of the standard, adjust the gain using the
GAIN key ( ), and then ensure that the signal in the RF view (left) is contained
between 1 to 2 vertical divisions (see Figure 6-3 on page 124).
Figure 6‑3 The GAIN adjustment to obtain a contained signal
