Figure 6‑45 Materials — delamination in composites using resonance technique

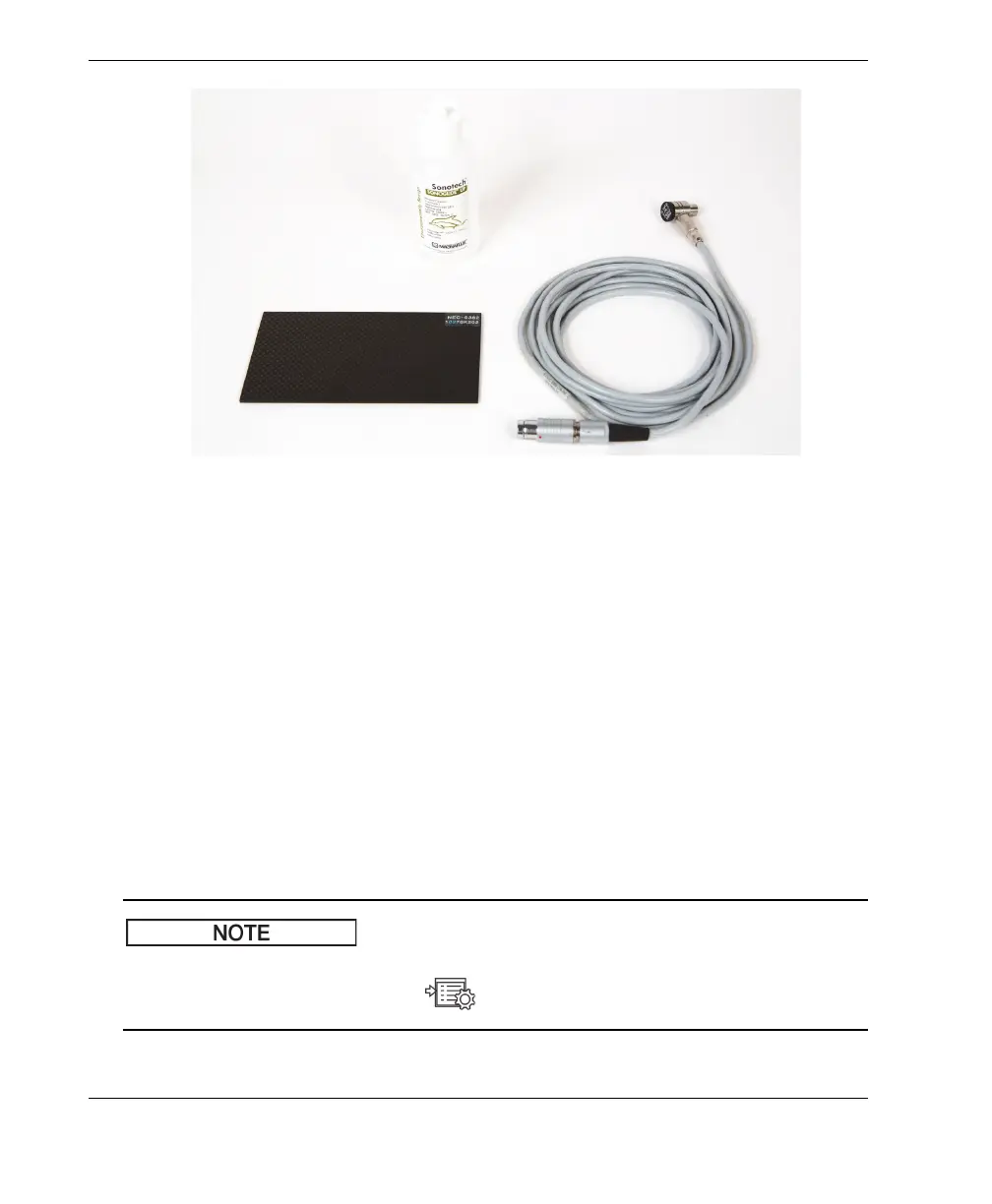

The following products are used in this procedure:
• CFRP delamination demonstration standard; 10 plies with three 13 mm (0.5 in.)
inserts. P/N: NEC-6382 [U8861986]
• Resonance low-viscosity couplant bottle, 118 ml (4 oz). P/N: 3308193 [U8770328]
• Resonance probe cable, 3.35 m (11 ft). P/N: SBM-CR-P6 [U8800059]
• 250 kHz resonance probe. P/N: S-PR-5 [U8010010]
To set the initial BondMaster 600 configuration
1. Connect the probe and the cable to the PROBE connector of the BondMaster 600.
2. When prompted, press CONTINUE (A key) to accept the PowerLink probe
information.
If you are using a non-PowerLink probe, access the APPL SELECT menu (A key)
using the ADV SETUP menu key ( ).
NOTE
