Olympus BondMaster 600 - Figure 6-37 Materials - Metal-To-Metal Bonds Using Resonance Technique

DMTA-10045-01EN, Rev. E, August 2016
Chapter 6 148

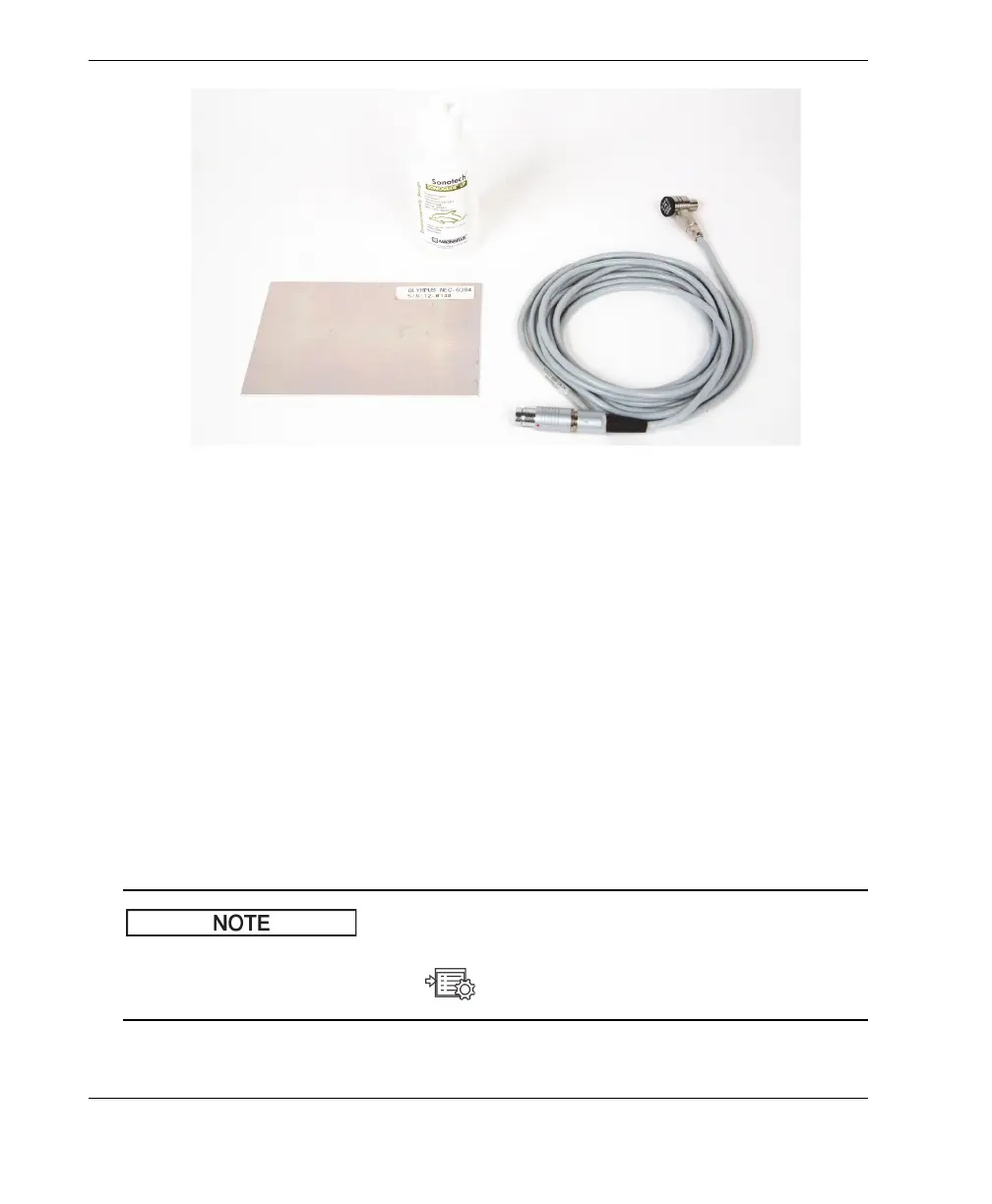

Figure 6‑37 Materials — metal‑to‑metal bonds using resonance technique
The following products are used in this procedure:
• Metal-to-metal bond demonstration standard; three aluminum plies of 0.5 mm
(0.020 in.) aluminum. P/N: NEC-6384 [U8861988]
• Resonance low-viscosity couplant bottle, 118 ml (4 oz). P/N: 3308193 [U8770328]
• Resonance probe cable, 3.35 m (11 ft). P/N: SBM-CR-P6 [U8800059]
• 250 kHz resonance probe. P/N: S-PR-5 [U8010010]
To set the initial BondMaster 600 configuration
1. Connect the probe and the cable to the PROBE connector of the BondMaster 600.
2. When prompted, press CONTINUE (A key) to accept the PowerLink probe
information.
If you are using a non-PowerLink probe, access the APPL SELECT menu (A key)
using the ADV SETUP menu key ( ).
NOTE
