2.5.3.1 BondMaster 600 Stand
The BondMaster 600 features an articulating stand for variable viewing angles (see
Figure 2-23 on page 49). The stand is attached to the back of the BondMaster 600 with
two hard pivot blocks. There is a high-friction coating on the stand surface to help
prevent it from sliding. The stand is bent in the center to easily accommodate being
placed on a curved surface.

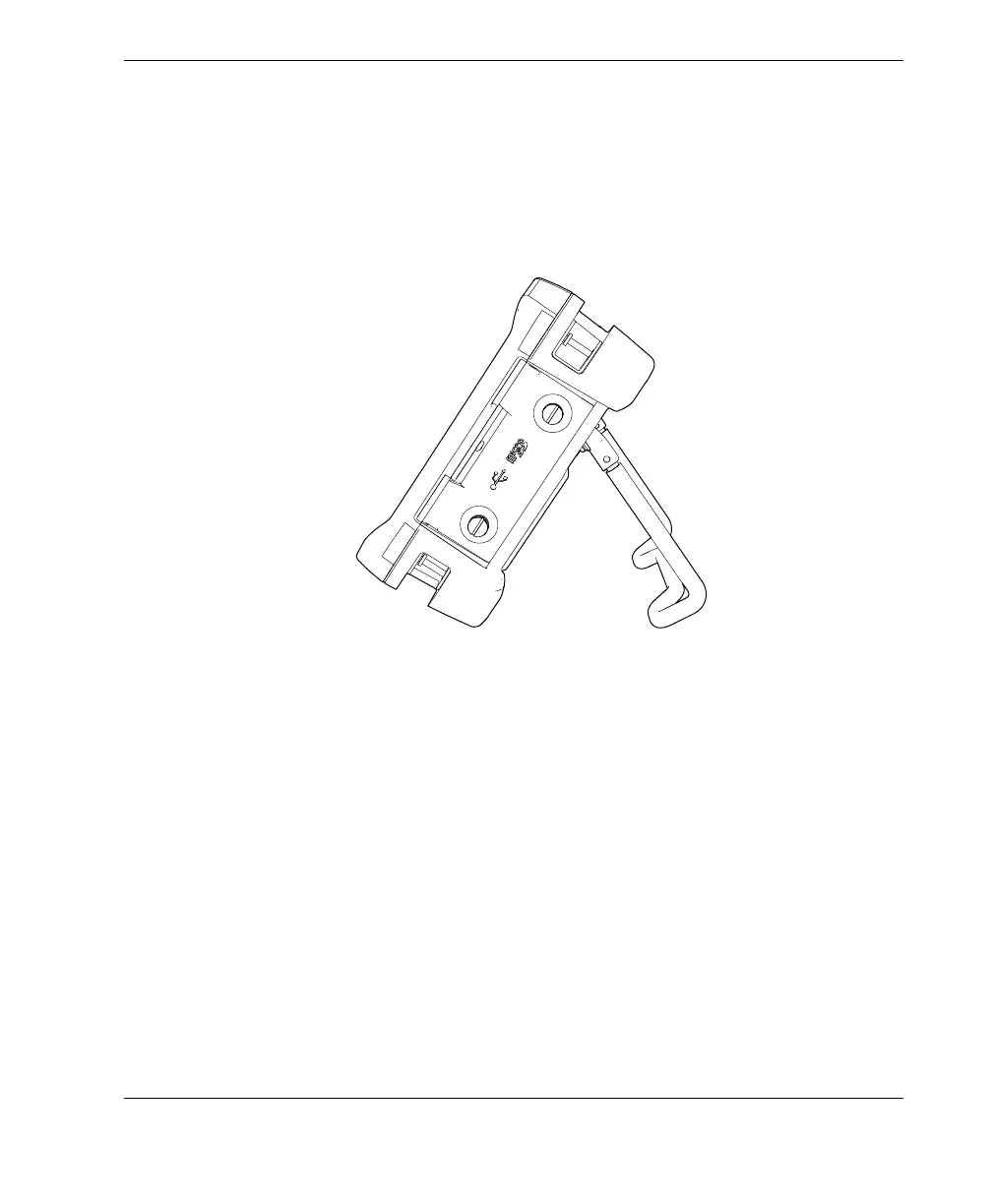

Figure 2‑23 BondMaster 600 stand
2.5.3.2 O-Ring Gasket and Membrane Seals
The BondMaster 600 contains seals that protect the instrument’s internal hardware
from the environment:
• Battery compartment cover seal
• I/O door seal
• Membrane vent
These seals must be properly maintained to assure environmental durability.
BondMaster 600 seals are evaluated and replaced as needed during the annual
calibration. This should be performed at an authorized Olympus service center.
