DMTA-10045-01EN, Rev. E, August 2016
Chapter 7 176

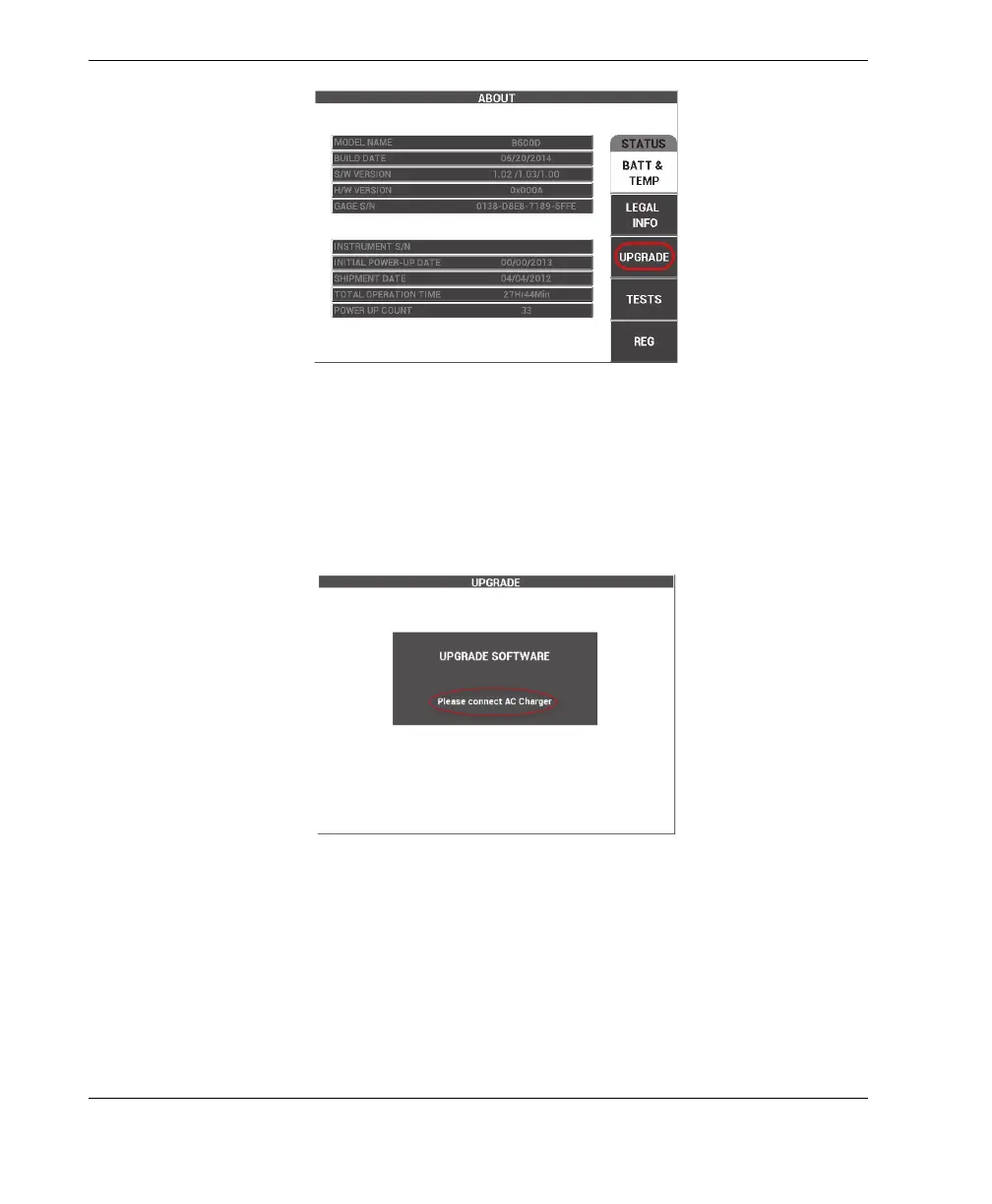

Figure 7‑4 The UPGRADE menu
4. Connect the battery charger to the BondMaster 600.
A message is displayed that indicates whether or not the battery charger is
connected (see Figure 7-5 on page 176 and Figure 7-6 on page 177).
Figure 7‑5 The message indicating the battery charger is not connected
