Observe the frequency tracking signal in the XY view to determine whether
the selected frequencies will enable an easy test or not (see Figure 6-60 on
page 166).

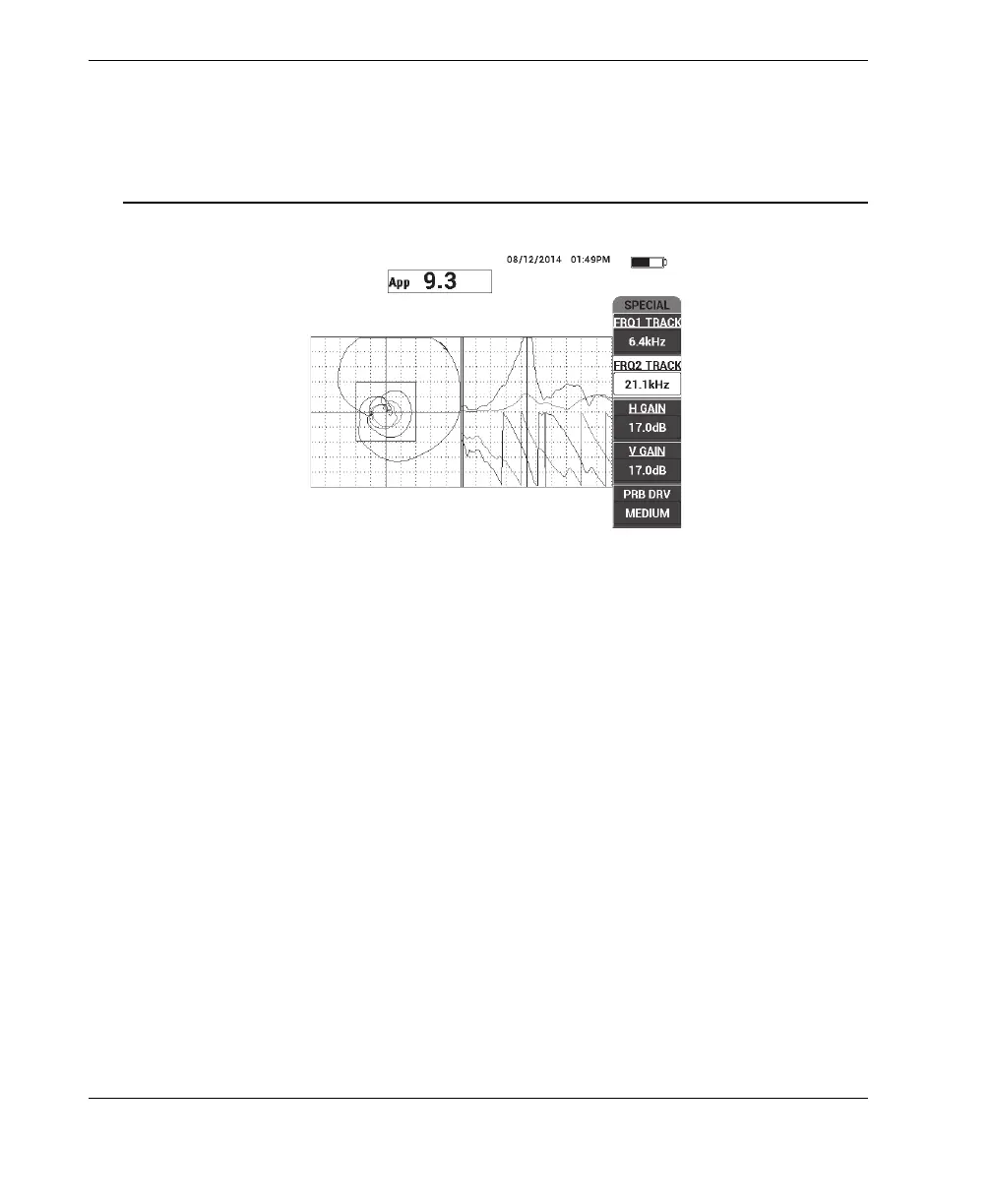

Figure 6‑60 The frequency‑tracking signal trace
6.2.2 Finding the Best Frequency to Inspect Honeycomb Composite —
Mechanical Impedance Analysis (MIA) Technique
The expanded frequency range of the BondMaster PC enables you to use the MIA
method at frequencies up to 50 kHz. This procedure explains how to identify the best
operating frequencies for writing a MIA procedure.
Inspection materials are shown in Figure 6-61 on page 167.
