12. Press the ALARM menu key ( ) twice to display the XY ALM 1 screen, and
then set the BOTTOM (C key) to 30 %.
13. Press the FULL NEXT key ( ) to display the full screen, and then slowly scan
over the disbonds and ensure that the dots still match the signal (see Figure 6-43
on page 152).

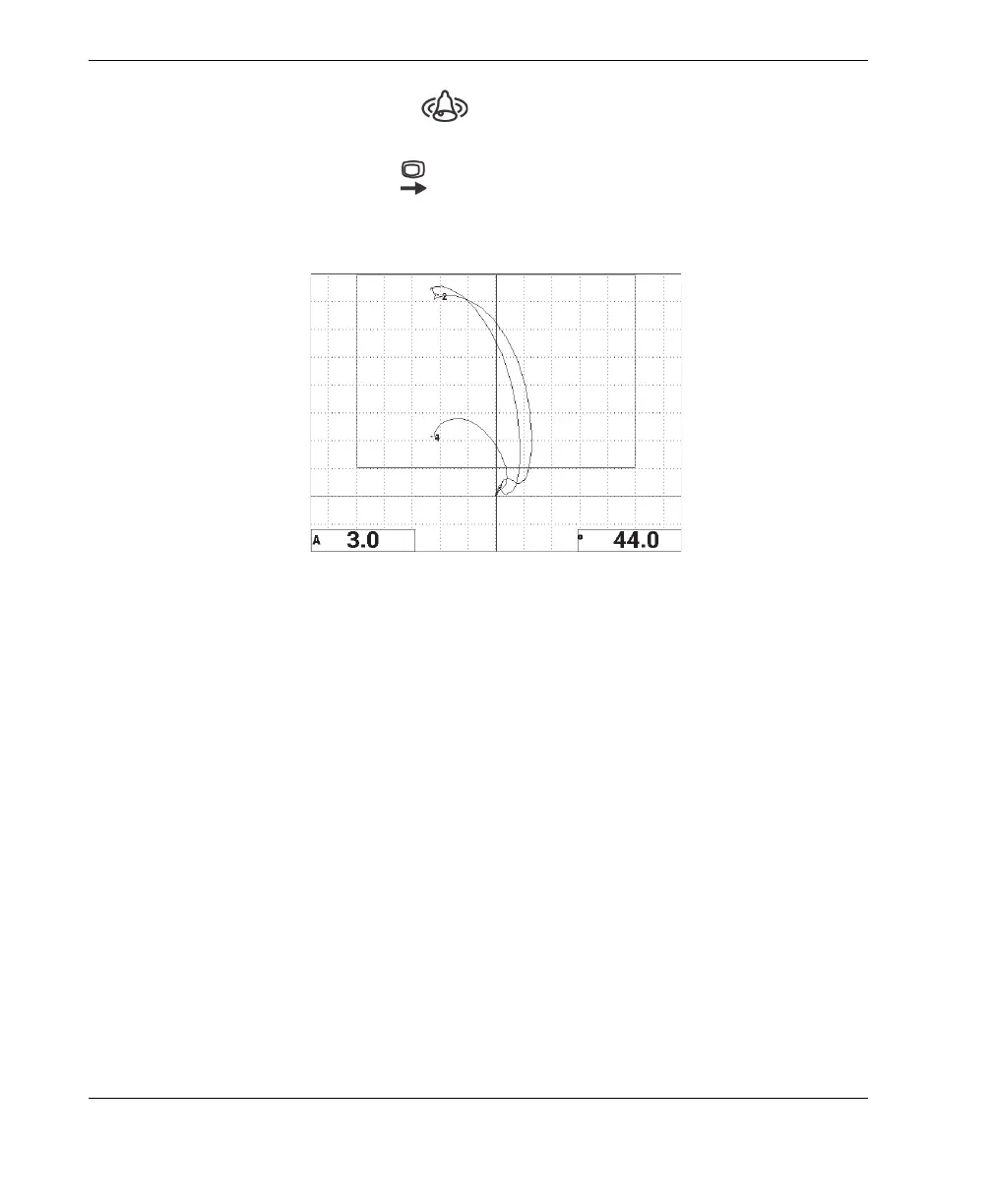

Figure 6‑43 The second scan over the disbonds
To fine-tune the instrument settings
1. Depending on your requirements, set the alarm box parameters, horn, or external
horn (louder). For more details about alarms, see “Alarms, Connectivity, and
Memory Specifications” on page 217.
2. Depending on your requirements, change your real-time readings.
The default real-time readings display the XY signal’s live amplitude and phase.
For information on how to change the real-time readings, see “Displaying Real-
Time Readings” on page 58.
The list of all parameters is shown in Figure 6-44 on page 153.
