DMTA-10045-01EN, Rev. E, August 2016
Applications 151

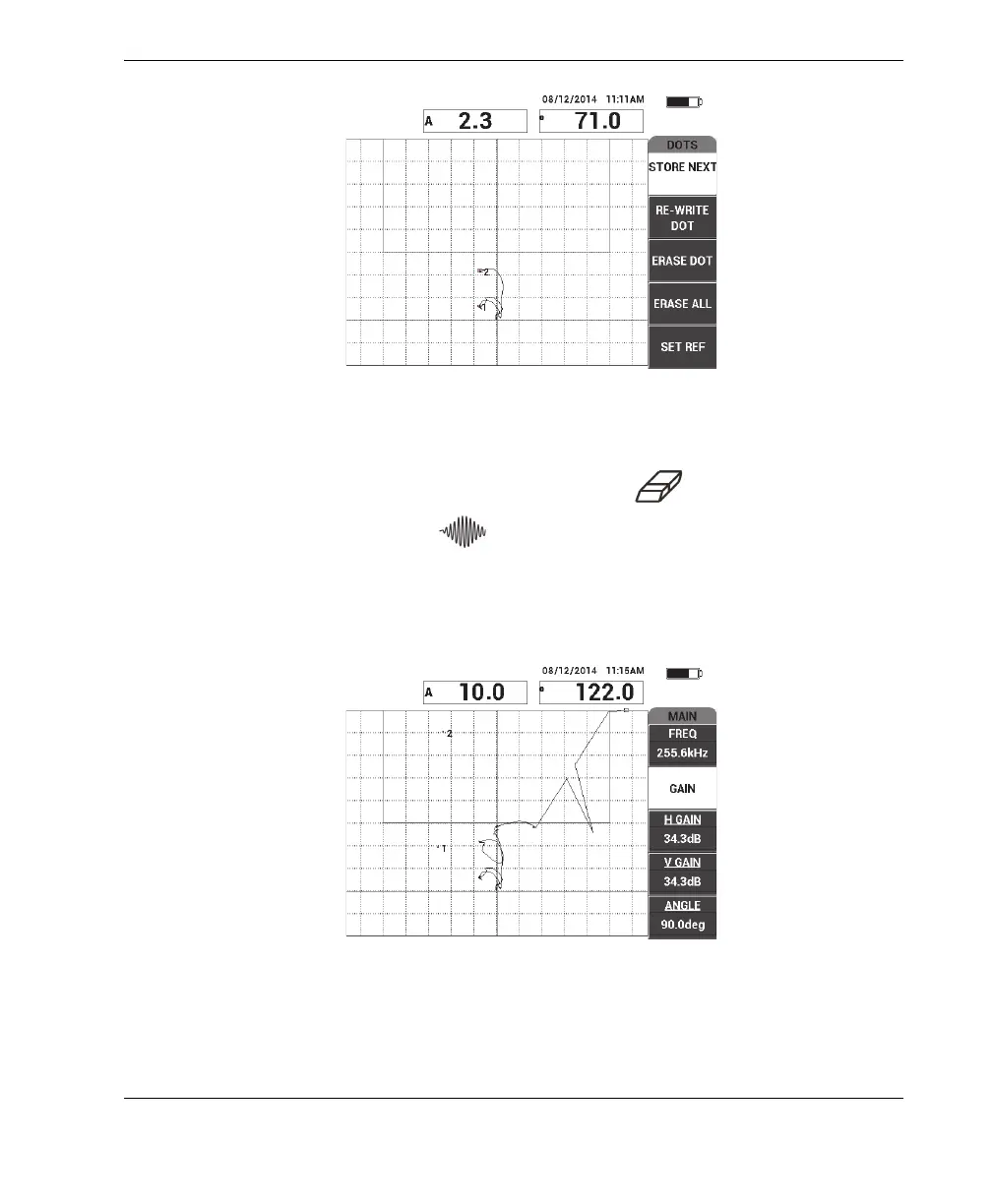

Figure 6‑41 The second dot recorded
8. Release the probe, and then press the ERASE key ( ).
9. Press the MAIN menu key ( ) once to display the MAIN menu screen.
10. Adjust the ANGLE (E key) as necessary, so that the dots move up in the XY view.
11. Adjust the GAIN (B key) to set the higher dot at approximately 90 % of the screen
height (see Figure 6-42 on page 151).
Figure 6‑42 The GAIN adjusted to set the higher dot
