Olympus BondMaster 600 - Figure 7-23 the Microsd Card Location; Figure 7-24 the Backup Command

DMTA-10045-01EN, Rev. E, August 2016
Chapter 7 202

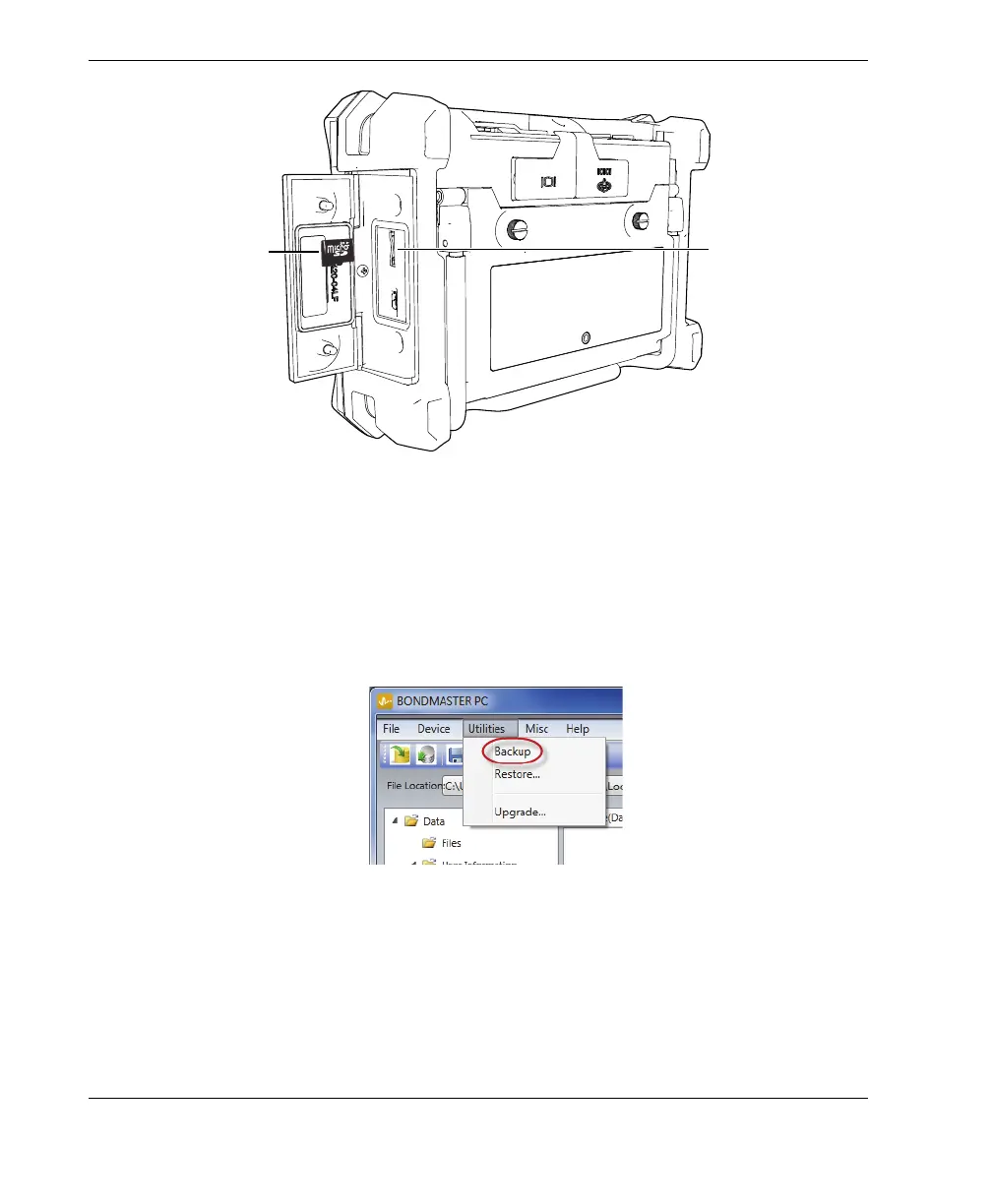

Figure 7‑23 The microSD card location
2. On the BondMaster PC software Utilities menu, select Backup (see Figure 7-24 on
page 202).
The Backup dialog box appears (see Figure 7-25 on page 203).
Figure 7‑24 The Backup command
3. In the Backup dialog box, click Start.
microSD card slot
microSD card
