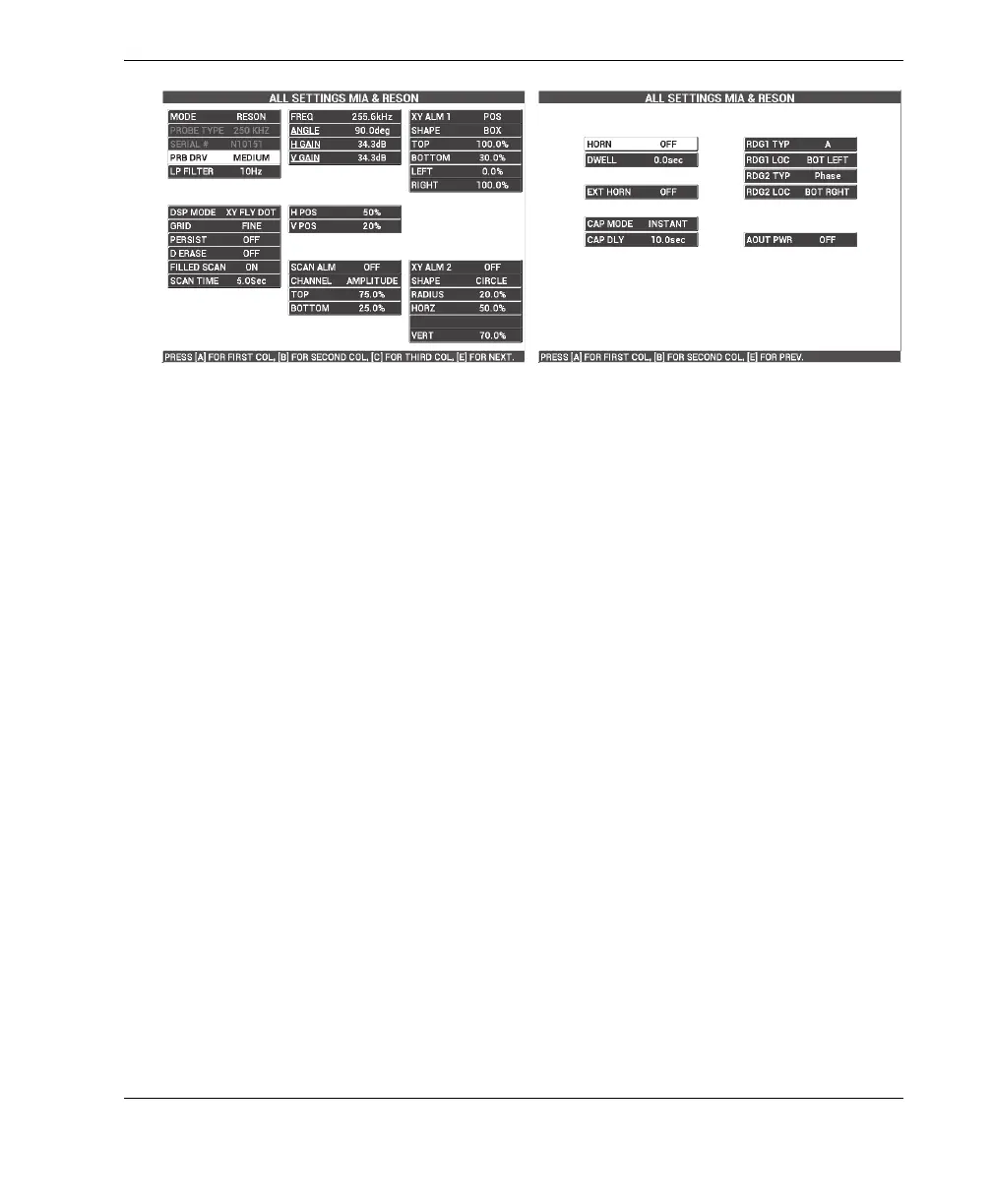

Figure 6‑44 The list of all parameters
6.1.6 Detecting Interply Delamination in Composites — General Procedure
Using Resonance Technique
The resonance technique is the recommended method of detecting delamination
between composite material layers. The location of the interply delamination (or the
thickness of the part) can often be estimated from the signal phase in the XY view.
This procedure shows you how to calibrate the resonance mode for use as a typical
go/no-go test.
Inspection materials are shown in Figure 6-45 on page 154.
