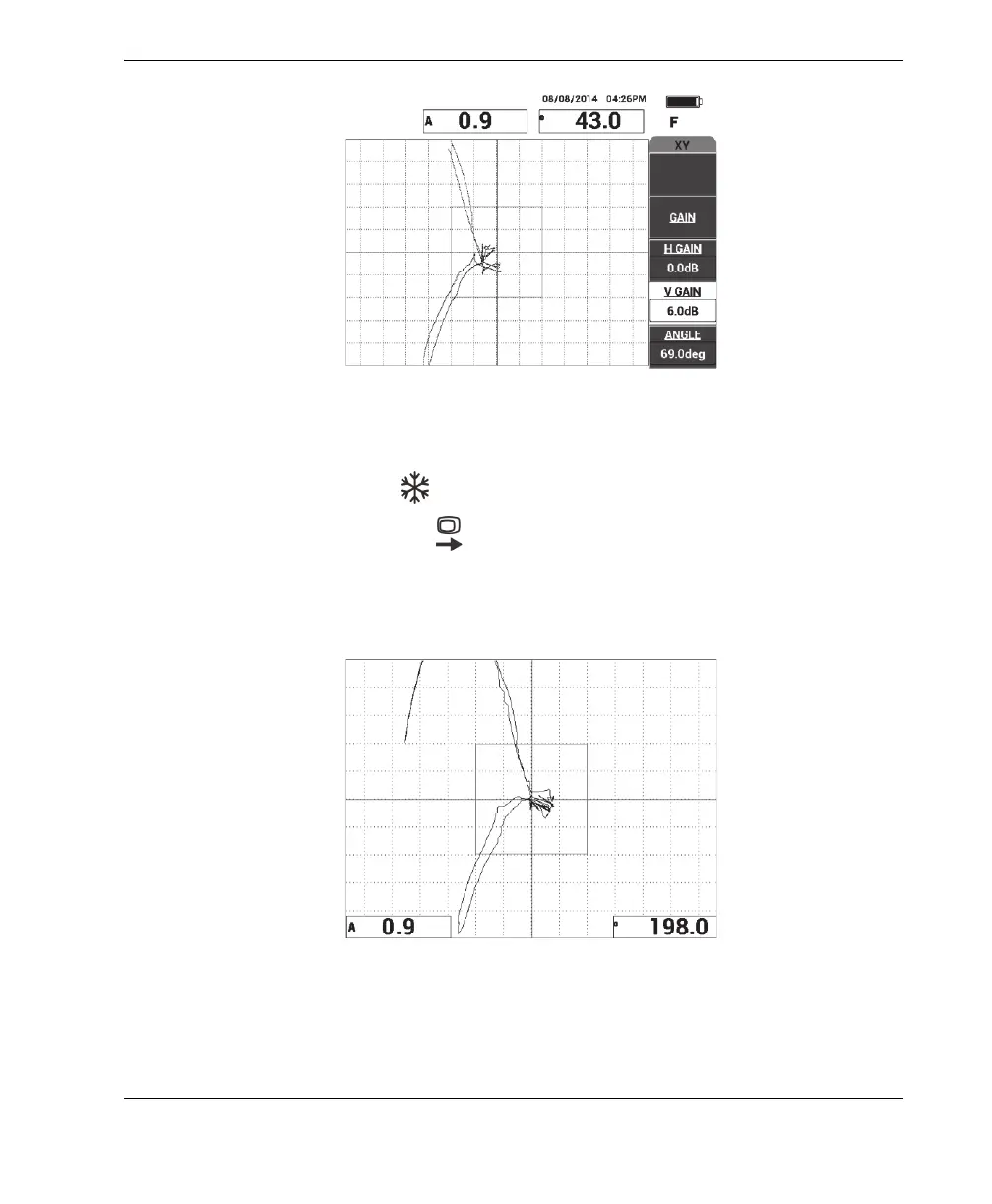

Figure 6‑9 Adjusting the H GAIN and V GAIN
6. Press the FREEZE key ( ) again to restart the acquisition.
7. Press the FULL NEXT key ( ) to toggle to full-screen mode.
The readings display in real time the amplitude (A) and phase (°) of the XY flying
dot (see Figure 6-10 on page 129). For information on how to change the real-time
readings, see “Displaying Real-Time Readings” on page 58.
Figure 6‑10 The amplitude (A) and phase (°) of the XY flying dot
