Olympus BondMaster 600 - Figure 2-9 the Battery Compartment

DMTA-10045-01EN, Rev. E, August 2016
Overview of the BondMaster 600 33

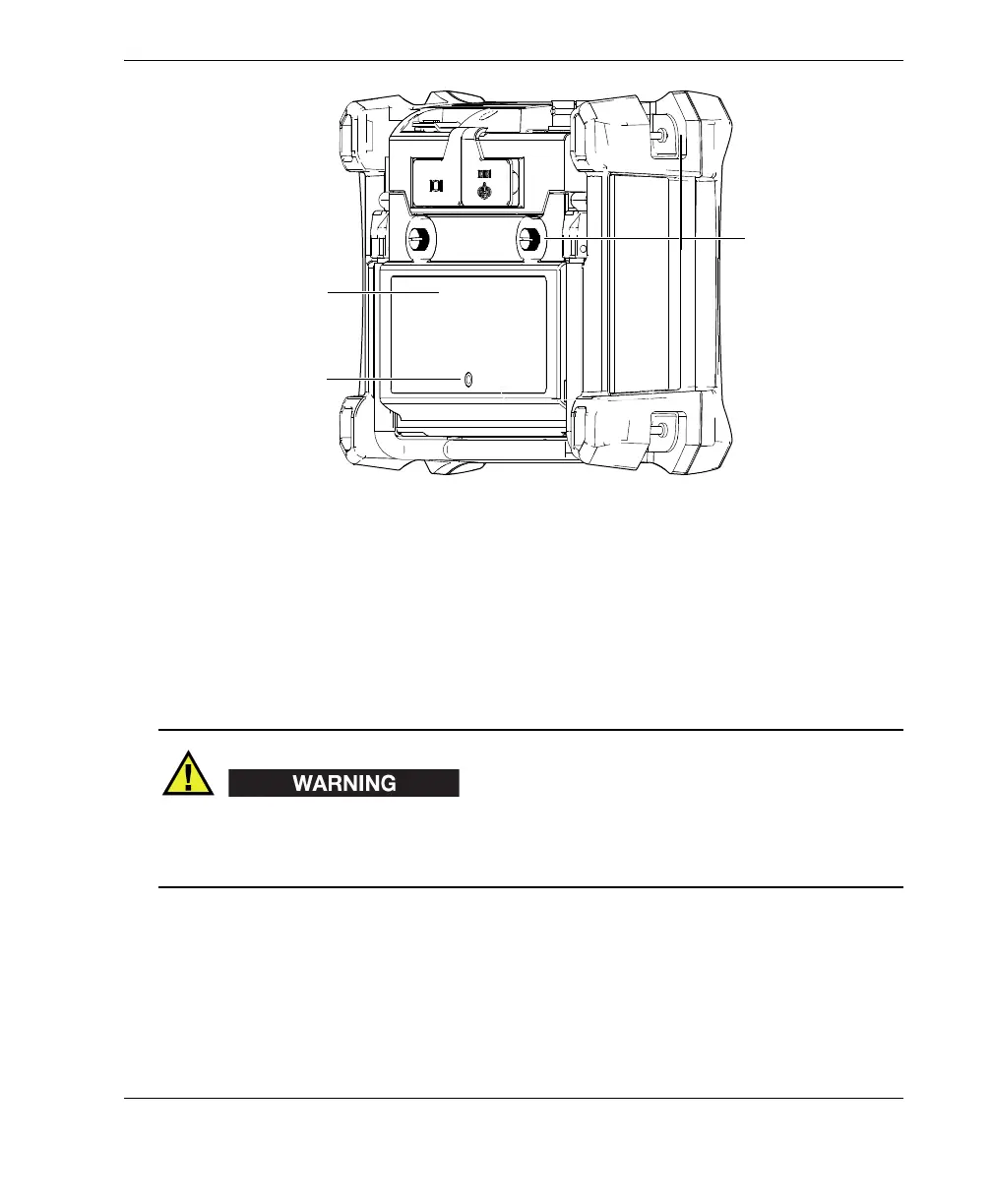

Figure 2‑9 The battery compartment
The BondMaster 600 accepts one rechargeable lithium-ion battery pack (Olympus
P/N: 600-BAT-L-2 [U8760058]) that can be recharged inside the BondMaster 600 or on
the optional external charging base (Olympus P/N: EPXT-EC-X). You can also use the
BondMaster 600 with eight standard AA-size alkaline batteries installed in a battery
holder (Olympus P/N: 600-BAT-AA [U8780295]) for extended portable use.
If the BondMaster 600 is to be used with a rechargeable battery, only use the Olympus
battery, P/N: 600-BAT-L-2 [U8760058]. Using any other type of battery might cause an
explosion and injury.
Membrane vent
hole
Thumb screws (two)
Battery compartment
cover
WARNING
