Olympus BondMaster 600 - Figure 6-34 Adjusting the Signal Amplitude; Figure 6-35 the Second Scan over the Disbond and Repaired Area

DMTA-10045-01EN, Rev. E, August 2016
Chapter 6 146

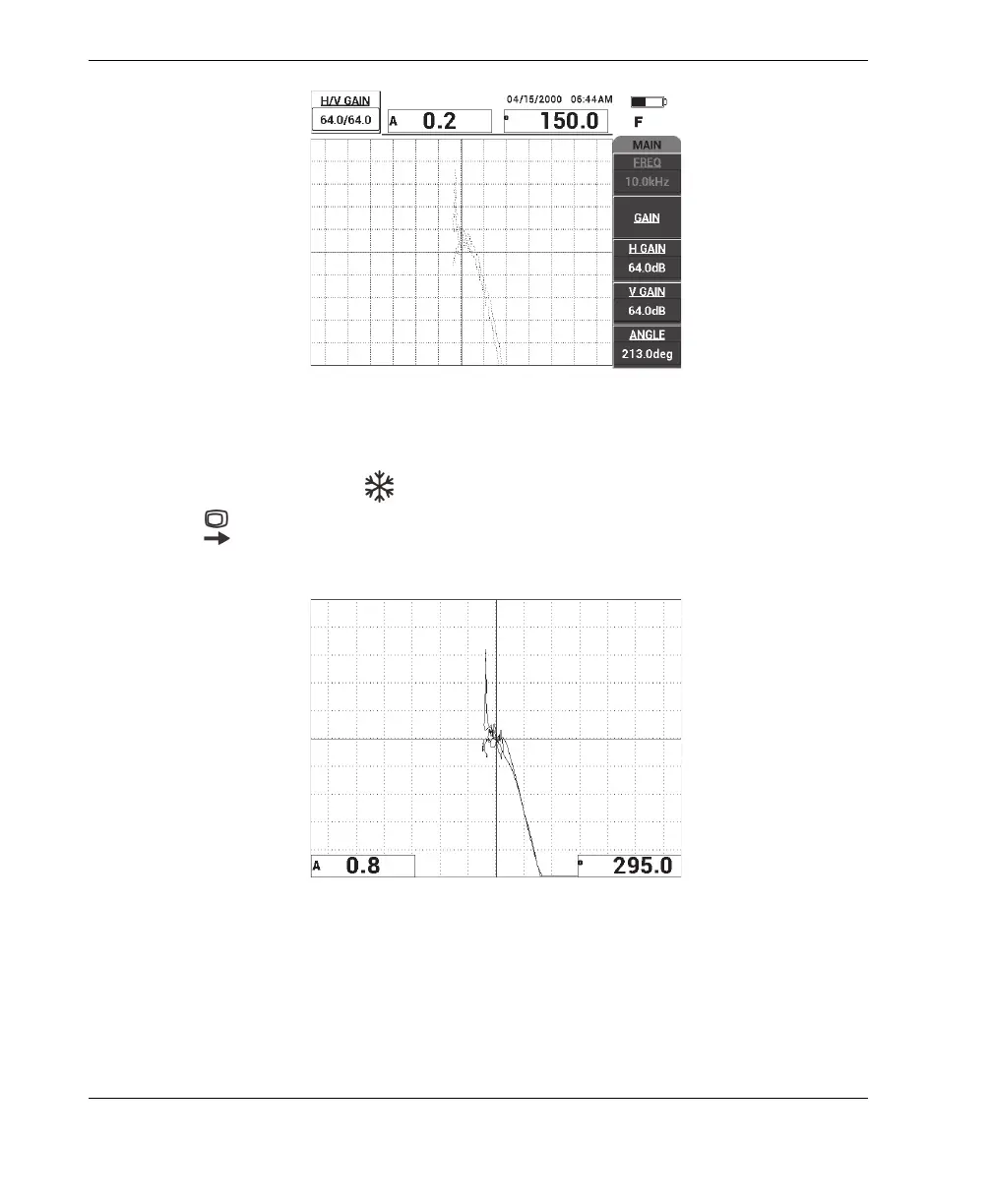

Figure 6‑34 Adjusting the signal amplitude
9. Press the FREEZE key ( ) to unfreeze the acquisition, press the FULL NEXT
key ( ) to display the full screen, and then slowly scan over the disbond and
repaired area again (see Figure 6-35 on page 146).
Figure 6‑35 The second scan over the disbond and repaired area
