Olympus BondMaster 600 - Figure 6-67 the GAIN Adjustment to the Air Signal Dot; Figure 6-68 the Second Scan over the Defect(S)

DMTA-10045-01EN, Rev. E, August 2016
Chapter 6 172

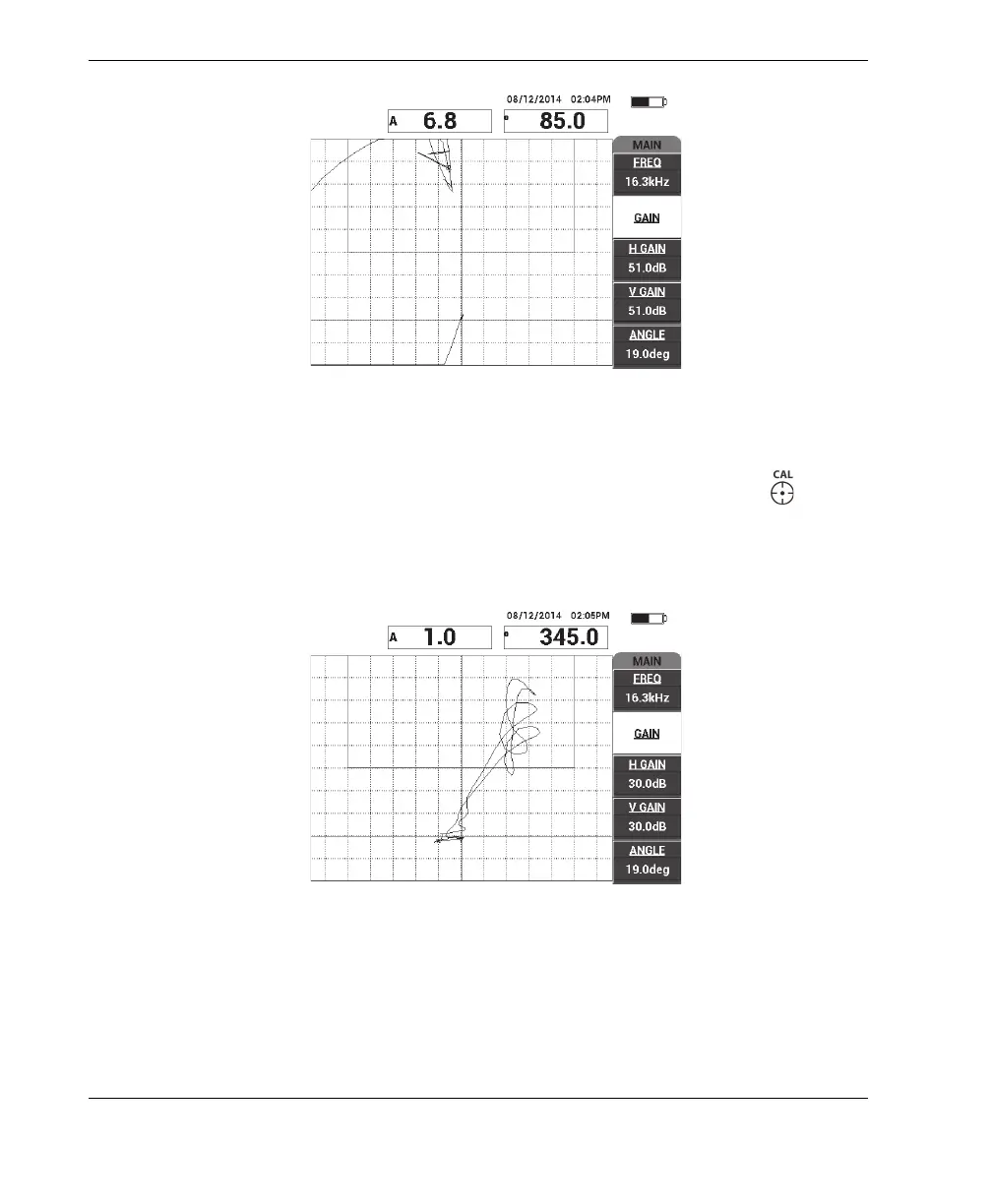

Figure 6‑67 The GAIN adjustment to the air signal dot
4. Place the probe tip on a defect-free section, press the CAL NULL key ( ) again,
and then slowly scan over the defect(s); make sure that the detection is
satisfactory, and if necessary, adjust the GAIN, HGAIN, or VGAIN (see
Figure 6-68 on page 172).
Figure 6‑68 The second scan over the defect(s)
