DMTA-10045-01EN, Rev. E, August 2016
Chapter 6 134

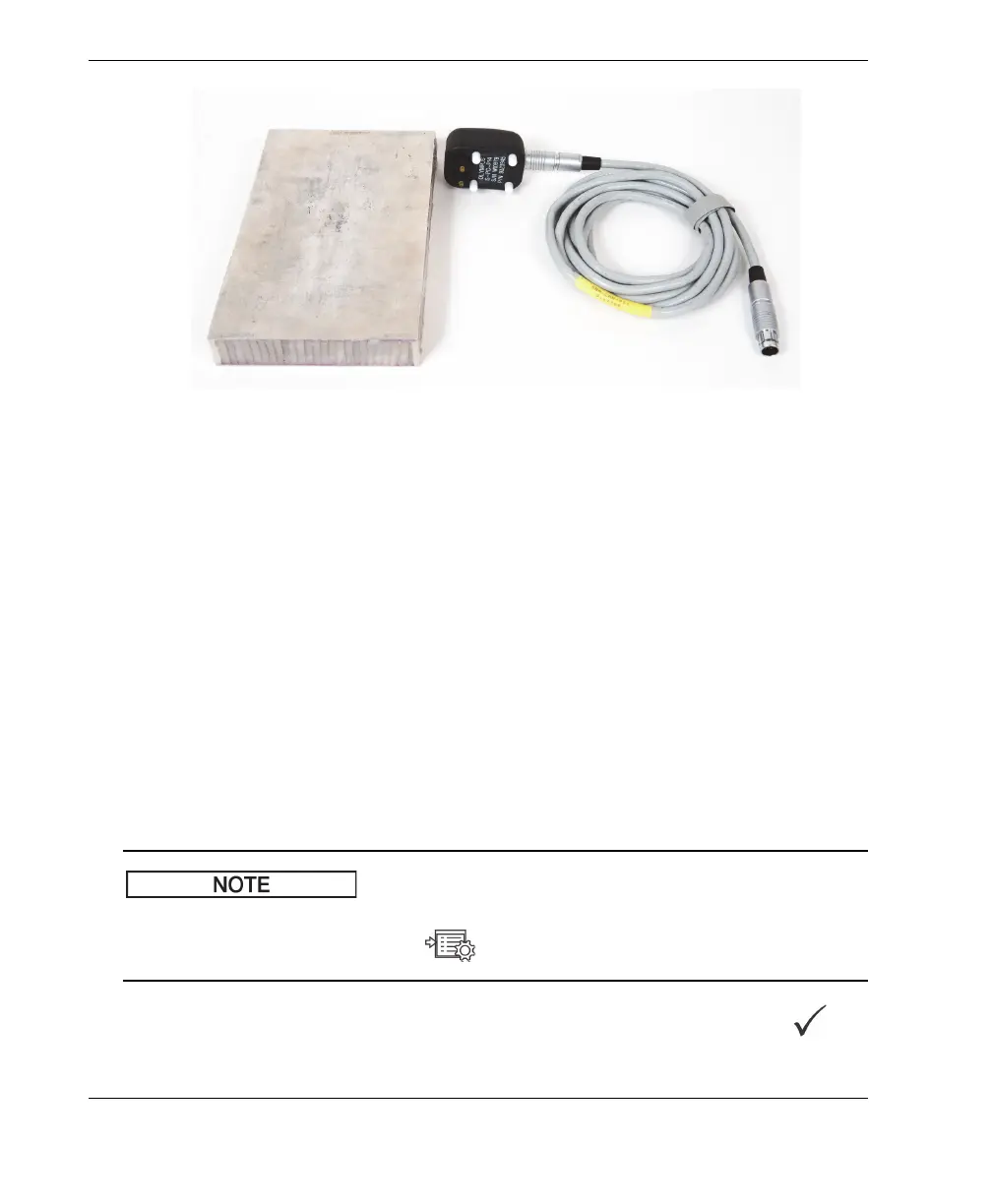

Figure 6‑17 Materials — skin‑to‑core disbonds in tapered geometry
The following products are used in this procedure:
• Honeycomb composite training standard: 25 mm (1 in.) thick, 1 mm top and
bottom aluminum skin and aluminum core. Includes a 25 mm (1 in.) disbond on
each side. P/N: NEC-6312 [U8860498]
• Cable for pitch-catch and MIA modes, 1.83 m (6 ft).
P/N: SBM-CPM-P11 [U8800058]
• Pitch-catch probe for general use; tip spacing 14 mm. P/N: S-PC-P14 [U8800601]
To set the initial BondMaster 600 configuration
1. Connect the probe and the cable to the PROBE connector of the BondMaster 600.
2. When prompted, press CONTINUE (A key) to accept the PowerLink probe
information.
If you are using a non-PowerLink probe, access the APPL SELECT menu (A key)
using the ADV SETUP menu key ( ).
3. Select the Skin To Core Disbonds (Tapered) application, and then press to
accept (see Figure 6-18 on page 135).
NOTE
