The following parameters can be adjusted on the PC (RF) main menu (see Figure 5-4
on page 74):
• FREQ (frequency)
• RF GAIN
•WIDTH
•GATE
•RF DISPLAY
• CYCLES
• H/V GAIN (horizontal/vertical gain)
• H GAIN (horizontal gain)
• V GAIN (vertical gain)
• ANGLE
• REP RATE (repetition rate)
• PRB DRV (probe drive)
• LP FILTER (low pass filter)

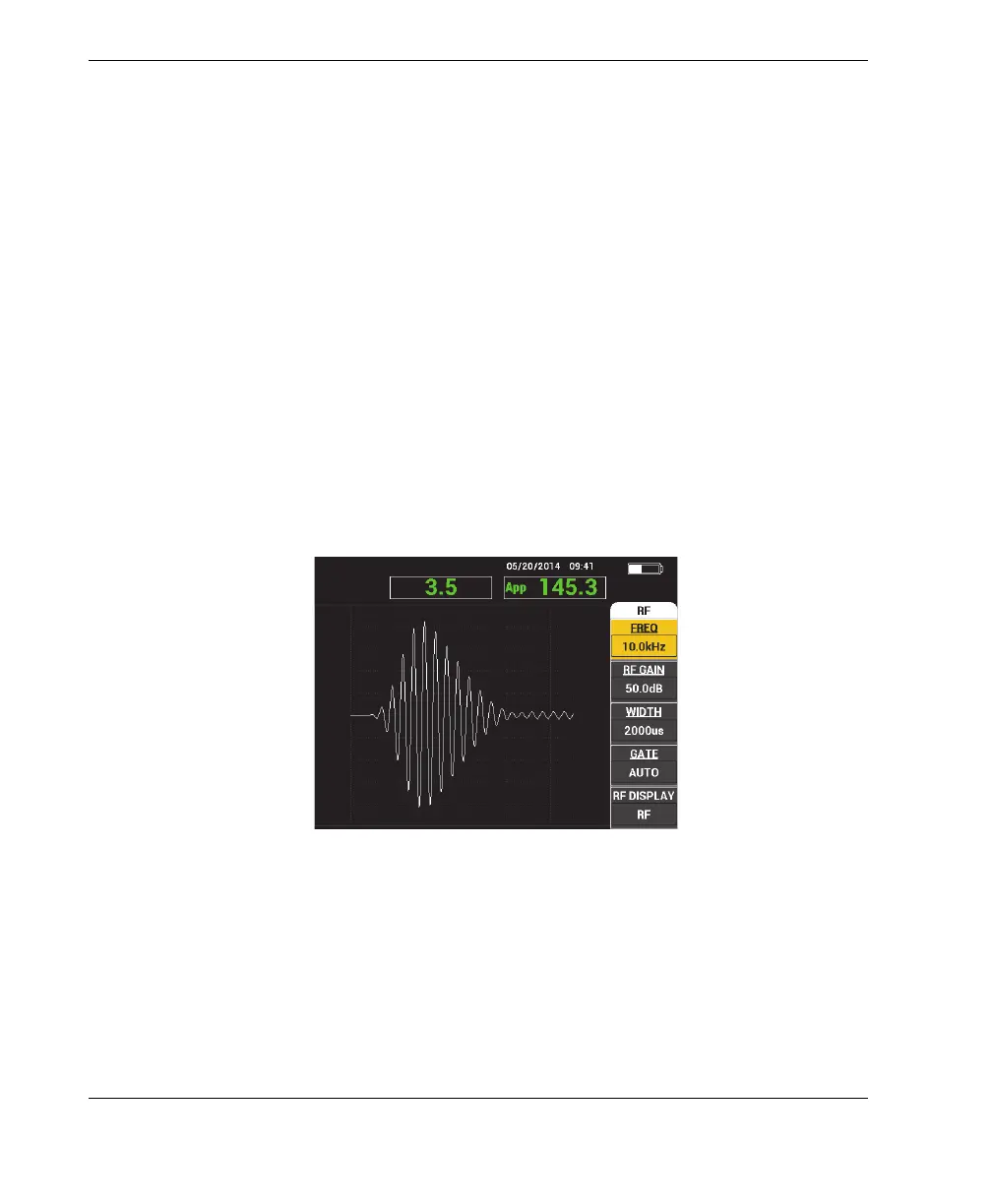

Figure 5‑4 The PC (RF) main menu
