DMTA-10045-01EN, Rev. E, August 2016
Control Functions
81
H GAIN (horizontal gain)
The H GAIN (horizontal gain) setting controls the BondMaster 600 horizontal
gain.
To change the H GAIN setting, press the MAIN menu key ( ) followed by
the C key, and then rotate the knob to the desired horizontal gain value.
V GAIN (vertical gain)
The V GAIN (vertical gain) setting controls the BondMaster 600 vertical gain.
To change the V GAIN setting, the MAIN menu key ( ) followed by the
D key, and then rotate the knob to the desired vertical gain value.
5.3.3 MIA Mode — MAIN Menu
In the mechanical impedance analysis (MIA) mode, a frequency sweep with the probe
on a good part is compared to the frequency sweep of the probe on a defective part.
This determines a suitable frequency for performing the test (see Figure 5-6 on
page 81).

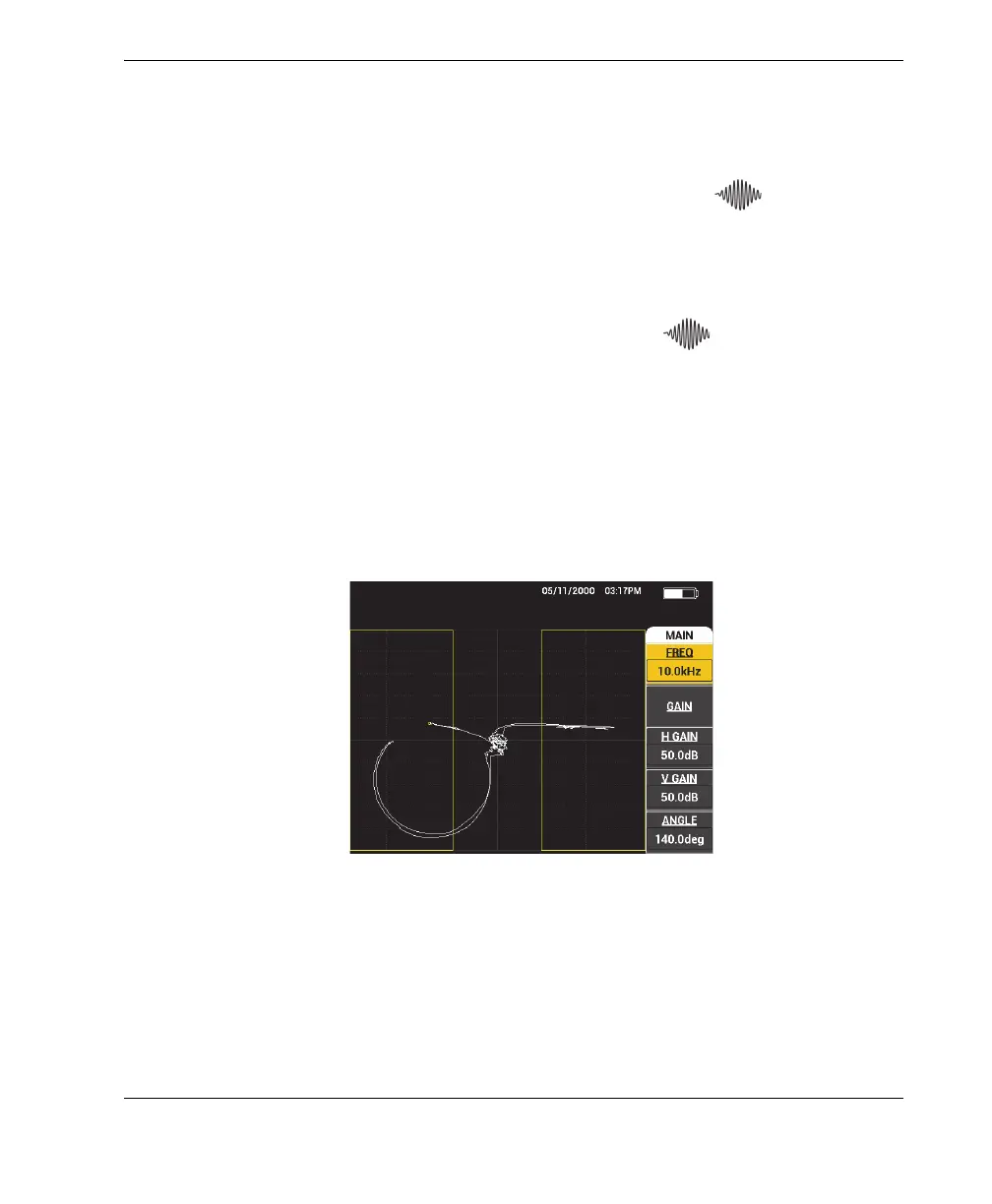

Figure 5‑6 The MIA Mode Display
The following parameters can be adjusted on the MIA MAIN menu:
• FREQ (frequency)
• GAIN (combined)
• H GAIN (horizontal gain)
