3. While the probe is still on a good part of the standard, press the CAL NULL key
().
4. Scan over the defects and ensure that the signal goes outside the alarm box.
Readjust the GAIN as needed.
5. Press the FULL NEXT key ( ) to display the full screen, and then scan over
defects again (see Figure 6-20 on page 136).

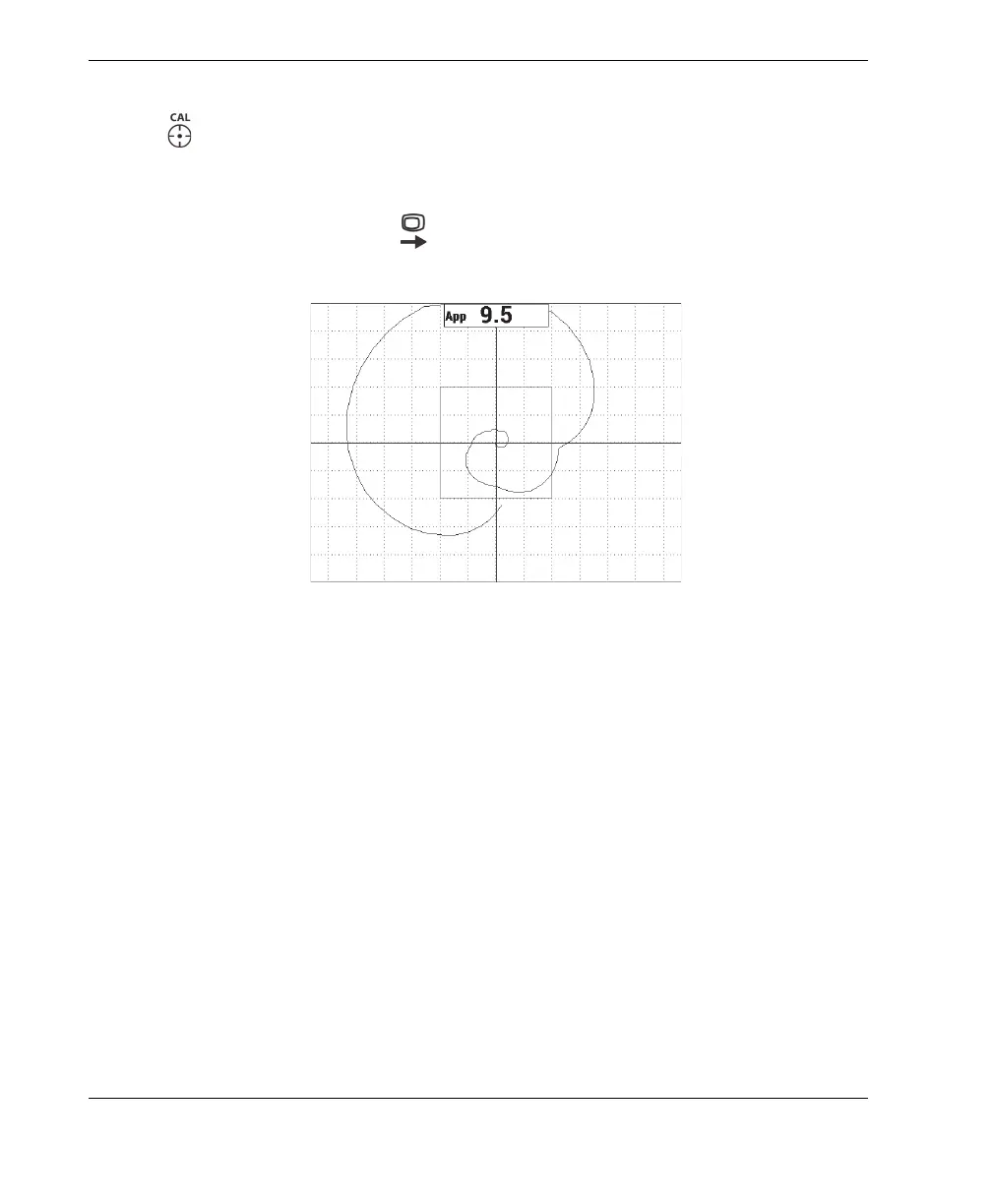

Figure 6‑20 The full‑screen display of the scan
To fine-tune the instrument settings
1. Depending on your requirements, set the alarm box parameters, horn, or external
horn (louder). For more details about alarms, see “Alarms, Connectivity, and
Memory Specifications” on page 217.
2. Depending on your requirements, change your real-time readings.
The default real-time readings display the XY signal’s live peak-to-peak
amplitude. For information on how to turn off the real-time readings, see
“Displaying Real-Time Readings” on page 58.
The list of all parameters is shown in Figure 6-21 on page 137.
