Olympus BondMaster 600 - Figure 6-11 RUN 1 - RF Signal; Figure 6-12 RUN 2 - RF + XY (Default View)

DMTA-10045-01EN, Rev. E, August 2016
Chapter 6 130
The new SCAN display and alternate RUNs
8. To instantly switch between various signal representations during inspection (in
full or normal screen mode), press the RUN key ( ) repeatedly to obtain the
desired RUN.
The available RUNs are shown in Figure 6-11 on page 130 through Figure 6-15 on
page 132.

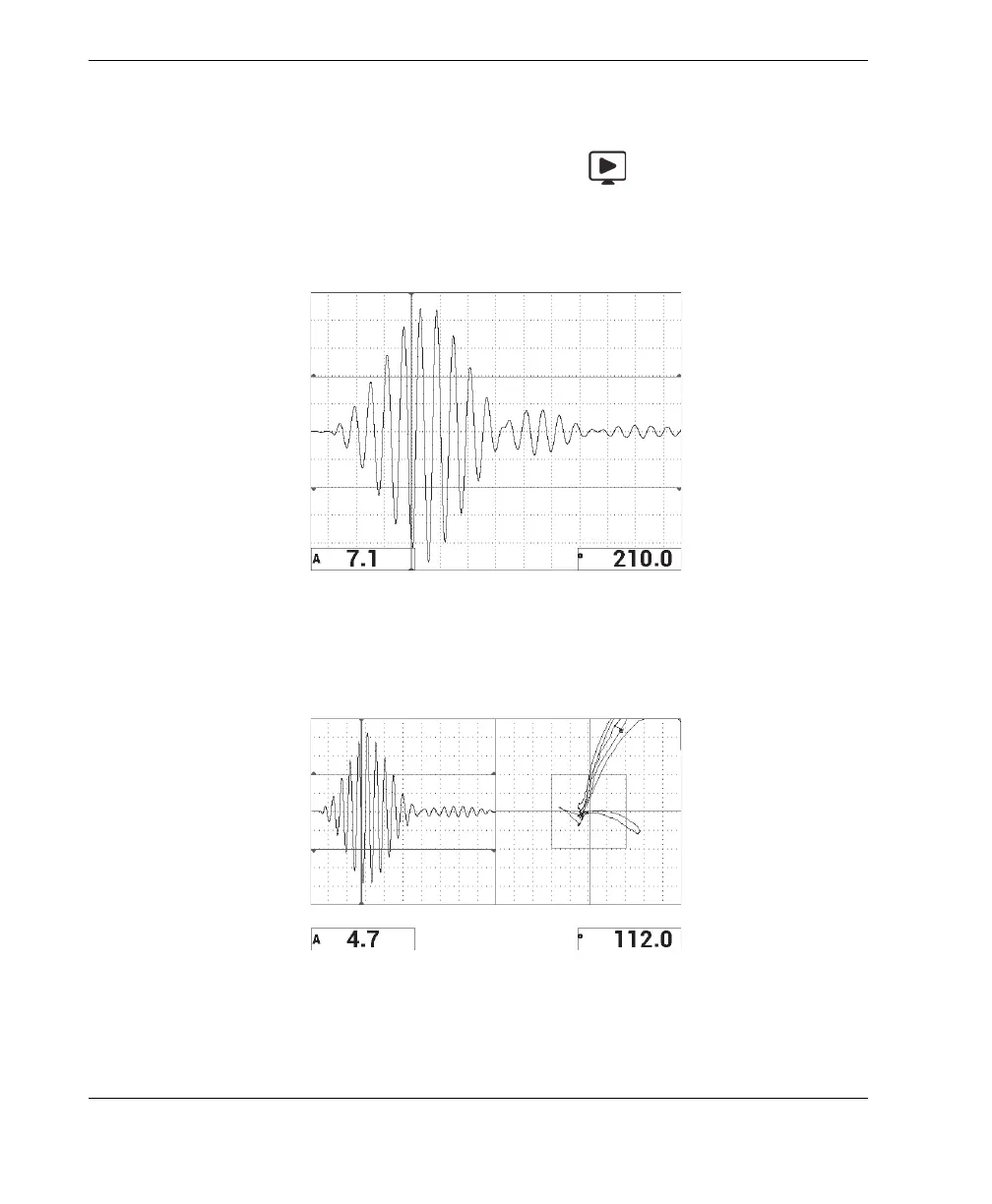

Figure 6‑11 RUN 1 — RF signal
Figure 6‑12 RUN 2 — RF + XY (default view)
