DMTA-10045-01EN, Rev. E, August 2016
Chapter 6 140
4. Press ANGLE (E key), and then adjust the signal angle so that the signal points
upwards towards the alarm box (see Figure 6-25 on page 140).

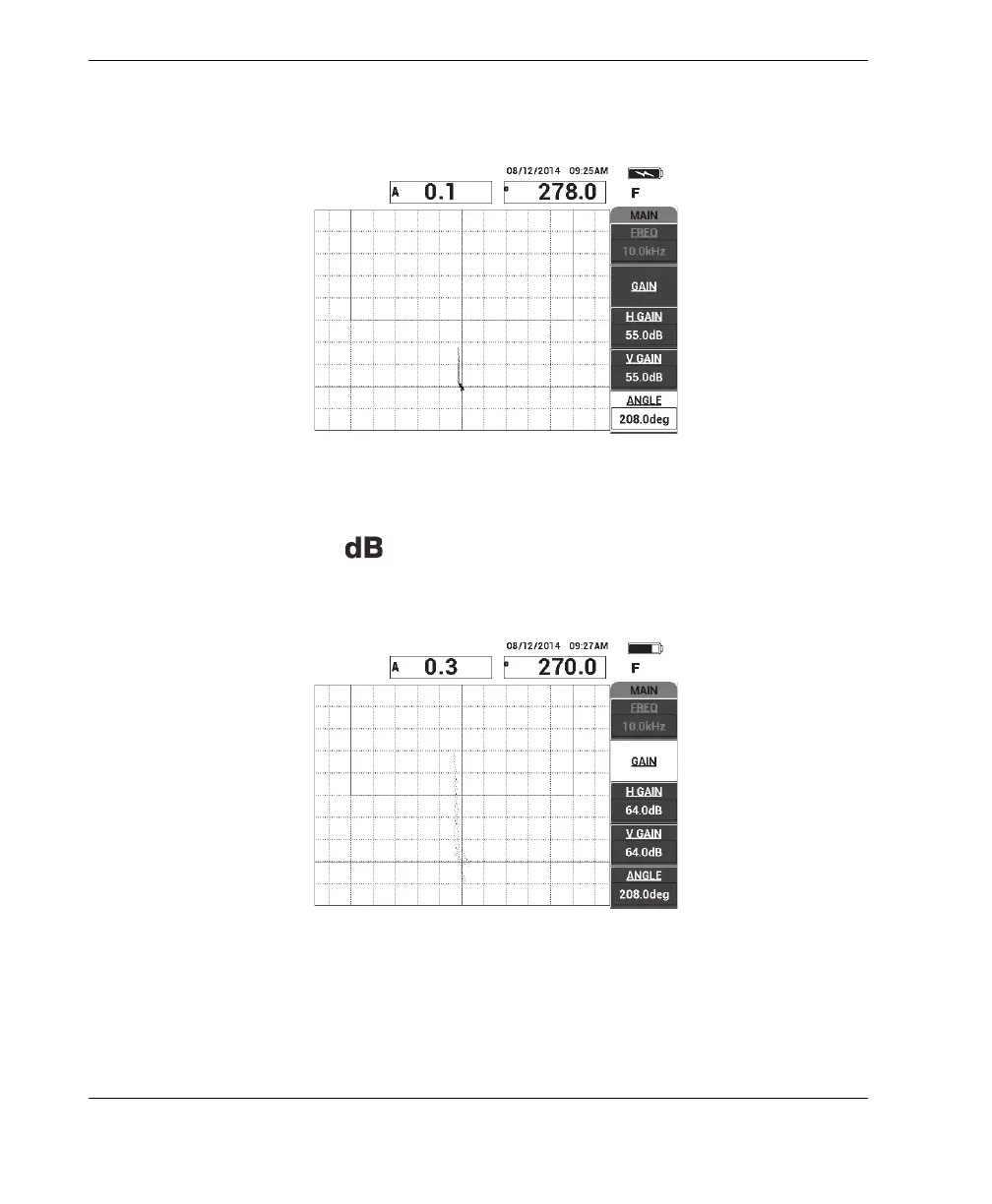

Figure 6‑25 The signal angle adjusted upwards
5. Press the GAIN key ( ), and then adjust the signal amplitude so that the
disbond signal enters the alarm box and extends approximately 5 divisions from
the null position (cross hairs) [see Figure 6-26 on page 140].
Figure 6‑26 The signal amplitude adjusted to enter the alarm box
