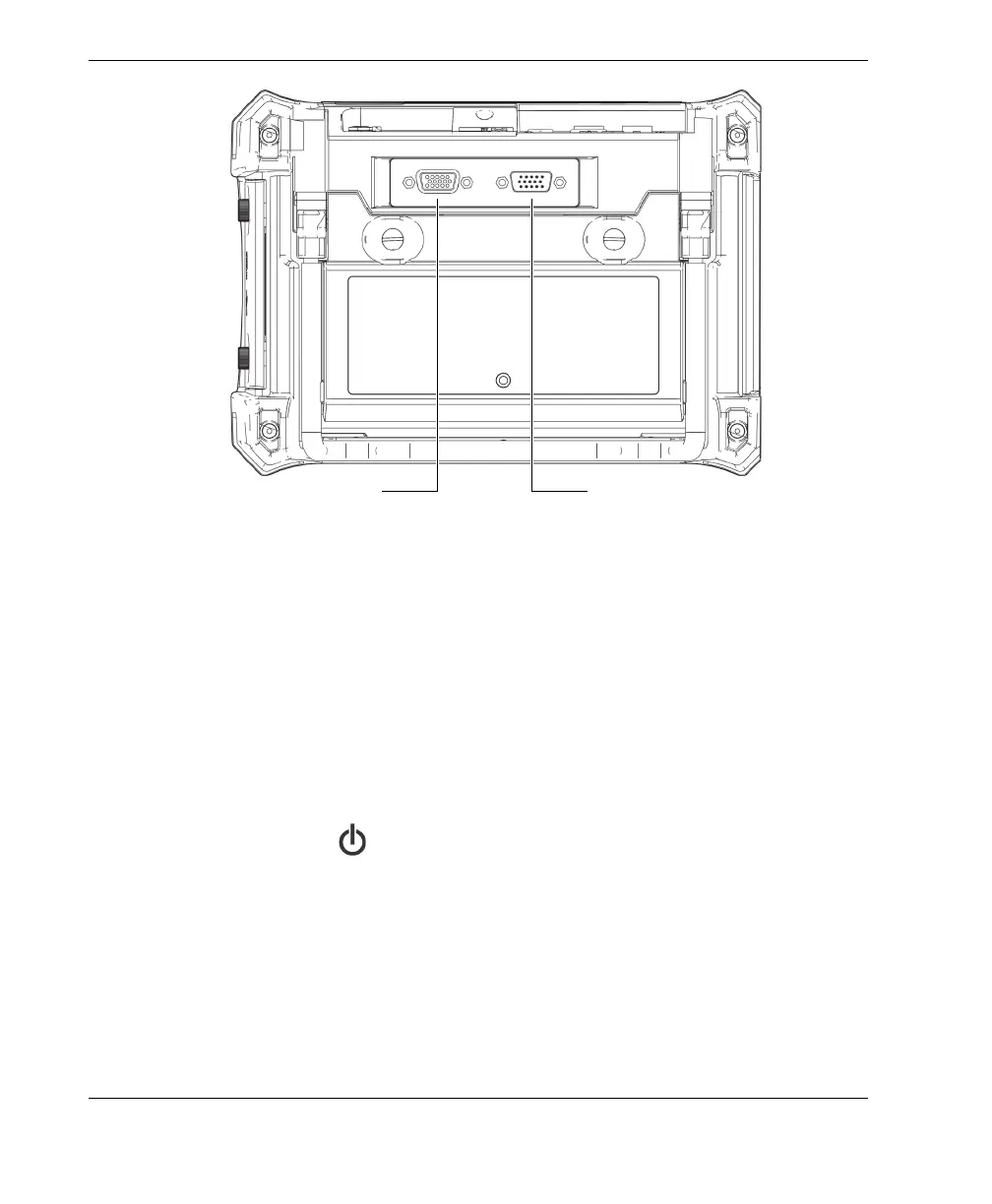

Figure 2‑4 The I/O and VGA OUT connectors
2.3 Power Requirements
The BondMaster 600 is designed to operate using three power supply methods:
• Directly from the BondMaster 600 charger/adaptor
• Internal lithium-ion battery
• Internal alkaline battery holder
Press the power button ( ) to turn on the BondMaster 600 (see Figure 2-5 on
page 29). Pressing this button once causes an initial beep, followed by the startup
screen and a second beep approximately five seconds later.
VGA OUT connector
I/O connector
