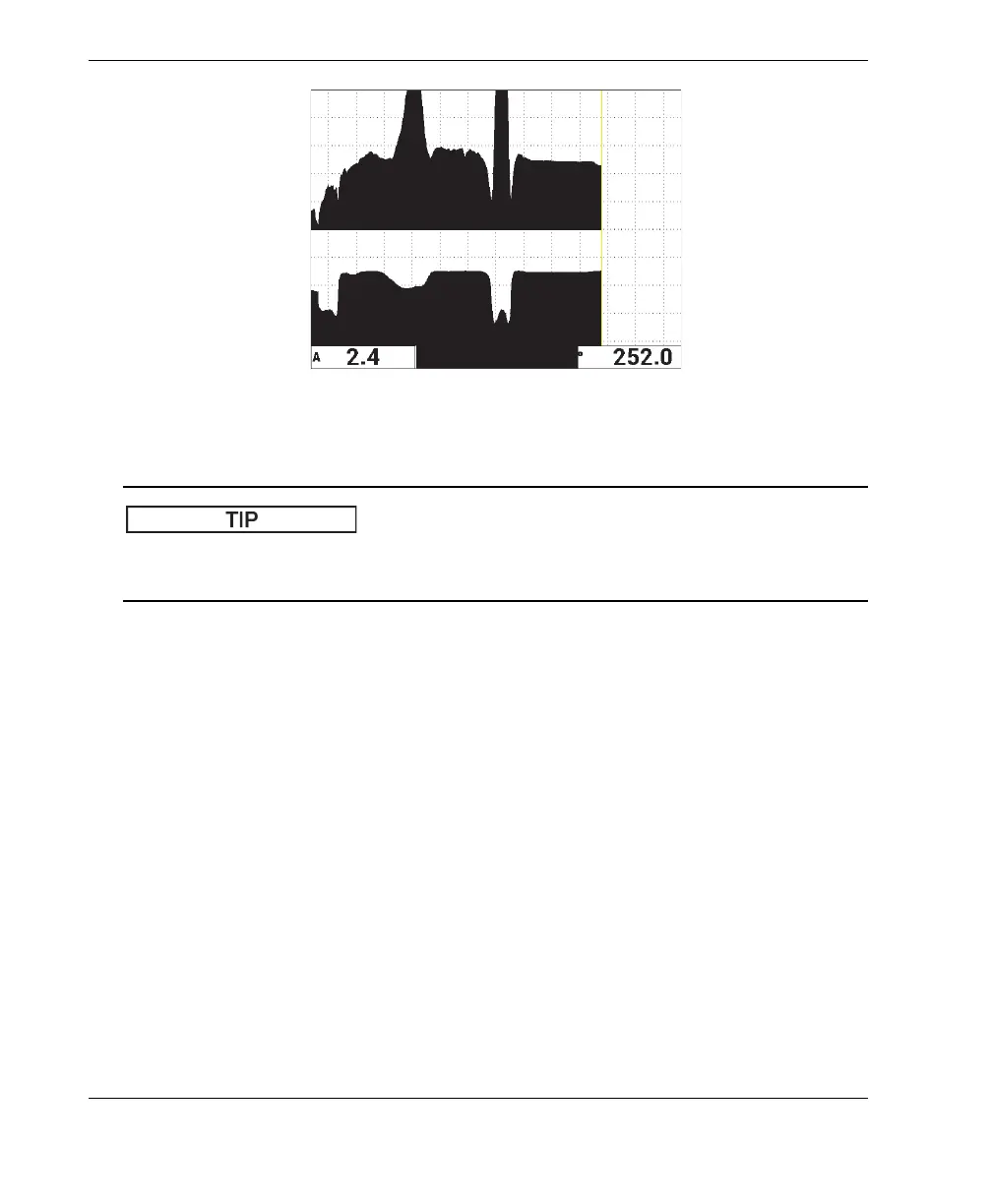

Figure 6‑15 RUN 5 — SCAN
To obtain clearer phase readings in the SCAN views, it is recommended to NULL the
probe in the air.
To fine-tune the instrument settings
1. Depending on your requirements, set the alarm box parameters, horn, or external
horn (louder). For more details about alarms, see “Alarms, Connectivity, and
Memory Specifications” on page 217.
2. Depending on your requirements, change your real-time readings.
The default real-time readings display the XY signal’s live amplitude and phase.
For information on how to change the real-time readings, see “Displaying Real-
Time Readings” on page 58.
The list of all parameters is shown in Figure 6-16 on page 133.
