Panasonic FP7 Series Command Reference Manual

17.32 EIPMSEND (EIP Message Send)
■

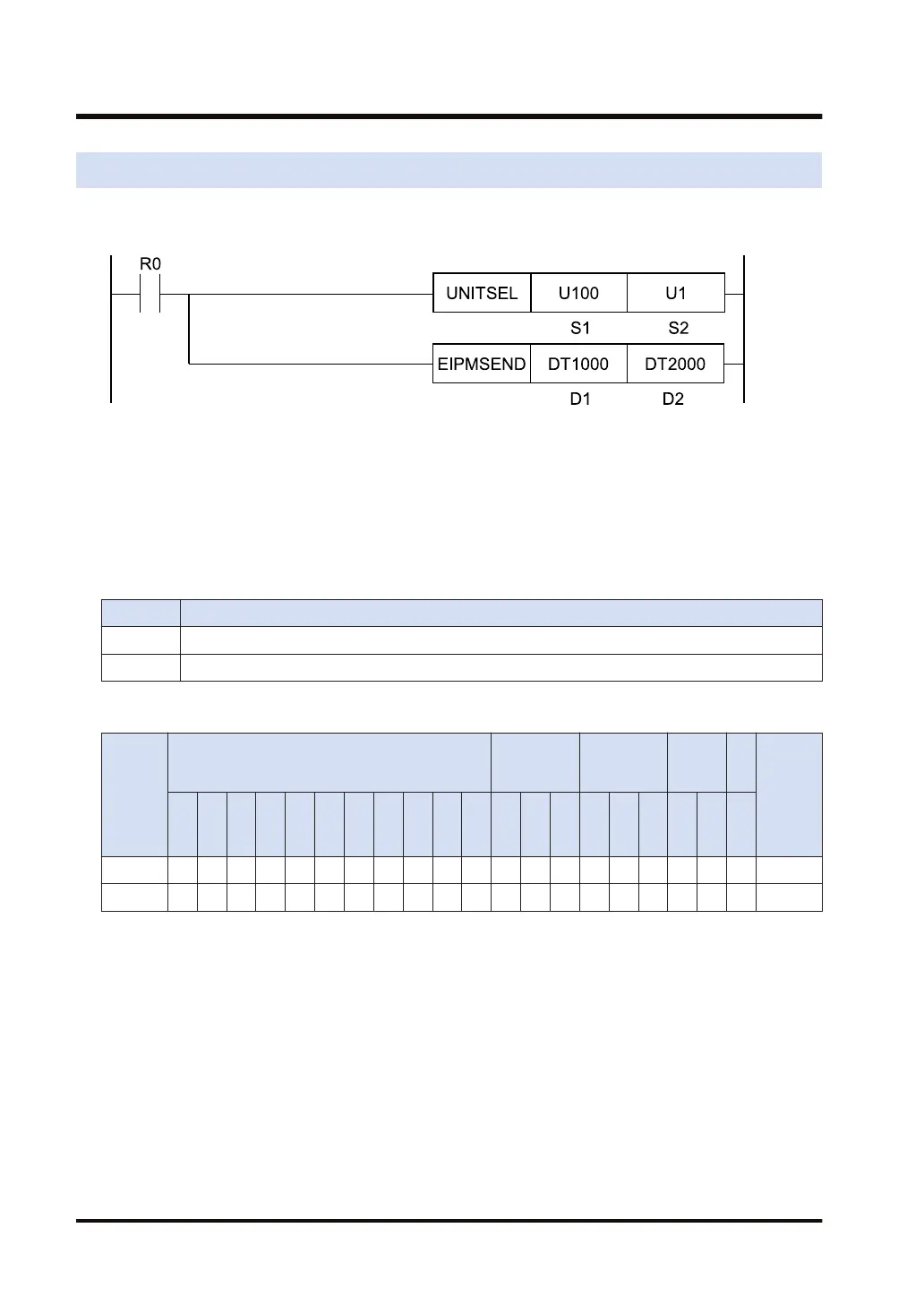

Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction. Set a desired value for [S2].
■
Available operation units
No operation unit.
■
List of operands
Operand Description
D1 Specify the device address storing received data.
D2 Specify the device address for setting execution results of instructions.
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
D1 ● ● ● ● ● ● ●
D2 ● ● ● ● ● ● ●
■
Outline of operation
● This instruction sends an EIP message when the execution condition turns ON.
● This instruction specifies the Ethernet unit to be targeted by the UNITSEL instruction.
● A UCMM message set by the EIPMSATT and EIPMBODY instructions is sent.
● The response is stored.
● Call this instruction after X6B (EIP preparation done) turns ON. If it is called before X6B turns
ON, the EIP communication preparation incomplete error is returned.
● The instruction cannot be used in interrupt programs.
● Multiple EIPMSEND instructions cannot be executed simultaneously. A multiple execution
error occurs. The next execution must be executed after confirming the completion of an
instruction.
17.32 EIPMSEND (EIP Message Send)
17-158 WUME-FP7CPUPGR-12
