Panasonic FP7 Series Command Reference Manual

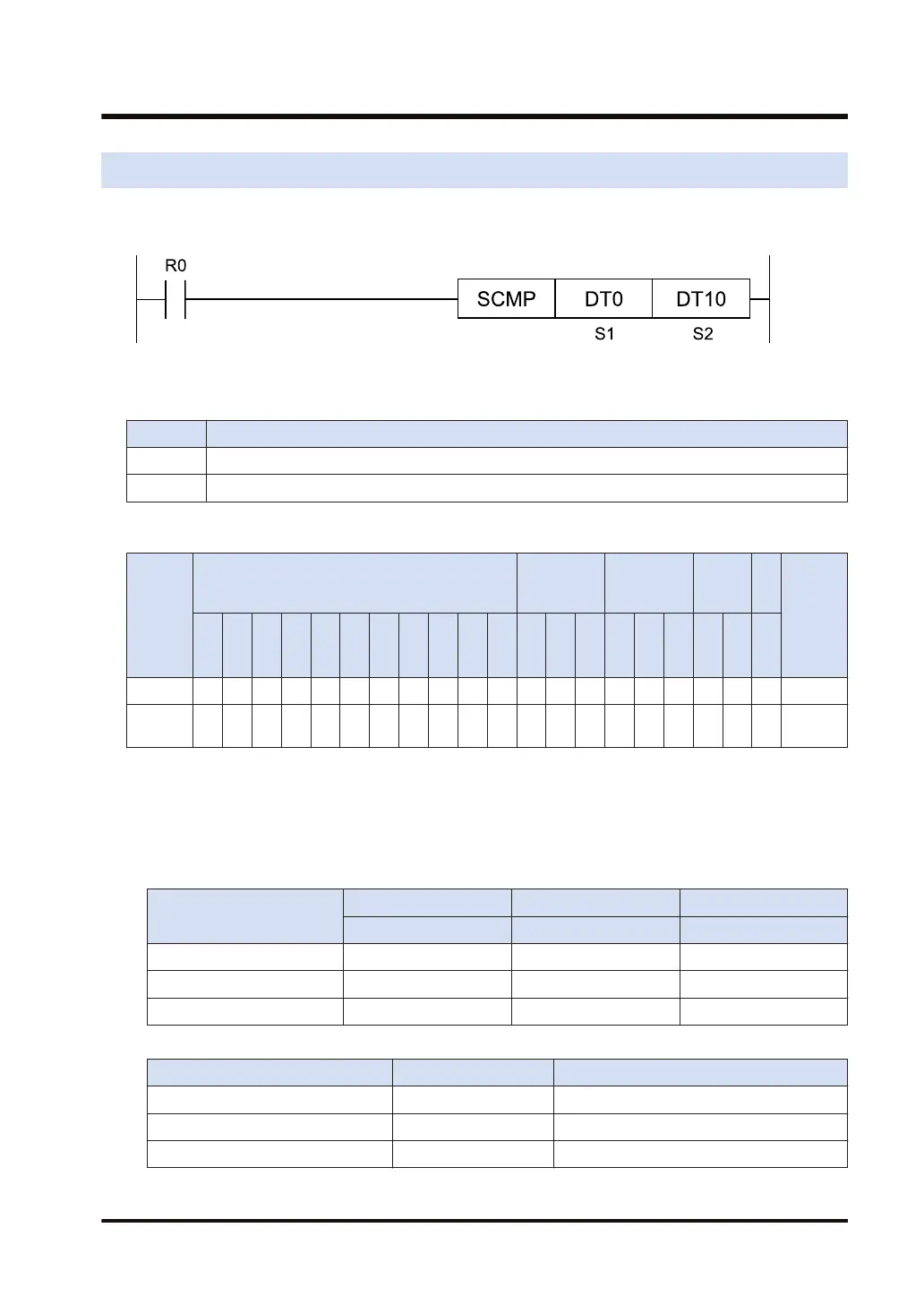

14.16 SCMP (String Compare)
■
Ladder diagram
■
List of operands
Operand Description
S1 Character string 1 for comparison
Example 1 Character string 2 for comparison
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ● ●
Exampl
e 1
● ● ● ● ● ● ● ●
■
Outline of operation
● This instruction compares the string specified by [S1] and the string specified by [S2]. The
comparison result is output to the system relays SRA to SRC (assessment flags for the
comparison instruction).
● Comparison flags (system relays SRA to SRC) are processed as follows.
SRA SRB SRC
> = <
[S1] < [S2] OFF OFF ON
[S1] = [S2] OFF ON OFF
[S1] > [S2] ON OFF OFF
● If the numbers of characters to be compared are different, they are processed as follows.
[S1] [S2]
"ABCDE" = "ABCDE"
“ABCD” < "ABCDE"
"B" > "ABCDE"
14.16 SCMP (String Compare)
WUME-FP7CPUPGR-12 14-81
