17.28 ETSTAT (Acquiring EtherNet/IP Information)
■

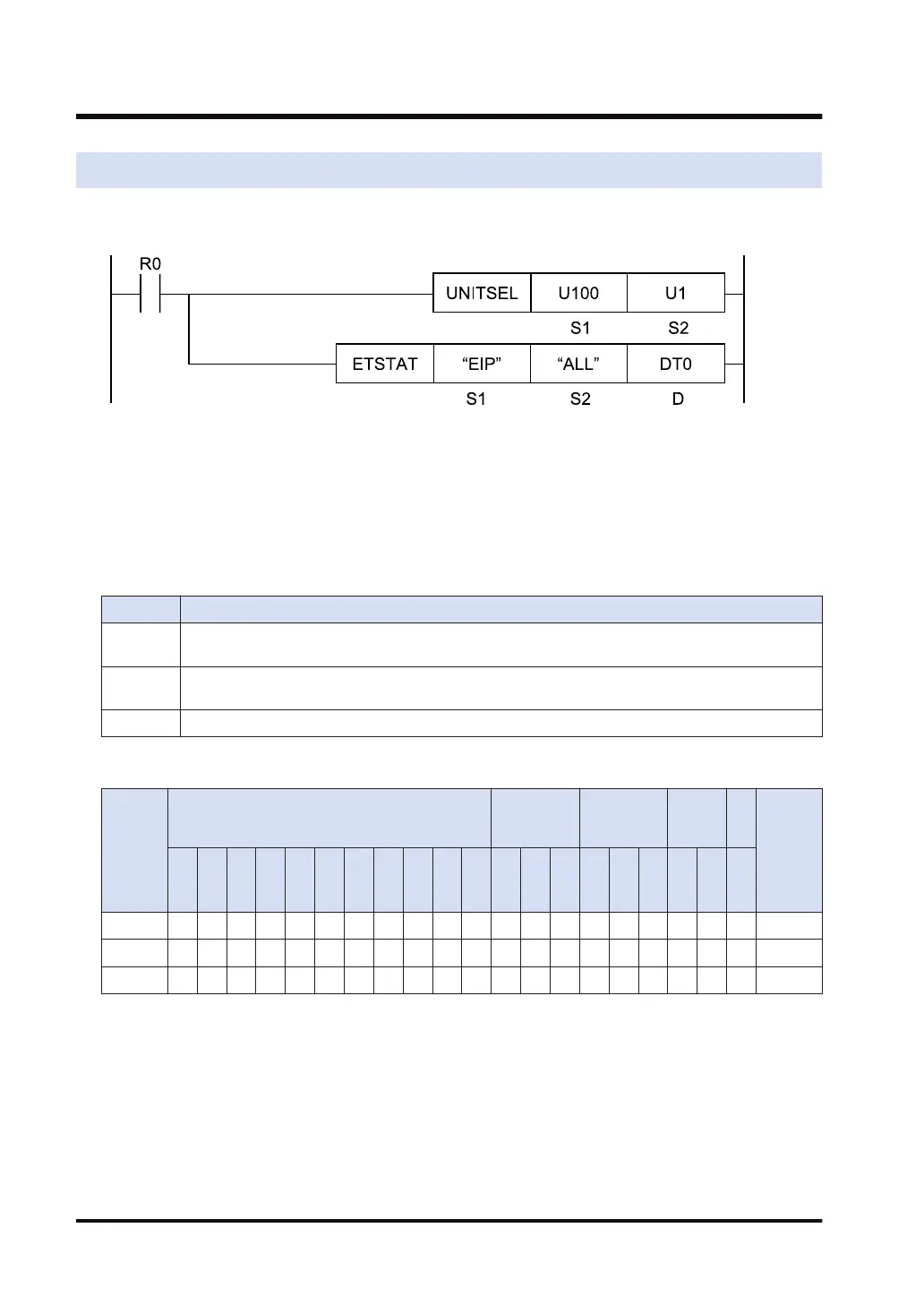

Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction.
(Note 2) By copying and pasting the following text in the instruction list box of FPWIN GR7, the operand part of
the above program can be input.
ETSTAT "EIP" "ALL" DT0
■
List of operands
Operand Description
S1
Starting address of the device area that stores the string data that indicates a read type, or a
character constant.
S2
Starting address of the device area that stores the string data that indicates a target to be read, or a
character constant.
D Specify the starting address of the device area that stores the read information.
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ●
■
Processing
● Reads the parameter information or status information specified by [S1] and [S2], and stores
it in the area starting with [D].
● The number of words in the storage area starting with [D] varies according to the type of read
data and the target.
17.28 ETSTAT (Acquiring EtherNet/IP Information)
17-142 WUME-FP7CPUPGR-12
