Panasonic FP7 Series Command Reference Manual

3.10 ORS (OR Stack)
■

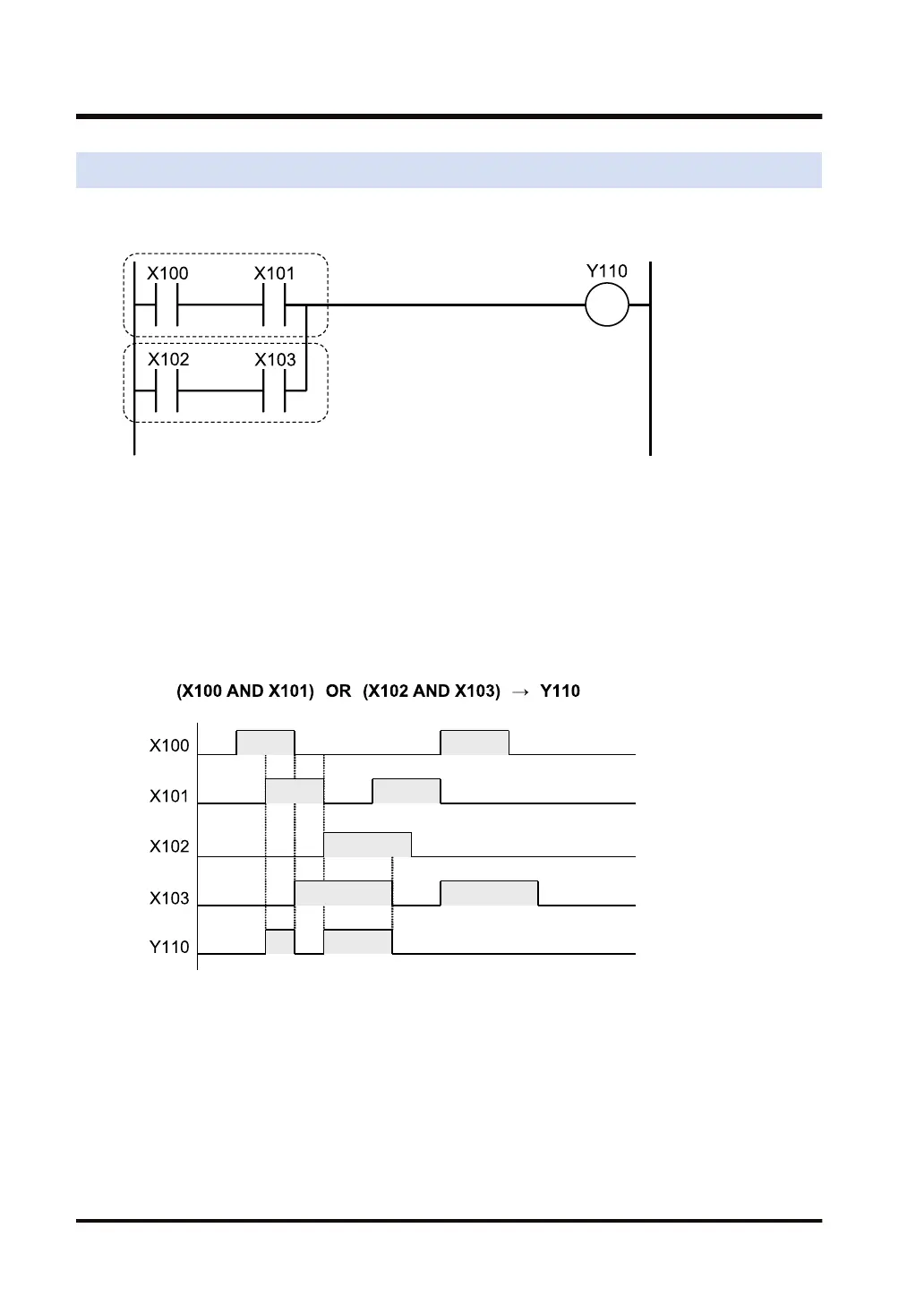

Ladder diagram
■
Outline of operation
● Serially connected blocks are connected in parallel.
● Each block should start with the ST instruction.
■
Operation Example
In the above ladder diagram, when X100 and X101 are ON or X102 and X103 are ON, the
signal is output to Y110.
■
When blocks are consecutive
● When blocks are consecutive, consider a block division as follows.
3.10 ORS (OR Stack)
3-20 WUME-FP7CPUPGR-12
