Panasonic FP7 Series Command Reference Manual

17.5 pPINGREQ (PING Request)
■

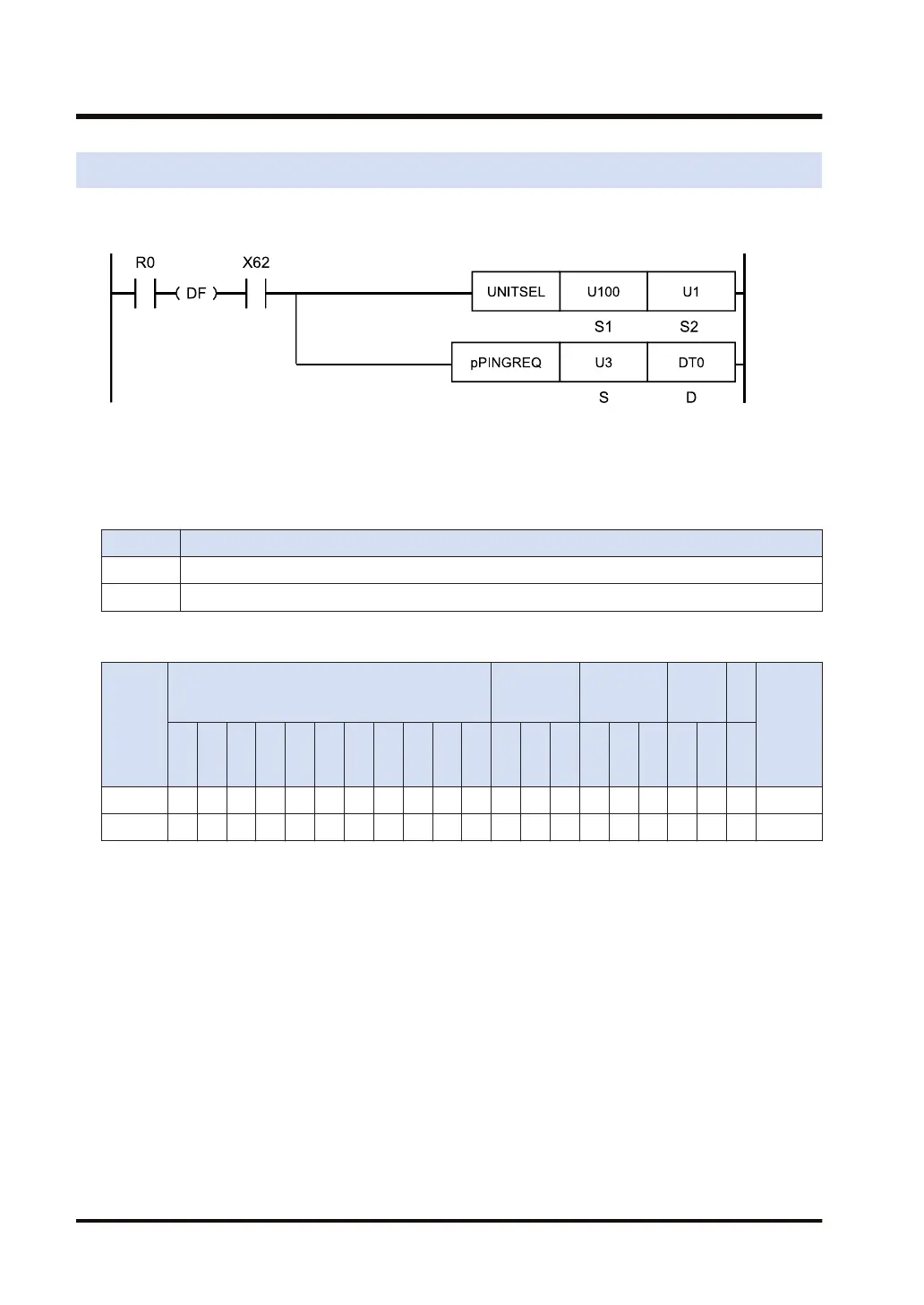

Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction.
■
List of operands
Operand Description
S Number of requests to send PING (Available range: 1 to 10 times)
D Starting address of the device area that stores the results of the PING requests
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ●
■
Outline of operation
● This instruction performs a PING send request to the partner unit IP address of a specified
connection for the number of times that is specified by [S].
● This instruction is used for checking the operation status of a communication relay device.
● This instruction is dedicated to ET-LAN.
■
Processing
● The PING request results are stored in the area that starts with [D].
● The timeout period for one PING response is one second (fixed).
● When the Ethernet task is initialized during a PING request, zero is set to all the areas in
which the results are stored ([D]).
● The size of sent/received data is 56 bytes (fixed).
17.5 pPINGREQ (PING Request)
17-28 WUME-FP7CPUPGR-12
